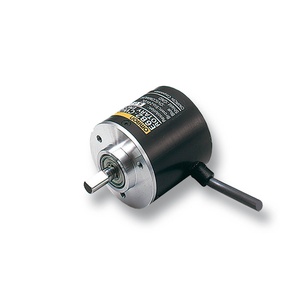

E6B2-CWZ6C 1200P/R 2M: Omron 1200PPR Incremental Encoder
Technical Specifications of Omron 1200PPR Incremental Encoder E6B2-CWZ6C 1200P/R 2M:
| Spec | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 1200 P/R |
| Output phases | Phase A, B and Z |
| Control output | NPN open collector |
| Connection method | Pre-wired models (Cable length: 2 m) |
Omron 1200PPR Incremental Encoder E6B2-CWZ6C 1200P/R 2M Technical Specifications:
| Specification | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 1200 P/R |
| Output phases | Phase A, B and Z |
| Control output | NPN open collector |
| Connection method | Pre-wired models (Cable length: 2 m) |
| Diameter | 40 mm dia. |
| Power supply voltage | 5 to 12 VDC (-5% to +10%) Ripple (p-p) 5% max. |
| Current consumption | 80 mA max. |
| Inrush current | Approx. 9 A (0.3 ms) |
| Max. response frequency | 100 kHz |
| Ambient temperature | Operating: -10 to 70 ℃ (with no icing) Storage: -25 to 85 ℃ (with no icing) |
| Degree of protection | IEC: IP50 |
| Material | Case: ABS |
| Weight | -- |
| Accessories | Instruction manual, Couplings, Hex-head spanner |
The Omron 1200PPR Incremental Encoder E6B2-CWZ6C 1200P/R 2M is a reliable solution for precise motion control and positioning. With a resolution of 1200 pulses per revolution (PPR), it ensures high accuracy for industrial applications. This compact encoder features a 40 mm diameter, operates on a 5 to 24 VDC power supply, and consumes up to 80 mA. Equipped with A, B, and Z output phases and an NPN open collector, it delivers seamless performance. The encoder can handle a maximum response frequency of 100 kHz, making it ideal for demanding automation tasks.
Whether you're searching for an Omron 1200PPR Incremental Encoder or the E6B2-CWZ6C 1200P/R 2M, this model offers reliable performance and easy installation with its 2-meter pre-wired cable. For the best pricing and dependable solutions, IndMALL Automation is your trusted choice.
