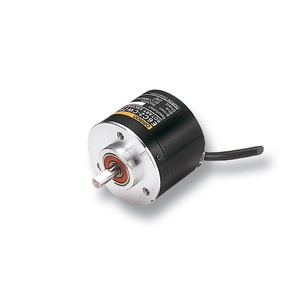

E6C2-CWZ1X 1800P/R 2M: Omron High PPR Encoder
Technical Specifications of Omron High PPR Encoder E6C2-CWZ1X 1800P/R 2M:
| Spec | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 1800 P/R |
| Output phases | A, -A, B, -B, Z and -Z |
| Control output | Line driver output |
| Connection method | Pre-wired models (Cable length: 2 m) |
Omron High PPR Encoder E6C2-CWZ1X 1800P/R 2M Technical Specifications:
| Specification | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 1800 P/R |
| Output phases | A, -A, B, -B, Z and -Z |
| Control output | Line driver output |
| Connection method | Pre-wired models (Cable length: 2 m) |
| Diameter | 50 mm dia. |
| Power supply voltage | 5 VDC±5% ripple (p-p) 5% max. |
| Current consumption | 160 mA max. |
| Inrush current | Approx. 9 A (0.3 ms) |
| Max. response frequency | 100 kHz |
| Ambient temperature | Operating: -10 to 70 ℃ (with no icing) Storage: -25 to 85 ℃ (with no icing) |
| Degree of protection | IEC: IP64 |
| Material | Case: Zinc alloy |
| Weight | Package: Approx. 400 g |
| Accessories | Instruction manual |
Ask for the Pricing of Omron High PPR Encoder, E6C2-CWZ1X 1800P/R 2M at unbeatable prices. Detailed Specifications of E6C2-CWZ1X 1800P/R 2M feature Incremental Shaft model, 1800 P/R, A, -A, B, -B, Z and -Z & Line driver output. Moreover, it features 50 mm dia., 160 mA max. & 100 kHz. Now's the Time to Secure a Quote for your requirement of Omron High PPR Encoder. We're committed to offering more favorable pricing and more responsive support than other Traders.
