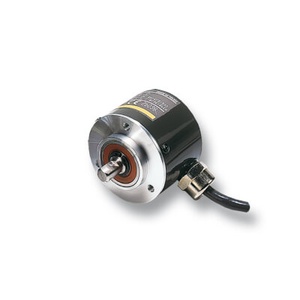

E6C3-AG5B 360P/R 1M: Omron Precise Measurement Encoder
Technical Specifications of Omron Precise Measurement Encoder E6C3-AG5B 360P/R 1M:
| Spec | Value |
|---|---|
| Encoding Method | Absolute Shaft model |
| Resolution | 360 P/R |
| Output Code | Gray code |
| Control Output | PNP open collector |
| Connection Method | Pre-wired models (Cable length: 1 m) |
Omron Precise Measurement Encoder E6C3-AG5B 360P/R 1M Technical Specifications:
| Specification | Value |
|---|---|
| Encoding Method | Absolute Shaft model |
| Resolution | 360 P/R |
| Output code | Gray code |
| Control output | PNP open collector |
| Connection method | Pre-wired models (Cable length: 1 m) |
| Diameter | 50 mm dia. |
| Power supply voltage | 12 to 24 VDC (-10% to +15%) Ripple (p-p) 5% max. |
| Current consumption | 70 mA max. |
| Inrush current | Approx. 6 A (0.8 ms) |
| Logic | Positive logic (high = 1, low = 0) |
| Ambient temperature | Operating: -10 to 70 ℃ (with no icing)Storage: -25 to 85 ℃ (with no icing) |
| Degree of protection | IEC: IP65 |
| Material | Case: Aluminum |
| Weight | Package: Approx. 300 g |
| Accessories | Instruction manual |
The Omron E6C3-AG5B 360P/R 1M encoder is a high-precision Omron Precise Measurement Encoder designed for applications that require accurate and reliable performance. It features a resolution of 360 pulses per revolution (PPR), ensuring smooth and precise operation in industrial environments. This absolute shaft encoder operates on a PNP open collector output with positive logic (high = 1, low = 0), making it compatible with various control systems. With a 50 mm diameter and a compact design, it’s easy to integrate into different setups.
The E6C3-AG5B 360P/R 1M encoder consumes a maximum of 70 mA and supports a Gray code output, making it ideal for applications needing precise measurement. At IndMALL Automation, you can unlock exclusive pricing and benefit from expert support for your requirements of the Omron Precise Measurement Encoder.
