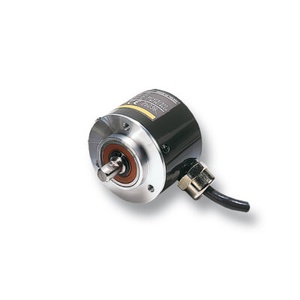

E6C3-AG5C 256P/R 1M: Omron Enhanced Stability Encoder
Technical Specifications of Omron Enhanced Stability Encoder E6C3-AG5C 256P/R 1M:
| Spec | Value |
|---|---|
| Encoding Method | Absolute Shaft model |
| Resolution | 256 P/R |
| Output Code | Gray code |
| Control Output | NPN open collector |
| Connection Method | Pre-wired models (Cable length: 1 m) |
Omron Enhanced Stability Encoder E6C3-AG5C 256P/R 1M Technical Specifications:
| Specification | Value |
|---|---|
| Encoding Method | Absolute Shaft model |
| Resolution | 256 P/R |
| Output code | Gray code |
| Control output | NPN open collector |
| Connection method | Pre-wired models (Cable length: 1 m) |
| Diameter | 50 mm dia. |
| Power supply voltage | 12 to 24 VDC (-10% to +15%) Ripple (p-p) 5% max. |
| Current consumption | 70 mA max. |
| Inrush current | Approx. 6 A (0.8 ms) |
| Logic | Negative logic (high = 0, low = 1) |
| Ambient temperature | Operating: -10 to 70 ℃ (with no icing) Storage: -25 to 85 ℃ (with no icing) |
| Degree of protection | IEC: IP65 |
| Material | Case: Aluminum |
| Weight | Package: Approx. 300 g |
| Accessories | Instruction manual |
Obtain a Quote for Omron Enhanced Stability Encoder, E6C3-AG5C 256P/R 1M at attractive prices. Core System Specifications of E6C3-AG5C 256P/R 1M are Absolute Shaft model, 256 P/R, Gray code & NPN open collector. It functionality Includes 50 mm dia., 70 mA max. & Negative logic (high = 0, low = 1). Elevate Your Project with a Quote for your requirement of Omron Enhanced Stability Encoder. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
