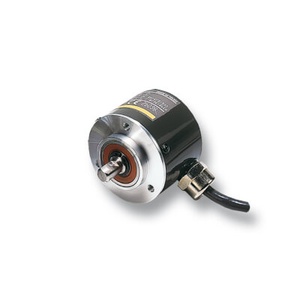

E6C3-AN5B 40P/R 2M: Omron Precision Engineered Encoder
Technical Specifications of Omron Precision Engineered Encoder E6C3-AN5B 40P/R 2M:
| Spec | Value |
|---|---|
| Encoding Method | Absolute Shaft model |
| Resolution | 40 P/R |
| Output Code | Binary code |
| Control Output | PNP open collector |
| Connection Method | Pre-wired models (Cable length: 2 m) |
Omron Precision Engineered Encoder E6C3-AN5B 40P/R 2M Technical Specifications:
| Specification | Value |
|---|---|
| Encoding Method | Absolute Shaft model |
| Resolution | 40 P/R |
| Output code | Binary code |
| Control output | PNP open collector |
| Connection method | Pre-wired models (Cable length: 2 m) |
| Diameter | 50 mm dia. |
| Power supply voltage | 12 to 24 VDC (-10% to +15%) Ripple (p-p) 5% max. |
| Current consumption | 70 mA max. |
| Inrush current | Approx. 6 A (0.8 ms) |
| Logic | Positive logic (high = 1, low = 0) |
| Ambient temperature | Operating: -10 to 70 ℃ (with no icing) Storage: -25 to 85 ℃ (with no icing) |
| Degree of protection | IEC: IP65 |
| Material | Case: Aluminum |
| Weight | -- |
| Accessories | Instruction manual |
IndMALL Automation Offers Omron Precision Engineered Encoder, E6C3-AN5B 40P/R 2M with exclusive offers. Component Specifications of E6C3-AN5B 40P/R 2M features Absolute Shaft model, 40 P/R, Binary code & PNP open collector. It rounds off its features with 50 mm dia., 70 mA max. & Positive logic (high = 1, low = 0). Don't Miss Out on a Quote for your requirement of Omron Precision Engineered Encoder. Our competitive edge: better pricing and support than other Suppliers.
