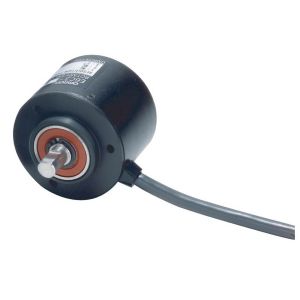

E6C3-CWZ3EH 1500P/R 2M: Omron Precision Control Encoder
Technical Specifications of Omron Precision Control Encoder E6C3-CWZ3EH 1500P/R 2M:
| Spec | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 1500 P/R |
| Output phases | A, B and Z |
| Control output | NPN voltage output |
| Connection method | Pre-wired models (Cable length: 2 m) |
Omron Precision Control Encoder E6C3-CWZ3EH 1500P/R 2M Technical Specifications:
| Specification | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 1500 P/R |
| Output phases | A, B and Z |
| Control output | NPN voltage output |
| Connection method | Pre-wired models (Cable length: 2 m) |
| Diameter | 50 mm dia. |
| Power supply voltage | 5 to 12 VDC (-5% to +10%) Ripple (p-p) 5% max. |
| Current consumption | 100 mA max. |
| Inrush current | Approx. 9 A (0.1 ms) |
| Max. response frequency | 125 kHz (65 kHz when using phase Z reset) |
| Ambient temperature | Operating: -10 to 70 ℃ (with no icing) Storage: -25 to 85 ℃ (with no icing) |
| Degree of protection | IEC: IP65 |
| Material | Case: Aluminum alloy |
| Weight | -- |
| Accessories | Instruction manual |
Reach Us by Email for Omron Precision Control Encoder, E6C3-CWZ3EH 1500P/R 2M at Discounted Rates. Key Technical Features of E6C3-CWZ3EH 1500P/R 2M are Incremental Shaft model, 1500 P/R, A, B and Z & NPN voltage output. Additionally, it provides 50 mm dia., 100 mA max. & 125 kHz (65 kHz when using phase Z reset). Navigate Your Needs with a Quote for your requirement of Omron Precision Control Encoder. Our pricing and support are unrivaled, especially when compared to other Competitors.
