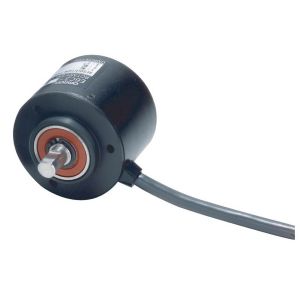

Omron E6C3-CWZ3XH 500P/R 2M: 500 PPR Incremental Shaft Encoder
Technical Specifications of 500 PPR Incremental Shaft Encoder E6C3-CWZ3XH 500P/R 2M:
| Spec | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 500 P/R |
| Output phases | A, -A, B, -B, Z and -Z |
| Control output | Line driver output |
| Connection method | Pre-wired models (Cable length: 2 m) |
Omron 500 PPR Incremental Shaft Encoder E6C3-CWZ3XH 500P/R 2M Technical Specifications:
| Specification | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 500 P/R |
| Output phases | A, -A, B, -B, Z and -Z |
| Control output | Line driver output |
| Connection method | Pre-wired models (Cable length: 2 m) |
| Diameter | 50 mm dia. |
| Power supply voltage | 5 to 12 VDC (-5% to +10%) Ripple (p-p) 5% max. |
| Current consumption | 100 mA max. |
| Inrush current | Approx. 9 A (0.1 ms) |
| Max. response frequency | 125 kHz (65 kHz when using phase Z reset) |
| Ambient temperature | Operating: -10 to 70 ℃ (with no icing) Storage: -25 to 85 ℃ (with no icing) |
| Degree of protection | IEC: IP65 |
| Material | Case: Aluminum alloy |
| Weight | -- |
| Accessories | Instruction manual |
The Omron E6C3-CWZ3XH 500P/R 2M is a high-precision 500 PPR Incremental Shaft Encoder, designed for accurate motion control and positioning in industrial systems. With a resolution of 500 pulses per revolution (PPR), it provides reliable performance in demanding applications. This encoder features a 50 mm diameter, operates at a maximum current of 100 mA, and supports a response frequency of 125 kHz (65 kHz when using phase Z reset). It is equipped with A, -A, B, -B, Z, and -Z output phases, as well as a line driver output, ensuring seamless integration into diverse setups.
For competitive pricing on the E6C3-CWZ3XH 500P/R 2M, trust us to meet your requirements. Whether you’re searching for a dependable 500 PPR incremental shaft encoder, this model delivers consistent accuracy and durability for industrial needs.
