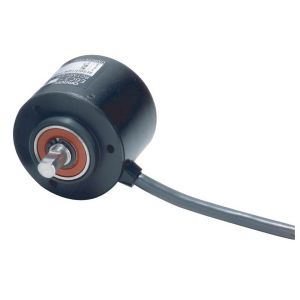

E6C3-CWZ3XH 600P/R 2M: Omron Durable Precision Encoder
Technical Specifications of Omron Durable Precision Encoder E6C3-CWZ3XH 600P/R 2M:
| Spec | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 600 P/R |
| Output phases | A, -A, B, -B, Z and -Z |
| Control output | Line driver output |
| Connection method | Pre-wired models (Cable length: 2 m) |
Omron Durable Precision Encoder E6C3-CWZ3XH 600P/R 2M Technical Specifications:
| Specification | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 600 P/R |
| Output phases | A, -A, B, -B, Z and -Z |
| Control output | Line driver output |
| Connection method | Pre-wired models (Cable length: 2 m) |
| Diameter | 50 mm dia. |
| Power supply voltage | 5 to 12 VDC (-5% to +10%) Ripple (p-p) 5% max. |
| Current consumption | 100 mA max. |
| Inrush current | Approx. 9 A (0.1 ms) |
| Max. response frequency | 125 kHz (65 kHz when using phase Z reset) |
| Ambient temperature | Operating: -10 to 70 ℃ (with no icing) Storage: -25 to 85 ℃ (with no icing) |
| Degree of protection | IEC: IP65 |
| Material | Case: Aluminum alloy |
| Weight | -- |
| Accessories | Instruction manual |
Call us for Omron Durable Precision Encoder, E6C3-CWZ3XH 600P/R 2M at competitive rates. Technical Attributes of E6C3-CWZ3XH 600P/R 2M are Incremental Shaft model, 600 P/R, A, -A, B, -B, Z and -Z & Line driver output. And It Delivers 50 mm dia., 100 mA max. & 125 kHz (65 kHz when using phase Z reset). Unlock Exclusive Pricing with a Quote for your requirement of Omron Durable Precision Encoder. Trust in our ability to provide more advantageous pricing and dedicated support beyond other Dealers.
