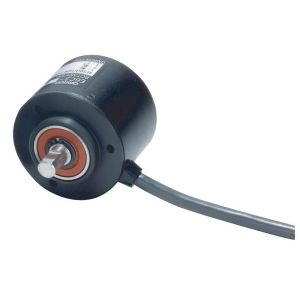

E6C3-CWZ3XH 720P/R 1M: Omron 720 PPR Incremental Encoder
Technical Specifications of Omron 720 PPR Incremental Encoder E6C3-CWZ3XH 720P/R 1M:
| Spec | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 720 P/R |
| Output phases | A, -A, B, -B, Z and -Z |
| Control output | Line driver output |
| Connection method | Pre-wired models (Cable length: 1 m) |
Omron 720 PPR Incremental Encoder E6C3-CWZ3XH 720P/R 1M Technical Specifications:
| Specification | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 720 P/R |
| Output phases | A, -A, B, -B, Z and -Z |
| Control output | Line driver output |
| Connection method | Pre-wired models (Cable length: 1 m) |
| Diameter | 50 mm dia. |
| Power supply voltage | 5 to 12 VDC (-5% to +10%) Ripple (p-p) 5% max. |
| Current consumption | 100 mA max. |
| Inrush current | Approx. 9 A (0.1 ms) |
| Max. response frequency | 125 kHz (65 kHz when using phase Z reset) |
| Ambient temperature | Operating: -10 to 70 ℃ (with no icing) Storage: -25 to 85 ℃ (with no icing) |
| Degree of protection | IEC: IP65 |
| Material | Case: Aluminum alloy |
| Weight | Package: Approx. 300 g |
| Accessories | Instruction manual |
The Omron E6C3-CWZ3XH 720P/R 1M is a high-precision incremental rotary encoder designed for various industrial applications. With a resolution of 720 pulses per revolution (PPR), it delivers accurate positioning and motion control. This incremental shaft model features A, -A, B, -B, Z, and -Z output phases, along with a line driver output for reliable signal transmission. Its compact 50 mm diameter design, 125 kHz response frequency (or 65 kHz with phase Z reset), and low current consumption of 100 mA max make it both efficient and versatile.
Whether you need a 720P/R encoder for automation or other uses, the E6C3-CWZ3XH 720P/R 1M offers exceptional value. IndMALL Automation provides competitive pricing for the Omron 720 PPR Incremental Encoder and ensures quick support to meet your needs.
