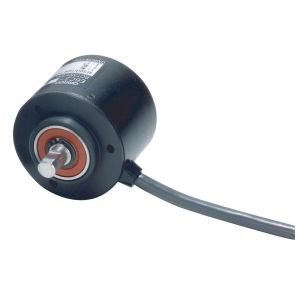

E6C3-CWZ5GH 200P/R 1M: Omron Pre-Wired Flexible Mounting Encoder
Technical Specifications of Omron Pre-Wired Flexible Mounting Encoder E6C3-CWZ5GH 200P/R 1M:
| Spec | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 200 P/R |
| Output phases | A, B and Z |
| Control output | Complementary output |
| Connection method | Pre-wired models (Cable length: 1 m) |
Omron Pre-Wired Flexible Mounting Encoder E6C3-CWZ5GH 200P/R 1M Technical Specifications:
| Specification | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 200 P/R |
| Output phases | A, B and Z |
| Control output | Complementary output |
| Connection method | Pre-wired models (Cable length: 1 m) |
| Diameter | 50 mm dia. |
| Power supply voltage | 12 to 24 VDC (-10% to +15%) Ripple (p-p) 5% max. |
| Current consumption | 100 mA max. |
| Inrush current | Approx. 9 A (0.1 ms) |
| Max. response frequency | 125 kHz (65 kHz when using phase Z reset) |
| Ambient temperature | Operating: -10 to 70 ℃ (with no icing) Storage: -25 to 85 ℃ (with no icing) |
| Degree of protection | IEC: IP65 |
| Material | Case: Aluminum alloy |
| Weight | Package: Approx. 300 g |
| Accessories | Instruction manual |
Get A Quote for Omron Pre-Wired Flexible Mounting Encoder, E6C3-CWZ5GH 200P/R 1M at the best price. Here are the brief Technical Specifications of E6C3-CWZ5GH 200P/R 1M: Incremental Shaft model, 200 P/R, A, B and Z & Complementary output. And it offers 100 mA max., 50 mm dia. & 125 kHz (65 kHz when using phase Z reset). It's Time to get a Quote for your requirement of Omron Pre-Wired Flexible Mounting Encoder. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
