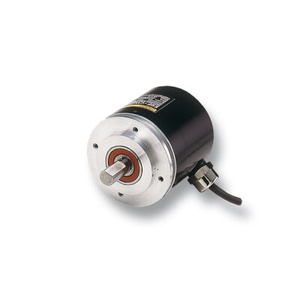

E6F-CWZ5G 600P/R 2M: Omron Enhanced Stability Encoder
Technical Specifications of Omron Enhanced Stability Encoder E6F-CWZ5G 600P/R 2M:
| Spec | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 600 P/R |
| Output phases | A, B and Z |
| Control output | Complementary output |
| Connection method | Pre-wired models (Cable length: 2 m) |
Omron Enhanced Stability Encoder E6F-CWZ5G 600P/R 2M Technical Specifications:
| Specification | Value |
|---|---|
| Encoding Method | Incremental Shaft model |
| Resolution | 600 P/R |
| Output phases | A, B and Z |
| Control output | Complementary output |
| Connection method | Pre-wired models (Cable length: 2 m) |
| Diameter | 60 mm dia. |
| Power supply voltage | 12 to 24 VDC (-10% to +15%) Ripple (p-p) 5% max. |
| Current consumption | 100 mA max. |
| Inrush current | Approx. 9 A (5 µs) |
| Max. response frequency | 83 kHz |
| Ambient temperature | Operating: -10 to 70 ℃ (with no icing) Storage: -25 to 85 ℃ (with no icing) |
| Degree of protection | IEC: IP65 |
| Material | Case: Zinc alloy |
| Weight | Package: Approx. 400 g |
| Accessories | Instruction manual |
Ask for the Pricing of Omron Enhanced Stability Encoder, E6F-CWZ5G 600P/R 2M at unbeatable prices. Detailed Specifications of E6F-CWZ5G 600P/R 2M feature Incremental Shaft model, 600 P/R, A, B and Z & Complementary output. Moreover, it features 60 mm dia., 100 mA max. & 83 kHz. Now's the Time to Secure a Quote for your requirement of Omron Enhanced Stability Encoder. We're committed to offering more favorable pricing and more responsive support than other Traders.
