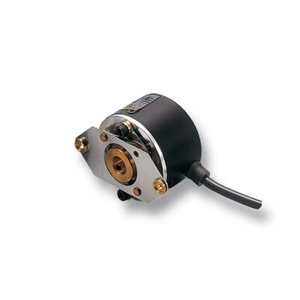

E6H-CWZ6C 300P/R 0.5M: Omron Rotary Encoder 300 PPR
Technical Specifications of Omron Rotary Encoder 300 PPR E6H-CWZ6C 300P/R 0.5M:
| Spec | Value |
|---|---|
| Encoding Method | Incremental Hollow-shaft model |
| Resolution | 300 P/R |
| Output phases | A, B and Z |
| Control output | Open collector |
| Connection method | Pre-wired models (Cable length: 0.5 m) |
Omron Rotary Encoder 300 PPR E6H-CWZ6C 300P/R 0.5M Technical Specifications:
| Specification | Value |
|---|---|
| Encoding Method | Incremental Hollow-shaft model |
| Resolution | 300 P/R |
| Output phases | A, B and Z |
| Control output | Open collector |
| Connection method | Pre-wired models (Cable length: 0.5 m) |
| Diameter | 40 mm dia. |
| Power supply voltage | 5 to 24 VDC (-5% to +15%) Ripple (p-p) 5% max. |
| Current consumption | 100 mA max. |
| Inrush current | Approx. 6 A (0.3 ms) |
| Max. response frequency | 100 kHz |
| Ambient temperature | Operating: -10 to 70 ℃ (90% RH max.) (with no icing) Storage: -30 to 85 ℃ (with no icing) |
| Degree of protection | IEC: IP50 |
| Material | Case: Iron |
| Weight | Package: Approx. 120 g |
| Accessories | Instruction manual |
The Omron Rotary Encoder 300 PPR, model E6H-CWZ6C 300P/R 0.5M, is a highly reliable incremental encoder ideal for precision-based applications. With a resolution of 300 pulses per revolution (PPR), this hollow-shaft encoder ensures accurate performance in industrial automation. It features A, B, and Z output phases with an open collector configuration for smooth signal processing. Compact in design, the encoder has a 40 mm diameter and a 0.5-meter pre-wired cable, making it easy to install in various systems.
This E6H-CWZ6C 300P/R 0.5M operates on a power supply of 5 to 24 VDC and consumes a maximum current of 100 mA. Its response frequency reaches up to 100 kHz, ensuring reliable operation. For the best deals on the Omron Rotary Encoder 300 PPR, IndMALL Automation offers unmatched pricing and support.
