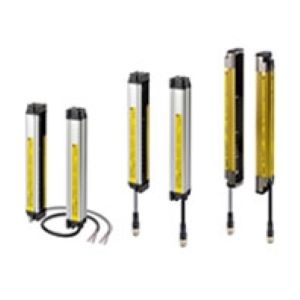

F3SJ-A0395N30: Omron 395mm NPN Arm Protection Light Curtain
Technical Specifications of Omron F3SJ-A0395N30
| Spec | Value |
|---|---|
| Lens Diameter | 5 mm |
| Operating range | 0.2 to 9 m |
| Output | NPN |
| Connection Method | M12 Connector 8-pin |
Omron 395mm NPN Arm Protection Light Curtain F3SJ-A0395N30 Technical Specifications:
| Specification | Value |
|---|---|
| Application | Hand/arm protection |
| Detection capability | Opaque objects |
| Sensing Object | 30 mm dia. |
| Beam Gap | 25 mm |
| Number of Beams | 16 axis beam |
| Protective Height | 395 mm |
| Output | NPN |
| Lens Diameter | 5 mm |
| Operating Range | 0.2 to 9 m |
| Response time (Normal mode) ON→OFF | 10 ms |
| Response time (Normal mode) OFF→ON | 40 ms |
| Connection method | M12 Connector 8-pin |
| Light source | Infrared LED (870 nm) |
| Startup waiting time | 2 s max. |
| Power Supply Voltage | 24 VDC±20% Ripple 10% max. |
| Current Consumption | Receiver: 68 mA max.; Emitter: 76 mA max. |
| Control output (OSSD) | Two NPN transistor outputs Load current: 300 mA max. Residual voltage: 2 V max. Capacitive load: 2.2 µF Leakage current: 2 mA max. |
| Auxiliary output (non-safety output) | One NPN transistor output Load current: 300 mA max. Residual voltage: 2 V max. Leakage current: 1 mA max. |
| Protective Circuit | Output short-circuit protection Power supply reverse polarity protection |
| Insulation resistance | 20 MΩ min. (at 500 VDC) |
| Ambient temperature | Operating: -10 to 55°C (no icing), Storage: -30 to 70°C |
| Ambient humidity | Operating: 35% to 85% (no condensation), Storage: 35% to 95% |
| Ambient illuminance | Incandescent lamp: 3000 lx max. Sunlight: 10000 lx max. |
| Degree of Protection | IP65 (IEC 60529) |
| Materials | Case: Aluminum, Zinc diecast Front window: PMMA resin (acrylic) Caps: ABS resin Cable: Oil-resistant PVC |
| Weight | Main Unit: Approx. 0.8 kg Package: Approx. 1.7 kg |
Mail us for your needs in Omron 395mm NPN Arm Protection Light Curtain F3SJ-A0395N30 with budget-friendly prices. Detailed Specifications of F3SJ-A0395N30 feature Hand/arm protection, Opaque objects, 30 mm dia. & 25 mm beam gap, 16 axis beam, 395 mm protective height, NPN Output, 5 mm lens diameter, 0.2 to 9 m Operating range, M12 Connector 8-pin, Infrared LED (870 nm) light source, power supply 24 VDC±20% Ripple 10% max., Current Consumption Receiver: 68 mA max.; Emitter: 76 mA max. Now's the Time to Secure a Quote for your requirement of Omron 395mm NPN Arm Protection Light Curtain. We're committed to offering more favorable pricing and more responsive support than other Traders.
