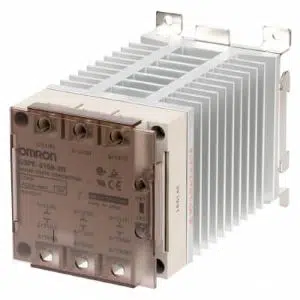

G3PE-515B DC12-24:Omron SSR Output Current 15 A
The Technical specifications of Omron SSR Output Current 15 A G3PE-515B DC12-24:
- Product classification: For single-phase heater
- Zero cross function: Equipped
- Operating indicator: Equipped (Yellow)
- Rated voltage: 12 to 24 VDC
- Rated load voltage: 200 to 480 VAC (50/60 Hz)
- Load current: 0.1 to 15 A (at 40 ℃)
- Terminal structure: Screw terminal
Omron SSR Output Current 15 A G3PE-515B DC12-24 Technical Specifications:
| Product classification | For single-phase Heater |
| Number of phases | single-phase |
| Number of elements | 3 |
| Isolation method | Phototriac |
| Zero cross function | Equipped |
| Operating indicator | Equipped (Yellow) |
| Terminal structure | Screw terminal |
| Mounting | DIN track mounting,Screw mounting |
| Input Rated Voltage | 12 to 24 VDC |
| Input Operating voltage range | 9.6 to 30 VDC |
| Input current | 7 mA max. |
| Input Operate voltage | 9.6 VDC max. |
| Input Release voltage | 1 VDC min. |
| Output Rated load voltage | 200 to 480 VAC |
| Output Load voltage range | 180 to 528 VAC |
| Output Minimum load current | 0.2 VDC |
| Output Load Current | 0.5 to 15A (at 25 ℃) |
| Output Inrush current resistivity | 150 A (60 Hz 1 cycle) |
| Operate time | 1/2 cycle of load power source + 1 ms max. |
| Release time | 1/2 cycle of load power source + 1 ms max. |
| Output ON voltage drop | 1.8 V max. (RMS) |
| Leakage current | 20 mA max. (at 200 VAC) |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength | 2500 VAC 50/60 Hz 1 min |
| Vibration resistance | 10 to 55 to 10 Hz, 0.175 mm single amplitude (0.75 mm double amplitude) |
| Shock resistance | 294 m/s2 (DIN Track mounting) |
| Ambient temperature (Operating) | -30 to 80 ℃ (with no freezing or condensation) |
| Ambient temperature (Storage) | -30 to 100 ℃ (with no freezing or condensation) |
| Ambient humidity (Operating) | 45 to 85% RH |
| Weight | Approx. 240 g |
Are you looking for a dependable Omron SSR Output Current 15 A G3PE-515B DC12-24 heater application? This SSR relay comes equipped with a zero-cross function for precise switching and features a yellow operating indicator for clear status indication. With a rated voltage of 12 to 24 VDC, a rated load voltage ranging from 100 to 240 VAC, and a robust 15 A load current capacity at 40 ℃, this relay, designed with a screw terminal structure, ensures reliable performance. Explore the best rates at IndMALL Automation for hassle-free purchasing.
