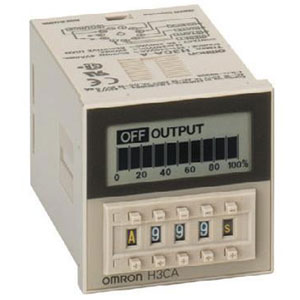

H3CA-8 AC100/110/120: Omron 8-Pin Round Socket Timer
Technical Specifications of Omron 8-Pin Round Socket Timer H3CA-8 AC100/110/120:
| Spec | Value |
|---|---|
| Rated Supply Voltage | 100/110/120 VAC (50/60 Hz) |
| Time ranges（Number of ranges） | 7 |
| Input Method | No-voltage input (open and short-circuit) |
| Output Mode | A: Power ON delay |
Omron 8-Pin Round Socket Timer H3CA-8 AC100/110/120 Technical Specifications:
| Specification | Value |
|---|---|
| Rated supply voltage | 100/110/120 VAC (50/60 Hz) |
| Operating voltage range | 85 to 110% of rated supply voltage |
| Power consumption | Approx. 10 VA/Approx. 1 W |
| Time ranges（Number of ranges） | 7 |
| Input method | No-voltage input (open and short-circuit) |
| Output modes | A: Power ON delay |
| Control output (Contact output） | Time-limit contact: DPDT Resistive load: 3 A at 250 VAC Minimum applicable load: 10 mA at 5 VDC (failure level: P Reference value) |
| Reset system | Self-reset |
| Power reset | Reset time: 0.1 s max. |
| Display method | LCD 3 digit |
| Ambient temperature (Operating) | -10 to 55 ℃ (with no icing) |
| Ambient humidity (Operating) | 35 to 85% |
| Accuracy of operating time | ±0.3% ±0.05 s (The values are based on the set value.) |
| Setting error | ±0.5% ±0.05 s (The values are based on the set value.) |
| Influence of voltage | ±0.3% ±0.05 s (The values are based on the set value.) |
| Influence of temperature | ±0.3% ±0.05 s (The values are based on the set value.) |
| 100 MΩ min. (at 500 VDC) | Insulation resistance |
| Time ranges | 0.1 to 99.9 s 1 to 999 s 0.1 to 99.9 min 1 to 999 min 0.1 to 99.9 h 1 to 999 h 10 to 9990 h |
| Dielectric strength | Between current carrying metal parts and non-current carrying metal parts: 2000 VAC 50/60 Hz 1 min Between control output terminals and operating circuit: 2000 VAC 50/60 Hz 1 min Between non-continuous contacts: 1000 VAC 50/60 Hz 1 min |
| Impulse withstand voltage | Between power terminals: 3 kV Between current carrying terminals and exposed non-current carrying metal parts: 4.5 kV |
| Vibration resistance | Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 1 hour Malfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min |
| Shock resistance | Destruction: 1,000 m/s2, 3 times each in 6 directions Malfunction: 100 m/s2, 3 times each in 6 directions |
| Life expectancy (relay output) | Electrical: 100,000 operations min. (3 A at 250 VAC resistive load at 1800 operations/h) Mechanical: 10 million operations min. (under no load at 1,800 operations/h) |
| Degree of protection | IP40 |
| Mounting method | Flush mounting / Surface mounting |
| External connection method | 8-pin round socket |
| Applicable socket | P2CF-08, P2CF-08-E, P3G-08, PL08 |
| Accessory (sold separately) | Soft Cover: Y92A-48D Hard Cover: Y92A-48B Flush mounting adapter: Y92F-30/Y92F-70/Y92F-71 |
Call us for Omron 8-Pin Round Socket Timer, H3CA-8 AC100/110/120 at the best rates. Technical Attributes of H3CA-8 AC100/110/120 are 7 85 to 110% of rated supply voltage Approx. 10 VA/Approx. 1 W. And It Delivers No-voltage input (open and short-circuit), A: Power ON delay,Time-limit contact: DPDT
Resistive load: 3 A at 250 VAC
Minimum applicable load: 10 mA at 5 VDC (failure level: P Reference value).Unlock Exclusive Pricing with a Quote for your requirement of Omron 8-Pin Round Socket Timer. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
