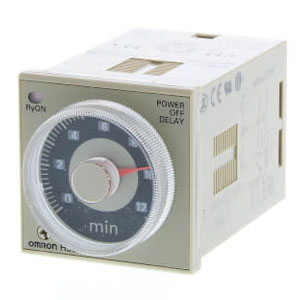

H3CR-H8L AC200-240 M: Omron 200-240V Memory Timer
Technical Specifications of Omron 200-240V Memory Timer H3CR-H8L AC200-240 M:
| Spec | Value |
|---|---|
| Rated power supply voltage | 200/220/240 VAC 50/60 Hz |
| Allowable voltage variable range | 85 to 110% of the power supply voltage |
| Power consumption | Approx. 0.35 VA (at 240 VAC) Approx. 0.3 W (at 240 VAC) |
| Operation start voltage | 30% max. of rated supply voltage |
Omron 200-240V Memory Timer H3CR-H8L AC200-240 M Technical Specifications:
| Specification | Value |
|---|---|
| Rated power supply voltage | 200/220/240 VAC 50/60 Hz |
| Allowable voltage variable range | 85 to 110% of the power supply voltage |
| Power Consumption | Approx. 0.35 VA (at 240 VAC) Approx. 0.3 W (at 240 VAC) |
| Operation Start Voltage | 30% max. of rated supply voltage |
| Input Signals | - |
| Input Method | - |
| No Voltage Input | - |
| Number of Times Ranges | 4 |
| Opeation Mode | Power OFF-delay |
| Control Output Type | Time-limit: DPDT |
| Control output (Contact output) | Resistive load: 250 VAC 5 A (cosφ=1)/5 A at 30 VDC Minimum applicable load: 10 mA at 5 VDC (failure level: P Reference value) |
| Operating resetting | Instantaneous operation/Time-limit reset |
| Ambient temperature range | Operating: -10 to 55 ℃ (with no icing) Storage: -25 to 65 ℃ (with no icing) |
| Ambient humidity range | Operating: 35 to 85% |
| Accuracy of operating time | ±0.2% FS max |
| Setting error | ±5% FS ±50 ms max. |
| Influence of voltage | ±0.2% FS max |
| Influence of temperature | ±1% FS max |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength | Between current carrying metal parts and non-current carrying metal parts: 2,000 VAC 50/60 Hz 1 min Between control output terminals and operating circuit: 2,000 VAC 50/60 Hz 1 min Between contacts of different polarity: 2,000 VAC 50/60 Hz 1 min Between non-continuous contacts: 1,000 VAC 50/60 Hz 1 min |
| Impulse withstand voltage | Between power terminals: 5 kV Between current carrying terminals and exposed non-current carrying metal parts: 5 kV |
| Noise immunity | ±1.5 kV (between power terminals) and ±600 V (between input terminals), square-wave noise by noise simulator (pulse width: 100 ns/1 µs, 1-ns rise) |
| Static immunity | Mulfunction: 8 kV, Destruction: 15 kV |
| Vibration resistance | Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 2 h Malfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min |
| Shock resistance | Destruction: 980 m/s2, 3 times each in 6 directions Malfunction: 98 m/s2, 3 times each in 6 directions |
| Life expectancy (relay output) | Electrical: 100,000 operations min. (5 A at 250 VAC, resistive load at 1200 operations/h) Mechanical: 10 million operations min. (under no load at 1,200 operations/h) |
| Degree of protection | IP40 (panel surface) |
| Connecting method | 8-pin round socket |
| Weight | Approx. 120 g |
Talk to Our Engineer for Omron 200-240V Memory Timer, H3CR-H8L AC200-240 M with exclusive offers. Core System Specifications of H3CR-H8L AC200-240 M are Approx. 120 g
, Operating: -10 to 55 ℃ (with no icing)
Storage: -25 to 65 ℃ (with no icing), Instantaneous operation/Time-limit reset, Resistive load: 250 VAC 5 A (cosφ=1)/5 A at 30 VDC
Minimum applicable load: 10 mA at 5 VDC (failure level: P Reference value). And It Comes With Power OFF-delay, 85 to 110% of the power supply voltage, 200/220/240 VAC 50/60 Hz. Don't Miss Out on a Quote for your requirement of Omron 200-240V Memory Timer. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
