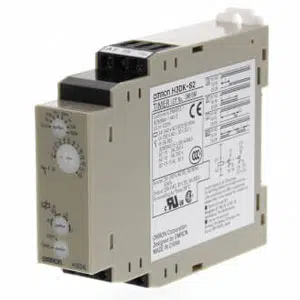

H3DK-S2 AC/DC24-240: Omron 24 to 240 VAC/DC Power Supply Timer
Technical Specifications of Omron 24 to 240 VAC/DC Power Supply Timer H3DK-S2 AC/DC24-240:
| Spec | Value |
|---|---|
| Rated power supply voltage | 24 to 240 VAC 50/60 Hz 24 to 240 VDC Ripple 20% max. |
| Allowable voltage variable range | 85 to 110% of the power supply voltage |
| Voltage Input | - |
| Reset voltage | 10% max. of rated supply voltage |
Omron 24 to 240 VAC/DC Power Supply Timer H3DK-S2 AC/DC24-240 Technical Specifications:
| Specification | Value |
|---|---|
| Rated power supply voltage | 24 to 240 VAC 50/60 Hz 24 to 240 VDC Ripple 20% max. |
| Allowable voltage variable range | 85 to 110% of the power supply voltage |
| Input signals | - |
| Operating resetting | - |
| Input method | - |
| Star-delta transfer time | - |
| Voltage input | - |
| Power consumption | Approx. 6.6 VA (at 240 VAC) |
| Reset voltage | 10% max. of rated supply voltage |
| Number of time ranges | 8 |
| Operation mode | ON delay, Flicker ON start, Interval, One shot output |
| Control output (Type) | Relay output (DPDT/ Time-limit SPDT and switchable SPDT (Time-limit/Instantaneous)) |
| Control output (Contact output) | Resistive load: 250 VAC 5 A (cosφ=1)/5 A at 30 VDC/0.5 A max. at 125 VDC Minimum applicable load: 10 mA at 5 VDC (failure level: P Reference value) |
| Ambient temperature range | Operating: -20 to 55 ℃ (with no icing) Storage: -40 to 70 ℃ (with no icing) |
| Ambient humidity range | Operating: 25 to 85% |
| Accuracy of operating time | ±1% FS max. (±1% ±10 ms in a range of 1.2 s) |
| Setting error | ±10% FS ±0.05 s max. |
| Influence of voltage | ±0.5% FS max. (±0.5% ±10 ms in a range of 1.2 s) |
| Influence of temperature | ±2% FS max. (±2% ±10 ms in a range of 1.2 s) |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength | Between current carrying metal parts and non-current carrying metal parts: 2,000 VAC 50/60 Hz 1 min Between control output terminals and operating circuit: 2,000 VAC 50/60 Hz 1 min Between non-continuous contacts: 1,000 VAC 50/60 Hz 1 min |
| Impulse withstand voltage | Between power terminals: 5 kV Between current carrying terminals and exposed non-current carrying metal parts: 5 kV |
| Noise immunity | ±1.5 kV square-wave noise by noise simulator (pulse width: 100 ns/1 µs, 1-ns rise) |
| Static immunity | Mulfunction: 4 kV, Destruction: 8 kV |
| Vibration resistance | Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 2 h Malfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min |
| Shock resistance | Destruction: 1,000 m/s2, 3 times each in 6 directions Malfunction: 100 m/s2, 3 times each in 6 directions |
| Life expectancy (relay output) | Electrical: 100,000 operations min. (5 A at 250 VAC, resistive load at 360 operations/h) Mechanical: 10 million operations min. (under no load at 1,800 operations/h) |
| Degree of protection | IP30 (Terminal Block: IP20) |
| Connecting method | Terminal blocks |
| Accessories | User label |
| Weight | Approx. 120 g |
Mail Us for your needs in Omron 24 to 240 VAC/DC Power Supply Timer, H3DK-S2 AC/DC24-240 with budget-friendly prices. The Main Technical Parameters of H3DK-S2 AC/DC24-240 include Omron 24 to 240 VAC/DC Power Supply Timer H3DK-S2 AC/DC24-240 Technical Specifications:, 24 to 240 VAC 50/60 Hz
24 to 240 VDC Ripple 20% max., 85 to 110% of the power supply voltage, Approx. 6.6 VA (at 240 VAC). Additionally, it provides Relay output (DPDT/ Time-limit SPDT and switchable SPDT (Time-limit/Instantaneous)), ON delay, Flicker ON start, Interval, One shot output, 10% max. of rated supply voltage. Customize Your Experience with a Quote for your requirement of Omron 24 to 240 VAC/DC Power Supply Timer. Experience the difference with our competitive pricing and superior support over other Suppliers.
