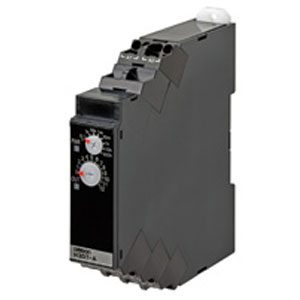

H3DT-HDS AC200-240: Omron Relay Output Timer
Technical Specifications of Omron Relay Output Timer H3DT-HDS AC200-240:
| Spec | Value |
|---|---|
| Rated Power Supply Voltage | 200 to 240 VAC 50/60 Hz |
| Allowable Voltage Variable range | 85% to 110% of rated voltage |
| Input Signals | - |
| Input Method | - |
Omron Relay Output Timer H3DT-HDS AC200-240 Technical Specifications:
| Specification | Value |
|---|---|
| Rated power supply voltage | 200 to 240 VAC 50/60 Hz |
| Allowable voltage variable range | 85% to 110% of rated voltage |
| Input signals | - |
| Input method | - |
| Voltage input | - |
| Power consumption | Approx. 21.6 VA (at 240 VAC) |
| Reset voltage | - |
| Number of time ranges | 2 |
| Operation mode | Power OFF-delay |
| Control output (Type) | Relay output (SPDT) |
| Control output (Contact output) | Resistive load: 250 VAC 5 A (cosφ=1)/5 A at 30 VDC |
| Ambient temperature range | Operating: -20 to 60 ℃ (with no icing) Storage: -40 to 70 ℃ (with no icing) |
| Ambient humidity range | Operating: 25 to 85% |
| Accuracy of operating time | ±1% FS max. (±1% ±10 ms in a range of 1.2 s) |
| Setting error | ±10% FS ±0.05 s max. |
| Influence of voltage | ±0.5% FS max. (±0.5% ±10 ms in a range of 1.2 s) |
| Influence of temperature | ±2% FS max. (±2% ±10 ms in a range of 1.2 s) |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength | Between charged metal part and operating section: 2,900 VAC 50/60 Hz for 1 min Between control output terminals and operating circuit: 2,000 VAC 50/60 Hz 1 min Between non-continuous contacts: 1,000 VAC 50/60 Hz 1 min |
| Impulse withstand voltage | Between power terminals: 5 kV Between conductor terminal and operating section: 7.4 kV |
| Noise immunity | ±1.5 kV square-wave noise by noise simulator (pulse width: 100 ns/1 µs, 1-ns rise) |
| Static immunity | Mulfunction: 4 kV, Destruction: 8 kV |
| Vibration resistance | Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 2 h Malfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min |
| Shock resistance | Destruction: 1,000 m/s2, 3 times each in 6 directions Malfunction: 100 m/s2, 3 times each in 6 directions |
| Life expectancy (relay output) | Electrical: 100,000 operations min. (5 A at 250 VAC, resistive load at 360 operations/h) Mechanical: 10 million operations min. (under no load at 1,800 operations/h) |
| Degree of protection | IP30 (Terminal Block: IP20) |
| Connecting method | Push-In Plus Terminal Block |
| Weight | Approx. 90 g |
IndMALL Automation Offers Omron Relay Output Timer, H3DT-HDS AC200-240 with exclusive offers. Component Specifications of H3DT-HDS AC200-240 features 200 to 240 VAC 50/60 Hz, 85% to 110% of rated voltage, Approx. 21.6 VA (at 240 VAC), 2. It rounds off its features with Relay output (SPDT), Push-In Plus Terminal Block, Power OFF-delay. Don't Miss Out on a Quote for your requirement of Omron Relay Output Timer. Our competitive edge: better pricing and support than other Suppliers.
