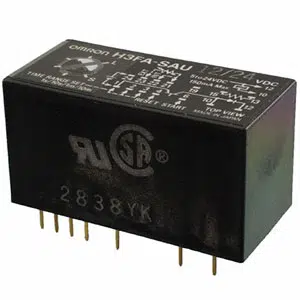

H3FA-SAU DC12/24: Omron Dual DC 10min Solid-State Timer
Technical Specifications of Omron Dual DC 10min Solid-State Timer H3FA-SAU DC12/24:
| Spec | Value |
|---|---|
| Rated Power Supply Voltage | 12/24 VDC Ripple 20% max. |
| Number of Time Ranges | 4 |
| Operation Mode | One shot output, Signal OFF delay |
| Control Output Type | Transistor output |
Omron Dual DC 10min Solid-State Timer H3FA-SAU DC12/24 Technical Specifications:
| Specification | Value |
|---|---|
| Rated power supply voltage | 12/24 VDC Ripple 20% max. |
| Allowable voltage variable range | 85 to 110% of the power supply voltage |
| Power consumption | Approx. 100 mW (at 12 VDC)/Approx. 240 mW (at 24 VDC) |
| Number of time ranges | 4 |
| Operation mode | One shot output, Signal OFF delay |
| Control output (Type) | Transistor output |
| Control output (Contact output) | 150 mA max. at 30 VDC, ON residual voltage: 1.0 V max. |
| Operating resetting | Instantaneous operation, time-limit resetting/external resetting |
| Ambient temperature range | Operating: -10 to 55 ℃ (with no icing) Storage: -25 to 65 ℃ (with no icing) |
| Ambient humidity range | Operating: 35 to 85% |
| Accuracy of operating time | ±0.5% FS max. (±0.5% ±10 ms in a range of 1 s) |
| Setting error | 0 to +30% FS max. (at 20 ℃, rated voltage) |
| Reset time | 10 ms max. |
| Influence of voltage | ±1% FS max. |
| Influence of temperature | ±5% FS max. (±5% ±10 ms in a range of 1 s) |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength | Between control output terminals and operating circuit: 1,500 VAC 50/60 Hz 1 min Between non-continuous contacts: 1,000 VAC 50/60 Hz 1 min |
| Vibration resistance | Destruction: 10 to 55 Hz, 0.375 mm single amplitude each in 3 directions for 2 h Malfunction: 10 to 55 Hz, 0.25 mm single amplitude each in 3 directions for 10 min |
| Shock resistance | Destruction: 1,000 m/s2, 3 times each in 6 directions Malfunction: 100 m/s2, 3 times each in 6 directions |
| Life expectancy (relay output) | - |
| Connecting method | PCB terminal |
| Weight | Approx. 10 g |
IndMALL Automation Dealing offers Omron Dual DC 10min Solid-State Timer, H3FA-SAU DC12/24 at unbeatable prices. The Main Technical Parameters of H3FA-SAU DC12/24 includes 12/24 VDC Ripple 20% max., 4, 85 to 110% of the power supply voltage, Approx. 100 mW (at 12 VDC)/Approx. 240 mW (at 24 VDC), One shot output, Signal OFF delay, Transistor output, 10 ms max. & ±1% FS max.. Additionally, it provides 100 MΩ min. (at 500 VDC), Approx. 10 g
& PCB terminal. Take the First Step with a Quote for your requirement of Omron Dual DC 10min Solid-State Timer. Choose us for unparalleled pricing and support over other Dealers & Distributors.
