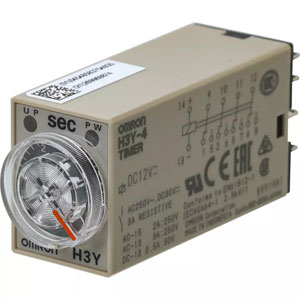

H3Y-4 DC12 30M: Omron Extended 12V DC Timer
Technical Specifications of Omron Extended 12V DC Timer H3Y-4 DC12 30M:
| Spec | Value |
|---|---|
| Rated power supply voltage | 12 VDC If power supply incorporates a single-phase full-wave rectifier. |
| Allowable voltage variable range | 90 to 110% of the power supply voltage |
| Power consumption | Approx. 0.9 W (at 12 VDC) |
| Reset voltage | 10% min, of rated supply voltage |
Omron Extended 12V DC Timer H3Y-4 DC12 30M Technical Specifications:
| Specification | Value |
|---|---|
| Rated power supply voltage | 12 VDC If power supply incorporates a single-phase full-wave rectifier. |
| Allowable voltage variable range | 90 to 110% of the power supply voltage |
| Power consumption | Approx. 0.9 W (at 12 VDC) |
| Reset voltage | 10% min, of rated supply voltage |
| Number of time ranges | 1 |
| Operation mode | Power ON-delay |
| Control output (Type) | Time-limit: 4PDT |
| Control output (Contact output) | Resistive load: 3 A at 250 VAC (cosφ=1) Minimum applicable load: 1 mA at 1 VDC (failure level: P) |
| Operating resetting | Time-limit operation/Self-reset |
| Ambient humidity range | Operating: -10 to 50 ℃ (with no icing) Storage: -25 to 65 ℃ (with no icing) |
| Ambient temperature range | Operating: 35 to 85% |
| Accuracy of operating time | ±1% FS ±10 ms max. |
| Setting error | ±10% FS ±50 ms max. |
| Reset time | 0.1 s max. (including halfway reset) |
| Influence of voltage | ±2% FS max. |
| Influence of temperature | ±2% FS max. |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength | Between current carrying terminals and exposed non-current carrying metal parts: 2000 VAC 50/60 Hz 1 min (Terminal screw sections are not excluded) Between operating power circuit and control output: 2,000 VAC 50/60 Hz 1 min Between contacts of different polarity: 2,000 VAC 50/60 Hz 1 min Between non-continuous contacts: 1,000 VAC 50/60 Hz 1 min |
| Impulse withstand voltage | Between power terminals: 1 kV Between current carrying terminals and exposed non-current carrying metal parts: 1.5 kV |
| Noise immunity | ±1.5 kV square-wave noise by noise simulator (pulse width: 100 ns/1 µs, 1-ns rise) |
| Static immunity | Mulfunction: 4 kV, Destruction: 8 kV |
| Vibration resistance | Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 1 hour Malfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min |
| Shock resistance | Destruction: 1,000 m/s2, 3 times each in 6 directions Malfunction: 100 m/s2, 3 times each in 6 directions |
| Life expectancy (relay output) | Electrical: 200,000 operations min. (3 A at 250 VAC, resistive load at 1800 operations/h, Room temperature) Mechanical: 10 million operations min. (under no load at 1,800 operations/h) |
| Degree of protection | IP40 |
| Connecting method | 14-pin round socket |
| Case color | Beige |
| Weight | Approx. 50 g |
IndMALL Automation Dealing offers Omron Extended 12V DC Timer, H3Y-4 DC12 30M at unbeatable prices. The Main Technical Parameters of H3Y-4 DC12 30M includes 12 VDC If power supply incorporates a single-phase full-wave rectifier., 90 to 110% of the power supply voltage, Approx. 0.9 W (at 12 VDC), 10% min, of rated supply voltage, 1, Power ON-delay, Time-limit: 4PDT & Time-limit operation/Self-reset. Additionally, it provides IP40, 14-pin round socket & Beige. Take the First Step with a Quote for your requirement of Omron Extended 12V DC Timer. Choose us for unparalleled pricing and support over other Dealers & Distributors.
