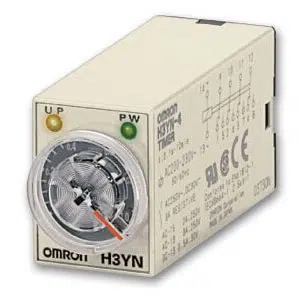

H3YN-2 DC48: Omron DPDT 8 Pin DC48 Timer
Technical Specifications of Omron DPDT 8 Pin DC48 Timer H3YN-2 DC48:
| Spec | Value |
|---|---|
| Rated power supply voltage | 48 VDC If power supply incorporates a single-phase full-wave rectifier. |
| Allowable voltage variable range | 85 to 110% of the power supply voltage |
| Reset voltage | 10% max. of rated supply voltage |
| Number of time ranges | 4 |
| Control output (Type) | Time-limit: DPDT |
Omron DPDT 8 Pin DC48 Timer H3YN-2 DC48 Technical Specifications:
| Specification | Value |
|---|---|
| Rated power supply voltage | 48 VDC If power supply incorporates a single-phase full-wave rectifier. |
| Allowable voltage variable range | 85 to 110% of the power supply voltage |
| Power consumption | Relay ON: Approx. 1.2 W (at 48 VDC)/Relay OFF: Approx. 0.3 W (at 48 VDC) |
| Reset voltage | 10% max. of rated supply voltage |
| Number of time ranges | 4 |
| Operation mode | ON delay, Interval, Flicker OFF start, Flicker ON start |
| Control output (Type) | Time-limit: DPDT |
| Control output (Contact output) | Resistive load: 250 VAC 5 A (cosφ=1) Minimum applicable load: 1 mA at 5 VDC (failure level: P) |
| Ambient temperature range | Operating: -10 to 50 ℃ (with no icing) Storage: -25 to 65 ℃ (with no icing) |
| Ambient humidity range | Operating: 35 to 85% |
| Accuracy of operating time | ±1% FS max. (±1% ±10 ms in a range of 1 s) |
| Setting error | ±10% FS ±50 ms max. |
| Reset time | 0.1 s max. (including halfway reset) |
| Influence of voltage | ±2% FS max. |
| Influence of temperature | ±2% FS max. |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric strength | Between current carrying terminals and exposed non-current carrying metal parts: 2000 VAC 50/60 Hz 1 min (Terminal screw sections are not excluded) Between operating power circuit and control output: 2,000 VAC 50/60 Hz 1 min Between contacts of different polarity: 2,000 VAC 50/60 Hz 1 min Between non-continuous contacts: 1,000 VAC 50/60 Hz 1 min |
| Impulse withstand voltage | Between power terminals: 1 kV Between current carrying terminals and exposed non-current carrying metal parts: 1.5 kV |
| Noise immunity | ±1.5 kV square-wave noise by noise simulator (pulse width: 100 ns/1 µs, 1-ns rise) |
| Static immunity | Mulfunction: 4 kV, Destruction: 8 kV |
| Vibration resistance | Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 1 hour Malfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min |
| Shock resistance | Destruction: 1,000 m/s2, 3 times each in 6 directions Malfunction: 100 m/s2, 3 times each in 6 directions |
| Life expectancy (relay output) | Electrical: 500,000 operations min. (5 A at 250 VAC, resistive load at 1,800 operations/h, Room temperature) Mechanical: 10 million operations min. (under no load at 1,800 operations/h) |
| Degree of protection | IP40 |
| Connecting method | 8-pin round socket |
| Case color | Beige |
| Weight | Approx. 50 g |
IndMALL Automation Offers Omron DPDT 8 Pin DC48 Timer, H3YN-2 DC48 with exclusive offers. Component Specifications of H3YN-2 DC48 features https://indmall.in/datasheets/omron/timers/h3y-datasheet.pdf, Omron DPDT 8 Pin DC48 Timer H3YN-2 DC48 Technical Specifications:, Time-limit: DPDT, Operating: -10 to 50 ℃ (with no icing)
Storage: -25 to 65 ℃ (with no icing). It rounds off its features with ±1% FS max. (±1% ±10 ms in a range of 1 s), Approx. 50 g, Operating: 35 to 85%. Don't Miss Out on a Quote for your requirement of Omron DPDT 8 Pin DC48 Timer. Our competitive edge: better pricing and support than other Suppliers.
