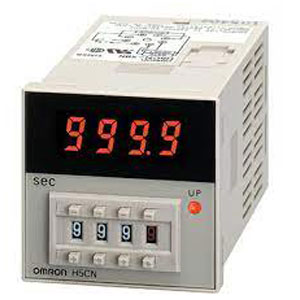

H5CN-YBN AC100-240: Omron 100-240VAC DOWN SPDT Timer
Technical Specifications of Omron 100-240VAC DOWN SPDT Timer H5CN-YBN AC100-240:
| Spec | Value |
|---|---|
| Rated Supply Voltage | 100 to 240 VAC (50/60 Hz) |
| Operating Voltage Range | 85 to 110% of rated supply voltage |
| Power Consumption | Approx. 12 VA (at 240 VAC)/Approx. 2.5 W (at 240 VAC) |
| Time Ranges | 0.1 to 999.9 s |
Omron 100-240VAC DOWN SPDT Timer H5CN-YBN AC100-240 Technical Specifications:
| Specification | Value |
|---|---|
| Rated supply voltage | 100 to 240 VAC (50/60 Hz) |
| Operating voltage range | 85 to 110% of rated supply voltage |
| Power consumption | Approx. 12 VA (at 240 VAC)/Approx. 2.5 W (at 240 VAC) |
| Time ranges (Number of ranges) | 1 |
| Time ranges | 0.1 to 999.9 s |
| Input method | Contact: Contact open and short-circuit input No-contact: Open-collector transistor ON/OFF input |
| Output modes | N: Power ON delay |
| Control output (Contact output) | SPDT Resistive load: 3 A at 250 VAC (cosφ=1) Minimum applicable load: 10 mA at 5 VDC (failure level: P Reference value) |
| Reset system | Power reset/External reset |
| Power reset | Minimum power-opening time: 0.5 s |
| External reset and Gate | Minimum input signal width: 0.02 s Residual voltage: 2 V max. |
| Timer Mode | UP display timer (increments form 0 to the set time) |
| Display method | 7-segment LED 4 digit |
| Character height | 10 mm |
| Ambient temperature (Storage) | -10 to 55 ℃ (with no icing) |
| Ambient humidity Operating | -25 to 65 ℃ (with no icing) |
| Ambient humidity range | 35 to 85% |
| Accuracy of operating time | Power-ON start: ±0.01% ±0.05 s max. (The values are based on the set value.) Reset start: ±0.005% ±0.03 s max. (The values are based on the set value.) |
| Setting error | Power-ON start: ±0.01% ±0.05 s max. (The values are based on the set value.) Reset start: ±0.005% ±0.03 s max. (The values are based on the set value.) |
| Influence of voltage | Power-ON start: ±0.01% ±0.05 s max. (The values are based on the set value.) Reset start: ±0.005% ±0.03 s max. (The values are based on the set value.) |
| Influence of temperature | Power-ON start: ±0.01% ±0.05 s max. (The values are based on the set value.) Reset start: ±0.005% ±0.03 s max. (The values are based on the set value.) |
| Insulation resistance | Between current carrying terminals and exposed non-current carrying metal parts: 100 MΩ min. (at 500 VDC) Between operating power circuit and control output circuit: 100 MΩ min. (at 500 VDC) |
| Dielectric strength | Between current carrying terminals and exposed non-current carrying metal parts: 2000 VAC 50/60 Hz 1 min Between operating power circuit and control output circuit: 2000 VAC 50/60 Hz 1 min |
| Impulse withstand voltage | Between operating power supply terminals: 6 kV Between current carrying terminals and exposed non-current carrying metal parts: 6 kV |
| Noise Immunity | Between operating power supply terminals: ±480 kV Between input terminals: ±500 kV Square-wave noise by noise simulator |
| Static Immunity | Mulfunction: 8 kV |
| Vibration Resistance | Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 2 h Malfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min |
| Shock Resistance | Destruction: 300 m/s2, 3 times each in 6 directions Malfunction: 100 m/s2, 3 times each in 6 directions |
IndMALL Offers Omron 100-240VAC DOWN SPDT Timer, H5CN-YBN AC100-240 at economical Choices. Product Tech Specs of H5CN-YBN AC100-240 includes 100 to 240 VAC (50/60 Hz), 85 to 110% of rated supply voltage, Approx. 12 VA (at 240 VAC)/Approx. 2.5 W (at 240 VAC), 1, 0.1 to 999.9 s, N: Power ON delay, 10 mm & 7-segment LED 4 digit. And It Includes Flush mounting / Surface mounting, 8-pin round socket & Light gray (Munsell 5Y7/1). Now's the Time to Secure a Quote for your requirement of Omron 100-240VAC DOWN SPDT Timer. Trust in our superior pricing and more dedicated support over other Distributors.
