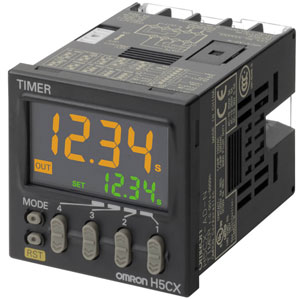

H5CX-BWSD-N: Omron 6-Digit Dual Stage Output Timer
Technical Specifications of Omron 6-Digit Dual Stage Output Timer H5CX-BWSD-N:
| Spec | Value |
|---|---|
| Rated Supply Voltage | 12 to 24 VDC (Ripple 20% max.) |
| Operating Voltage range | 12 to 24 VDC (Ripple 20% max.) |
| Time Ranges | 0.01 to 9999.99 s 0.1 to 99999.9 min 0.1 to 99999.9 h 1 s to 99 h 59 min 59 s |
| Power Consumption | Approx. 2.3 W |
Omron 6-Digit Dual Stage Output Timer H5CX-BWSD-N Technical Specifications:
| Specification | Value |
|---|---|
| Rated supply voltage | 12 to 24 VDC (Ripple 20% max.) |
| Operating voltage range | 12 to 24 VDC (Ripple 20% max.) |
| Power consumption | Approx. 2.3 W |
| Time ranges（Number of ranges | 4 |
| Time ranges | 0.01 to 9999.99 s 0.1 to 99999.9 min 0.1 to 99999.9 h 1 s to 99 h 59 min 59 s |
| Input method | No-voltage (NPN)/Voltage (PNP) input (selectable) |
| No-voltage input (Solid state input) | Short-circuit (ON) impedance: 1 kΩ max. (Leakage current (0 Ω): Approx. 12 mA) Short-circuit (ON) residual voltage: 3 V max. Open circuit impedance: 100 kΩ min. (The DC voltage must be 30 VDC max.) |
| No-voltage input (Applicable two-wire sensor) | Leakage current: 1.5 mA max. Switching capacities: 5 mA min. Residual voltage: 3.0 VDC max. Operating voltage: 10 VDC |
| Voltage input | High level: 4.5 to 30 VDC Low level: 0 to 2 VDC (Input resistance 4.7 kΩ) |
| Output modes | A: Signal ON delay F-1: Cumulative |
| Control output (Solid state output) | 2 pointTransistor output (NPN open collector) Switching capacities: 30 VDC max., 100 mA max. Residual voltage: 1.5 V (Capacity value 1 V) Leakage current: 0.1 mA max. |
| Reset system | Power reset (A mode)/External reset/Manual reset |
| Power reset | Minimum power-opening time: 0.5 s (except for A-3, b-1, F, ton-1 and toff-1 mode) |
| Timer mode | Elapsed time (UP) |
| Display method | 7-segment negative transmissive LCD 6 digit |
| Character height | Present value: 12 mm (Red, green or orange programmable) Set value: 6 mm (green) |
| Key protect method | Key protect Switch |
| Memory backup method | EEP-ROM (number of writes: 100,000 operations min., Service life: 10 years min.) |
| Ambient temperature (Operating) | -10 to 55 ℃ (with no freezing or condensation) When mount timer side by side: -10 to 50 ℃ (with no freezing or condensation) |
| Ambient temperature (Storage) | -25 to 70 ℃ (with no freezing or condensation) |
| Ambient humidity (Operating) | 25 to 85% |
| Accuracy of operating time | Power-ON start: ±0.01% ±0.05 s max. (The values are based on the set value.) Signal start: ±0.005% ±3 ms max. (The values are based on the set value. The value is applied for a minimum pulse width of 1 ms.) |
| Setting error | Power-ON start: ±0.01% ±0.05 s max. (The values are based on the set value.) Signal start: ±0.005% ±3 ms max. (The values are based on the set value. The value is applied for a minimum pulse width of 1 ms.) |
| Influence of voltage | Power-ON start: ±0.01% ±0.05 s max. (The values are based on the set value.) Signal start: ±0.005% ±3 ms max. (The values are based on the set value. The value is applied for a minimum pulse width of 1 ms.) |
| Influence of temperature | Power-ON start: ±0.01% ±0.05 s max. (The values are based on the set value.) Signal start: ±0.005% ±3 ms max. (The values are based on the set value. The value is applied for a minimum pulse width of 1 ms.) |
| Insulation resistance | Between current carrying terminals and exposed non-current carrying metal parts: 100 MΩ min. (at 500 VDC) |
| Dielectric strength | Between current carrying metal parts and non-current carrying metal parts: 2000 VAC 50/60 Hz 1 min Between control output, and power supply/input circuit: 1000 VAC 50/60 Hz 1 min Between non-continuous contacts: 1000 VAC 50/60 Hz 1 min |
| Impulse withstand voltage | Between power terminals: 1.0 kV Between current carrying terminals and exposed non-current carrying metal parts: 1.5 kV |
| Noise immunity | Between power terminals: ±480 kV Between input terminals: ±600 kV square-wave noise by noise simulator, pulse width: 100 ns/1 µs, 1-ns rise |
| Static immunity | Mulfunction: 8 kV, Destruction: 15 kV |
| Vibration resistance | Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 2 h Malfunction: 10 to 55 Hz 0.35 mm single amplitude each in 3 directions for 10 min |
| Shock resistance | Destruction: 300 m/s2, 3 times each in 3 axes each directions Malfunction: 100 m/s2, 3 times each in 6 directions |
| Life expectancy | - |
| Degree of protection | IEC IP66, UL508 Type 4X (indoors) (when using the Y92S-29 Waterproof Packing and Y92F-30 Flush Mounting Adapter) |
| Mounting method | Flush mounting |
| External connection method | Screw terminal |
| Case color | Black (Munsell N1.5) |
| Attachment | Flush mounting adapter, waterproof packing, label for DIP switch settings, terminal covers |
| Accessory (sold separately) | Soft Cover: Y92A-48F1 Hard Cover: Y92A-48 Flush mounting adapter: Y92F-30/Y92F-45/Y92F-38 Waterproof packing: Y92S-29 Replacement Front Panel: Y92P-CXT4S/Y92P-CXT4G/Y92P-CXT4B |
| Weight | Main Unit: Approx. 105 g |
Call us for Omron 6-Digit Dual Stage Output Timer, H5CX-BWSD-N at the best rates. Technical Attributes of H5CX-BWSD-N are 12 to 24 VDC (Ripple 20% max.), 12 to 24 VDC (Ripple 20% max.), Approx. 2.3 W, 4, No-voltage (NPN)/Voltage (PNP) input (selectable), Use contact which can adequately switch 5 mA at 10 V, 7-segment negative transmissive LCD 6 digit & Key protect Switch. And It Delivers Flush mounting, Screw terminal & Black (Munsell N1.5).Unlock Exclusive Pricing with a Quote for your requirement of Omron 6-Digit Dual Stage Output Timer. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
