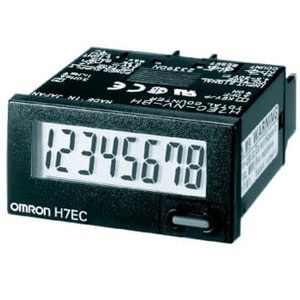

H7EC-NV-B: Omron PNP/NPN Input Voltage Counter
Technical Specification of Omron PNP/NPN Input Voltage Counter H7EC-NV-B:
| Spec | Value |
|---|---|
| Function | Total Counter |
| Count Range | 0 to 99999999 |
| Max Counting Speed | 30 Hz/1 kHz (switching) (ON/OFF ratio 1:1) |
| Input Mode | Increment (UP) |
Omron PNP/NPN Input Voltage Counter H7EC-NV-B Technical Specifications:
| Specification | Value |
|---|---|
| Function | Total Counter |
| Count Range | 0 to 99999999 |
| Max Counting Speed | 30 Hz/1 kHz (switching) (ON/OFF ratio 1:1) |
| Minimum Input Signal Width | 30 Hz: 16.7 ms 1 kHz: 0.5 ms |
| Input Mode | Increment (UP) |
| Reset System | External and manual reset |
| Input Method | Voltage input |
| No-voltage input (No-contact input）/ Voltage input | Hight level: 4.5 to 30 VDC Low level: 0 to 2 VDC (Input resistance Approx. 4.7 kΩ) |
| External / Manual reset Time | 20 ms |
| Display method | LCD |
| Dispaly Digits | 8 digit |
| Ambient temperature (Operating) | -10 to 55 ℃ (with no freezing or condensation) |
| Ambient temperature (Storage) | -25 to 65 ℃ (with no freezing or condensation) |
| Ambient humidity (Operating) | 25 to 85 % |
| Insulation resistance | Between current carrying terminals and exposed non-current carrying metal parts: 100 MΩ min. (at 500 VDC) |
| Dielectric withstand voltage | Between current carrying terminals and exposed non-current carrying metal parts: 1000 VAC 50/60 Hz 1 min |
| Impulse withstand voltage | Between current carrying terminals and exposed non-current carrying metal parts: 4.5 kV |
| Noise immunity | Between count input terminals: ±500 V Between reset terminals: ±500 V square-wave noise by noise simulator (pulse width: 100 ns/1 µs, 1-ns rise) |
| Static immunity Degree of protection External connection method | ±8 kV (malfunction) |
| Vibration resistance | Destruction: 10 to 55 Hz, 0.375 mm single amplitude each in 3 directions for 2 h Malfunction: 10 to 55 Hz, 0.15 mm single amplitude each in 3 directions for 10 min |
| Shock resistance | Destruction: 300 m/s2, 3 times each in 6 directions Malfunction: 200 m/s2, 3 times each in 6 directions |
| Degree of protection | Case front: IP66, NEMA 4 (indoors), and UL Type 4X (indoors) |
| External connection method | Screw terminal |
| Case color | Light gray (Munsell 5Y7/1) |
| Weight | Approx. 60 g |
Get A Quote for Omron PNP/NPN Input Voltage Counter, H7EC-NV-B at the best price. Here are the brief Technical Specifications of H7EC-NV-B: Total Counter, Voltage input, 30 Hz/1 kHz (switching)
(ON/OFF ratio 1:1), 30 Hz: 16.7 ms
1 kHz: 0.5 ms. And it offers Increment (UP), External and manual reset, Count input, Reset. It's Time to get a Quote for your requirement of Omron PNP/NPN Input Voltage Counter. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
