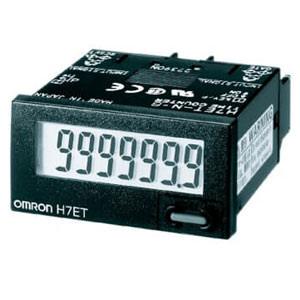

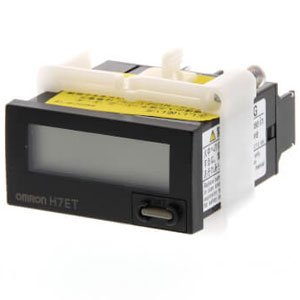

H7ET-N: Omron Flush Mounting counter

Technical Specifications of Omron Flush Mounting counter H7ET-N:

SpecValue
FunctionTime Counter
Time Counter RangesIncrement (UP)
Counter Time Ranges0.0 h to 999999.9 h/0.0 h to 3999 d 23.9 h (selectable)
Time counter Set value read selector±100 ppm (25 ℃)
Time counter Reset systemExternal and manual reset

Omron Flush Mounting counter H7ET-N Technical Specifications:

SpecificationValue
FunctionTime Counter
Time counter rangesIncrement (UP)
Counter Time ranges0.0 h to 999999.9 h/0.0 h to 3999 d 23.9 h (selectable)
Time counter Set value read selector±100 ppm (25 ℃)
Time counter Reset systemExternal and manual reset
Input signalCount input, Reset
Input methodNo-voltage input
No-voltage input (No-contact input)/ Voltage inputShort-circuit (ON) impedance: 10 kΩ max. Residual voltage: 0.5 V max. (Actual performance 1.0 V) Open circuit impedance: 750 kΩ min.
External/Manual Reset time20 ms
Display methodLCD
Display Digits7 digit
Display Character height8.6 mm (Black)
Display Zero suppressionEquipped
Ambient temperature (Operating)-10 to 55 ℃ (with no freezing or condensation)
Ambient temperature (Storage)-25 to 65 ℃ (with no freezing or condensation)
Ambient humidity (Operating)25 to 85 %
Insulation resistanceBetween current carrying terminals and exposed non-current carrying metal parts: 100 MΩ min. (at 500 VDC)
Dielectric withstand voltageBetween current carrying terminals and exposed non-current carrying metal parts: 1000 VAC 50/60 Hz 1 min
Impulse withstand voltageBetween current carrying terminals and exposed non-current carrying metal parts: 4.5 kV
Noise immunityBetween reset terminals: ±500 V Between timer input terminals: ±500 V square-wave noise by noise simulator (pulse width: 100 ns/1 µs, 1-ns rise)
Static immunity±8 kV (malfunction)
Vibration resistanceDestruction: 10 to 55 Hz, 0.375 mm single amplitude each in 3 directions for 2 h Malfunction: 10 to 55 Hz, 0.15 mm single amplitude each in 3 directions for 10 min
Shock resistanceDestruction: 300 m/s2, 3 times each in 6 directions Malfunction: 200 m/s2, 3 times each in 6 directions
Degree of protectionCase front: IP66, NEMA 4 (indoors), and UL Type 4X (indoors)
External connection methodScrew terminal
Case colorLight gray (Munsell 5Y7/1)
WeightApprox. 60 g
Obtain a Quote for Omron Flush Mounting counter, H7ET-N at economical prices. Specifications Overview for H7ET-N reveals Time Counter, Increment (UP) , ±100 ppm (25 ℃), 0.0 h to 999999.9 h/0.0 h to 3999 d 23.9 h (selectable). It also includes Count input, Reset, No-voltage input, Short-circuit (ON) impedance: 10 kΩ max. Residual voltage: 0.5 V max. (Actual performance 1.0 V) Open circuit impedance: 750 kΩ min.. Take the First Step with a Quote for your requirement of Omron Flush Mounting counter. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
