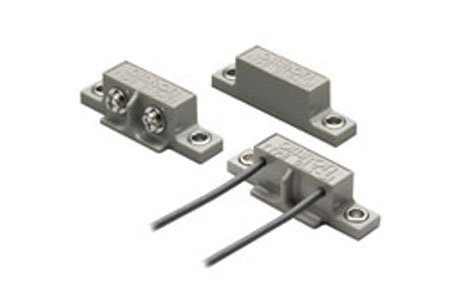

Omron Magnetic Sensor: Magnetic Proximity Sensor
IndMALL Automation offers a comprehensive range of Omron Magnetic Sensors, designed for precise and reliable detection. With a sensing distance of 15 mm and an SPST-NO contact circuit, these sensors provide excellent performance in various industrial applications. They handle a maximum operating voltage of 100 VDC and a current of 0.1 A DC, with a switching capacity of up to 10 W. These sensors are built to withstand harsh conditions with a dielectric strength of 1,000 VAC, and a life expectancy of at least 50 million operations.
Find the high-quality Omron Magnetic Proximity Sensors at IndMALL Automation. These sensors are engineered for optimal performance, featuring a sensing distance of 15 mm and robust contact mechanisms. They operate effectively within a temperature range of -20 to 60°C and offer protection ratings of IP40 and IP62, ensuring durability and reliability. Ideal for a wide range of industrial applications, these sensors offer easy connection methods and are constructed from durable ABS material for long-lasting use.
Omron Magnetic Sensors offer reliable and precise detection with a sensing distance of 15 mm. These sensors utilize an SPST-NO contact circuit, providing efficient switching capabilities. They can handle a maximum operating voltage of 100 VDC and a maximum operating current of 0.1 A DC, with a switching capacity of up to 10 W for both open and closed contacts.
The sensors are designed to withstand a dielectric strength of 250 VDC for 1 minute, ensuring minimal leakage current (1 mA max). They operate effectively within a response frequency of 20 Hz and an ambient temperature range of -20 to 60°C, making them suitable for various environmental conditions. The ambient humidity range for these sensors is 35% to 85%, ensuring no condensation during operation or storage.
Key specifications include:
- Contact Resistance: 150 mΩ max.
- Dielectric Strength: 1,000 VAC for 1 minute between terminals and case.
- Life Expectancy: At least 50 million operations with a 0.1-A resistive load at 24 VDC.
- Vibration Resistance: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours in X, Y, and Z directions.
- Shock Resistance: 300 m/s² three times in X, Y, and Z directions.
- Protection Rating: IP40 and IP62 (IEC standards).
- Connection options include a terminal block and pre-wired models with a standard cable length of 1 meter. The sensor is constructed from durable ABS material, ensuring robustness and longevity in various applications. The accompanying magnet enhances the sensor’s detection capabilities.
Omron Magnetic Sensors are ideal for applications requiring reliable magnetic detection, offering durability, high performance, and a long operational life.
Product List:
| Model No | Image | Sensing head size | Type | Sensing distance | Response frequency | Connection method |
|---|---|---|---|---|---|---|

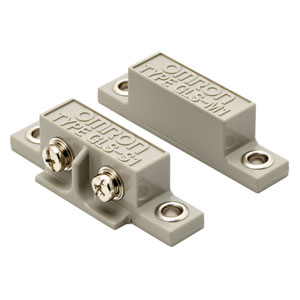

| GLS-1 |
|
50 mm x 14 mm x 14 mm | Square type, Magnetic type | 15mm | 20 Hz max. | Terminal block models |

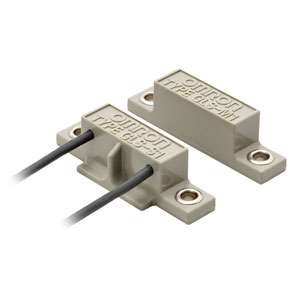

| GLS-1L |
|
50 mm x 14 mm x 14 mm | Square type, Magnetic type | 15 mm | 20 Hz max. | Pre-wired models (1 m) |
