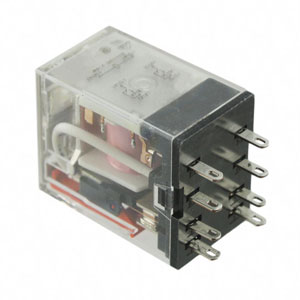

MY2N-CR AC100/110: Omron MY2N CR Relay in Chennai
The technical specifications for the Omron MY2N CR Relay MY2N-CR AC100/110:
- Degree of protection: Closed type (cover)
- Terminal structure: Plug-in terminal
- Contact form: DPDT
- Mounting method: Socket
- Coil surge killer: CR
- Ambient temperature: -55 to 60 ℃
- Contact method: Single
Omron MY2N CR Relay MY2N-CR AC100/110 Technical Specifications:
| Degree of protection | Closed type (cover) |
| Terminal structure | Plug-in terminal |
| Coil ratings | 100 VAC 50 Hz 11.7 mA 100 VAC 60 Hz 10 mA 110 VAC 50 Hz 12.9 mA 110 VAC 60 Hz 11 mA |
| Coil resistance | 3750 Ω |
| Operate voltage (Set voltage) | 80% max. |
| Release voltage (Reset voltage) | 30 % min. |
| Power consumption Operate / Release | Approx. 0.9 to 1.3 VA 60 Hz |
| Contact rated load | 220 VAC 5 A (Resistive load) 220 VAC 2 A (Inductive load (cosφ = 0.4)) 24 VDC 5 A (Resistive load) 24 VDC 2 A (Inductive load (L/R = 7 ms)) |
| Max. contact voltage | 250 VAC 125 VDC |
| Max. Contact Current | AC: 5 A DC: 5 A |
| Maximum switching power | 1100 VA (Resistive load) 440 VA (Inductive load (cosφ = 0.4)) 120 W (Resistive load) 48 W (Inductive load (L/R = 7 ms)) |
| Contact method | Single |
| Contact form | DPDT |
| Contact resistance | 50 mΩ max. (Voltage drop method with 5 VDC 1 A) |
| Coil surge killer | CR |
| Operating time | 20 ms max. (With rated operating power applied, not including contact bounce) |
| Reset time | 20 ms max. (With rated operating power applied, not including contact bounce) |
| Maximum operating frequency | Mechanical: 18000 time/hour Rated load: 1800 time/hour |
| Ambient temperature (Operating) | -55 to 60 ℃ (with no freezing or condensation) |
| Ambient humidity (Operating) | 5 to 85% |
| Mounting method | Socket |
Searching for an affordable Omron MY2N CR Relay MY2N-CR AC100/110 in Chennai? IndMALL Automation offers this efficient relay with a secure cover and convenient plug-in terminals. It operates on 100/110 VAC with a coil resistance of 3750 Ω and includes a coil surge killer (CR) for enhanced safety. Capable of handling up to 5 A for both AC and DC loads, it’s perfect for various applications, ensuring reliable and stable performance
