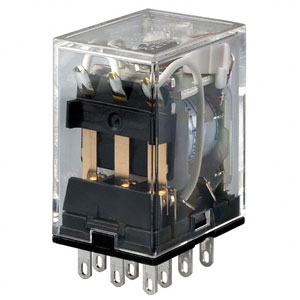

MY3N AC200/220: Omron General Purpose Relay in Chennai
The technical specifications for the Omron General Purpose Relay MY3N AC200/220:
- Operating indicator: LED
- Degree of protection: Closed type (cover)
- Terminal structure: Plug-in terminal
- Contact form: 3PDT
- Contact method: Single
- Mounting method: Socket
- Ambient temperature: -55 to 60 ℃
- Power consumption: Approx. 0.9 to 1.3 VA 60 Hz
Omron General Purpose Relay MY3N AC200/220 Technical Specifications:
| Degree of protection | Closed type (cover) |
| Terminal structure | Plug-in terminal |
| Coil ratings | 200 VAC 50 Hz 6.2 mA 200 VAC 60 Hz 5.3 mA 220 VAC 50 Hz 6.8 mA 220 VAC 60 Hz 5.8 mA |
| Coil resistance | 18790 Ω |
| Operate voltage (Set voltage) | 80% max. |
| Release voltage (Reset voltage) | 30 % min. |
| Power consumption | Approx. 0.9 to 1.3 VA 60 Hz |
| Contact rated load | 220 VAC 5 A (Resistive load) 220 VAC 2 A (Inductive load (cosφ = 0.4)) 24 VDC 5 A (Resistive load) 24 VDC 2 A (Inductive load (L/R = 7 ms)) |
| Max. contact voltage | 250 VAC 125 VDC |
| Max. Contact Current | AC: 5 A DC: 5 A |
| Maximum switching power | 1100 VA (Resistive load) 440 VA (Inductive load (cosφ = 0.4)) 120 W (Resistive load) 48 W (Inductive load (L/R = 7 ms)) |
| Contact method | Single |
| Contact form | 3PDT |
| Contact resistance | 50 mΩ max. (Voltage drop method with 5 VDC 1 A) |
| Contact material | Ag |
| Operating time | 20 ms max. (With rated operating power applied, not including contact bounce) |
| Reset time | 20 ms max. (With rated operating power applied, not including contact bounce) |
| Maximum operating frequency | Mechanical: 18000 time/hour Rated load: 1800 time/hour |
| Ambient temperature (Operating) | -55 to 60 ℃ (with no freezing or condensation) |
| Ambient humidity (Operating) | 5 to 85% |
| Mounting method | Socket |
| Weight | Approx. 35 g |
Are you searching for the Omron General Purpose Relay MY3N AC200/220. It features an LED operating indicator, closed-type cover for protection, with plug-in terminals, a 3PDT contact form, and a single contact method, it’s designed for socket mounting. This relay operates efficiently in ambient temperatures from -55 to 60 ℃ and consumes about 0.9 to 1.3 VA at 60 Hz. For the best prices on Omron Relays, IndMALL Automation in Chennai is your ideal destination.
