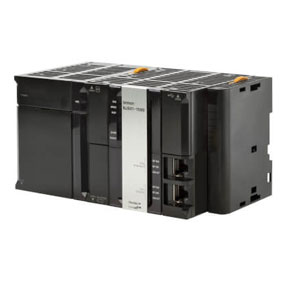

NJ301-1200: Omron PLC 8 Servo Axes
Technical specifications of Omron PLC 8 Servo Axes NJ301-1200:
| Spec | Value |
|---|---|
| Controller functionality | Motion control, Sequence control |
| Max. number of synchronous axes | 8 |
| Program memory | 5 MB |
| Communication port(s) | EtherCAT Master, EtherNet/IP, USB |
| Max. number of remote I/O nodes | 192 |
Omron PLC 8 Servo Axes NJ301-1200 Technical Specifications:
| Specification | Value |
|---|---|
| Controller functionality | Motion control, Sequence control |
| Max. number of synchronous axes | 8 |
| Max. number of PTP axes | 15 |
| Max. number of axes (incl. virtual) | - |
| Primary task cycle time | 0.5 ms |
| Program memory | 5 MB |
| Variables memory | 2.5 MB |
| Communication port(s) | EtherCAT Master, EtherNet/IP, USB |
| Communication option(s) | CAN, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485 |
| Max. number of remote I/O nodes | 192 |
| I/O system | CJ I/O Bus |
| Max. number of expansion units | 40 |
| Product Height (unpacked) | 96 mm |
| Product Width (unpacked) | 90 mm |
| Product Depth (unpacked) | 150 mm |
| Product Weight (unpacked) | 530 g |
Ask for the Pricing of Omron PLC 8 Servo Axes NJ301-1200 at unbeatable prices. Detailed Specifications of NJ301-1200 offers advanced controller functionality, including Motion control, Sequence control. It supports up to 8 synchronous axes, 15 PTP axes, including virtual ones. The primary task cycle time is 0.5 ms, with a program memory of 5 MB and variables memory of 2.5 MB. Communication ports include EtherCAT Master, EtherNet/IP, USB, along with options for CAN, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485. The PLC can handle a maximum of 192 remote I/O nodes and 40 expansion units via the CJ I/O Bus. The product dimensions are 96 mm in height, 90 mm in width, and 150 mm in depth. Now's the Time to Secure a Quote for your requirement of Omron PLC 8 Servo Axes. We're committed to offering more favorable pricing and more responsive support than other Traders.
