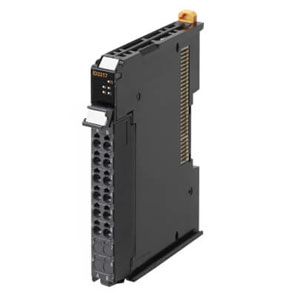

NX-OD3121: Omron PLC 0.5 A/point
Technical Specifications of Omron PLC 0.5 A/point NX-OD3121:
| Spec | Value |
|---|---|
| Number of Model points | 4 points |
| Internal I/O common | NPN |
| Power supply voltage | 24 VDC (20.4 to 28.8 VDC) |
| Unit power consumption | 5.80 W max. |
Omron PLC 0.5 A/point NX-OD3121 Technical Specifications:
| Specification | Value |
|---|---|
| Number of Model points | 4 points |
| Internal I/O common | NPN |
| Rated input voltage | 12 to 24 VDC |
| I/O refreshing method | Switching Synchronous I/O refreshing and Free- Run refreshing |
| ON/OFF response time | 0.1 ms max./ 0.8 ms max. |
| Dimensions (mm) | 72 × 100 × 90 mm (W×H×D) |
| Power supply voltage | 24 VDC (20.4 to 28.8 VDC) |
| Unit power consumption | 5.80 W max. |
| Shock resistance | Conforms to IEC 60068-2-27. 147 m/s2, 3 times in X, Y, and Z directions |
| Vibration resistance | Conforms to IEC 60068-2-6. 5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz, acceleration of 9.8 m/s2, 100 min each in X, Y, and Z directions (10 sweeps of 10 min each = 100 min total). |
| Noise immunity | 2 kV on power supply line (Conforms to IEC 61000-4-4.) |
| Pollution degree | 2 or less: Meets IEC 61010-2-201. |
| Ambient operating temperature | 0 to 55°C |
| Ambient operating humidity | 10% to 95% (with no condensation) |
| Ambient storage temperature | -25 to 70°C (excluding battery) |
| Weight | 390 g max. |
Send Your Inquiry for Omron PLC 0.5 A/point NX-OD3121 with cost-effective solutions. Essential Technical Specs of NX-OD3121 are 4 points with internal I/O common NPN and operates on a rated input voltage of 12 to 24 VDC. It supports both Switching Synchronous I/O refreshing and Free- Run refreshing methods, with an ON/OFF response time of 0.1 ms max./ 0.8 ms max. The unit's dimensions are 72 × 100 × 90 mm (W×H×D), and it requires a power supply voltage of 24 VDC (20.4 to 28.8 VDC) with a maximum power consumption of 5.80 W max. It also meets noise immunity standards of 2 kV on power supply line (Conforms to IEC 61000-4-4.) and has a pollution degree of 2 or less: Meets IEC 61010-2-201. The ambient operating temperature ranges from 0 to 55°C, with humidity from 10% to 95% (with no condensation), and storage temperatures from -25 to 70°C (excluding battery). Capture the Best Deal with a Quote for your requirement of Omron PLC 0.5 A/point. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
