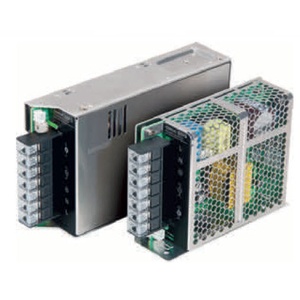

S8FS-G01524CD: Omron 15W 24V DIN Rail Compatible Supply
Technical Specifications of Omron 15W 24V DIN Rail Compatible Supply S8FS-G01524CD:
| Spec | Value |
|---|---|
| Power rating | 15 W |
| Output Voltage | 24 VDC |
| Connection | Terminal blocks |
| Terminal Type | Screw Terminal |
Omron 15W 24V DIN Rail Compatible Supply S8FS-G01524CD Technical Specifications:
| Specification | Value |
|---|---|
| Power rating | 15 W |
| Output voltage | 24 VDC |
| Connection | Terminal blocks |
| Terminal type | Screw Terminal |
| Mounting | DIN rail |
| Efficiency | 85 % typ.(at 100 VAC input) 86 % typ.(at 200 VAC input) 86 % typ.(at 230 VAC input) |
| Rated input voltage | 100 to 240 VAC |
| Input Frequency | 50/60Hz (47 to 450 Hz) |
| Rated input current | 0.32 A typ.(at 100 VAC input) 0.2 A typ.(at 200 VAC input) |
| Input Leakage current | 0.5 mA max.(at 100 VAC input) 1 mA max.(at 200 VAC input) |
| Rated output current | 0.65 A |
| Output voltage variable range | -10 to +15 % (With V.ADJ) |
| Start-up time | 1000 ms max.(at 100 VAC input) 1000 ms max.(at 200 VAC input) |
| Hold time | 15 ms typ.(at 100 VAC input) 70 ms typ.(at 200 VAC input) |
| Output indicator | Yes (color: green) |
| Vibration resistance | 10 to 55 Hz, 4.5 G max., 0.375 mm single amplitude in each 3 directions for 2 hours |
| Shock resistance | 150 m/s2, in each 6 directions 3 times |
| Ambient temperature (Operating) | -20 to 70 ℃ |
| Ambient temperature (Storage) | -25 to 75 ℃ |
| Ambient humidity (OperatingStorage) | 90 %RH max. |
| Cooling fan | No |
| Degree of protection | - |
| Weight | 250 g max. |
Please speak to our Technical Engineer for Omron 15W 24V DIN Rail Compatible Supply S8FS-G01524CD at attractive prices. Technical Specs Summary of S8FS-G01524CD includes 15W power, 24 VDC, 250 g of weight, 0.65 A output current, Screw terminal, DIN rail mounting, 100 to 240 VAC input voltage, 50/60Hz frequency, -10% to +15%V variable range, 1000 ms max(at 100 VAC input) and 1000ms max(at 200 VAC input), Green indicator, 10 to 55 Hz vibration resistance, 150 m/s2 in each 6 directions 3 times shock resistance, -20 to 70 degrees operating temperature, -25 to 75 degrees storage temperature, 90% RH max humidity, No cooling fan. Match Your Needs with a Quote for your requirement of Omron 15W 24V DIN Rail Compatible Supply. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
