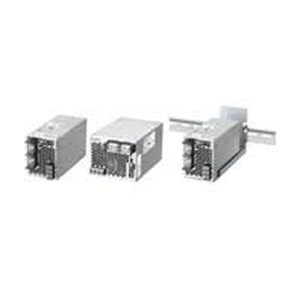

S8JX-P30005N: Omron 300W 60A Without Mounting Power Supply
Technical Specifications of Omron 300W 60A Without Mounting Power Supply S8JX-P30005N:
| Spec | Value |
|---|---|
| Power Rating | 300 W |
| Output Voltage | 5 VDC |
| Connection | Terminal blocks |
| Terminal Type | Screw Terminal |
Omron 300W 60A Without Mounting Power Supply S8JX-P30005N Technical Specifications:
| Specification | Value |
|---|---|
| Power rating | 300 W |
| Output voltage | 5 VDC |
| Connection | Terminal blocks |
| Terminal type | Screw Terminal |
| Mounting | Front mounting |
| Efficiency | 75% typ. (at 100 VAC input) 75% typ. (at 200 VAC input) |
| Rated input voltage | 100 to 240 VAC |
| Input Frequency | 50/60Hz (47 to 63 Hz) |
| Rated input current | 4.5 A max. (at 100 VAC input) 2.2 A max. (at 200 VAC input) |
| Input Leakage current | 0.5 mA max. (at 100 VAC input) 1.0 mA max. (at 200 VAC input) |
| Rated output current | 60 A |
| Output voltage variable range | ±10% (With V.ADJ) |
| Start-up time | 1000 ms typ. (at 100 VAC input) 1000 ms typ. (at 200 VAC input) |
| Hold time | 20 ms min. (at 100 VAC input) 20 ms min. (at 200 VAC input) |
| Output indicator | Yes (color: green) |
| Vibration resistance | 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours |
| Shock resistance | 150 m/s2, in each 6 directions 3 times |
| Ambient temperature (Operating) | -10 to 70 ℃ |
| Ambient temperature (Storage) | -25 to 75 ℃ |
| Ambient humidity (OperatingStorage) | 25 to 85% |
| Cooling fan | Yes |
| Degree of protection | - |
| Weight | 1200 g max. |
Talk to our Engineer for Omron 300W 60A Without Mounting Power Supply, S8JX-P30005N with exclusive offers. Core system Specifications of S8JX-P30005N includes 300 W, 5 VDC, Terminal blocks, Screw Terminal, Front mounting, 75% typ. (at 100 VAC input)
75% typ. (at 200 VAC input), 100 to 240 VAC & 50/60Hz (47 to 63 Hz). Moreover, it features 4.5 A max. (at 100 VAC input)
2.2 A max. (at 200 VAC input), 0.5 mA max. (at 100 VAC input)
1.0 mA max. (at 200 VAC input), 60 A, ±10% (With V.ADJ), 1000 ms typ. (at 100 VAC input)
1000 ms typ. (at 200 VAC input), 20 ms min. (at 100 VAC input)
20 ms min. (at 200 VAC input), Yes (color: green), 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours, 150 m/s2, in each 6 directions 3 times, -10 to 70 ℃, -25 to 75 ℃. Don't Miss Out on a Quote for your requirement of Omron 300W 60A Without Mounting Power Supply. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
