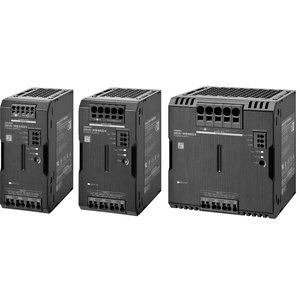

S8VK-WB24048: Omron 240W Advanced Control Power Supply
Technical Specifications of Omron 240W Advanced Control Power Supply S8VK-WB24048:
| Spec | Value |
|---|---|
| Power rating | 240 W |
| Output Voltage | 48 VDC |
| Connection | Terminal blocks |
| Terminal Type | Push-in Terminal |
Omron 240W Advanced Control Power Supply S8VK-WB24048 Technical Specifications:
| Specification | Value |
|---|---|
| Power rating | 240 W |
| Output voltage | 48 VDC |
| Connection | Terminal blocks |
| Terminal type | Push-in Terminal |
| Mounting | DIN track |
| Efficiency | 89% min., 93% typ. (at three-phase 380 VAC input) 93% typ. (at two-phase 380 VAC input) 88% min., 93% typ. (Three-phase 400 VAC input) 93% typ. (Two-phase 400 VAC input) 87% min., 92% typ. (at three-phase 480 VAC input) 93% typ. (at two-phase 480 VAC input) |
| Rated input voltage | 380 to 480 VAC (Three-phase / two-phase) |
| Input Frequency | 50/60Hz (47 to 63 Hz) |
| Rated input current | 0.5 A max., 0.43 A typ. (at three-phase 380 VAC input) 0.90 A max., 0.80 A typ. (at two-phase 380 VAC input) 0.50 A max., 0.41 A typ. (Three-phase 400 VAC input) 0.85 A max., 0.75 A typ. (Two-phase 400 VAC input) 0.40 A max., 0.36 A typ. (at three-phase 480 VAC input) 0.70 A max., 0.63 A typ. (at two-phase 480 VAC input) |
| Input Leakage current | 3.5 mA max. (Three-phase 400 VAC input) |
| Rated output current | 5 A |
| Output voltage variable range | 48 to 56 V (With V.ADJ) |
| Start-up time | 1000 ms max. (Three-phase 400 VAC input) |
| Hold time | 16 ms min., 30 ms typ. (Three-phase 400 VAC input) |
| Output indicator | Yes (LED: Green) |
| Vibration resistance | 10 to 55 Hz, maximum 5 G, 0.42 mm single amplitude for 2 h each in X, Y, and Z directions |
| Shock resistance | 150 m/s2, in each 6 directions 3 times |
| Ambient temperature (Operating) | −40 to 70°C |
| Ambient temperature (Storage) | −40 to 85°C |
| Ambient humidity (OperatingStorage) | 95% max. (Storage humidity: 95% max.) |
| Cooling fan | No |
| Degree of protection | IP20 by EN/IEC 60529 |
| Weight | 890 g max. |
Obtain a Quote for Omron 240W Advanced Control Power Supply S8VK-WB24048 at attractive prices. Core System Specifications of S8VK-WB24048 are 890 g of weight, 240 W power rating, 48 VDC, 5A output current, No cooling fan, IP20 by EN/IEC 65029, 95% max humidity, -40 to 85 degrees storage temperature, -40 to 70 degrees operating temperature, 150 m/s2 in each 6 directions 3 times shock resistance, 10 to 55 Hz vibration resistance, Green indicator, 48 to 56 V variable range, DIN track, Push-in terminal. Elevate Your Project with a Quote for your requirement of Omron 240W Advanced Control Power Supply. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
