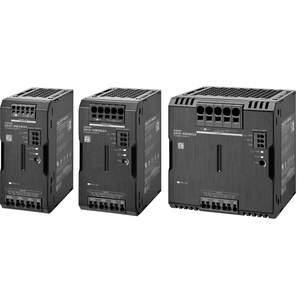

S8VK-WB48048: Omron 480W Programmable Output Supply
Technical Specifications of Omron 480W Programmable Output Supply S8VK-WB48048:
| Spec | Value |
|---|---|
| Power rating | 480 W |
| Output Voltage | 48 VDC |
| Connection | Terminal blocks |
| Terminal Type | Push-in Terminal |
Omron 480W Programmable Output Supply S8VK-WB48048 Technical Specifications:
| Specification | Value |
|---|---|
| Power rating | 480 W |
| Output voltage | 48 VDC |
| Connection | Terminal blocks |
| Terminal type | Push-in Terminal |
| Mounting | DIN track |
| Efficiency | 91% min., 95% typ. (at three-phase 380 VAC input) 95% typ. (at two-phase 380 VAC input) 91% min., 95% typ. (Three-phase 400 VAC input) 95% typ. (Two-phase 400 VAC input) 90% min., 95% typ. (at three-phase 480 VAC input) 95% typ. (at two-phase 480 VAC input) |
| Rated input voltage | 380 to 480 VAC (Three-phase / two-phase) |
| Input Frequency | 50/60Hz (47 to 63 Hz) |
| Rated input current | 0.90 A max., 0.82 A typ. (at three-phase 380 VAC input) 1.7 A max., 1.6 A typ. (at two-phase 380 VAC input) 0.90 A max., 0.78 A typ. (Three-phase 400 VAC input) 1.6 A max., 1.5 A typ. (Two-phase 400 VAC input) 0.75 A max., 0.65 A typ. (at three-phase 480 VAC input) 1.3 A max., 1.2 A typ. (at two-phase 480 VAC input) |
| Input Leakage current | 3.5 mA max. (Three-phase 400 VAC input) |
| Rated output current | 10 A |
| Output voltage variable range | 48 to 56 V (With V.ADJ) |
| Start-up time | 1000 ms max. (Three-phase 400 VAC input) |
| Hold time | 16 ms min., 25 ms typ. (Three-phase 400 VAC input) |
| Output indicator | Yes (LED: Green) |
| Vibration resistance | 10 to 55 Hz, maximum 5 G, 0.42 mm single amplitude for 2 h each in X, Y, and Z directions |
| Shock resistance | 150 m/s2, in each 6 directions 3 times |
| Ambient temperature (Operating) | −40 to 70°C |
| Ambient temperature (Storage) | −40 to 85°C |
| Ambient humidity (OperatingStorage) | 95% max. (Storage humidity: 95% max.) |
| Cooling fan | No |
| Degree of protection | IP20 by EN/IEC 60529 |
| Weight | 1200 g max. |
Give Us a Call for Omron 480W Programmable Output Supply S8VK-WB48048 at the lowest pricing. Technical Specs Summary of S8VK-WB48048 includes 1200 g weight, 1000ms max three phase at 400 VAc input, 10 A output current, 480 W power rating, 48 VDC, No cooling fan, IP20 by EN/IEC 65029, 95% max humidity, -40 to 85 degrees storage temperature, -40 to 70 degrees operating temperature, 150 m/s2 in each 6 directions 3 times shock resistance, 10 to 55 Hz vibration resistance, Green indicator, 48 to 56 V variable range, DIN track, Push-in terminal. Now's the Time to Secure a Quote for your requirement of Omron 480W Programmable Output Supply. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
