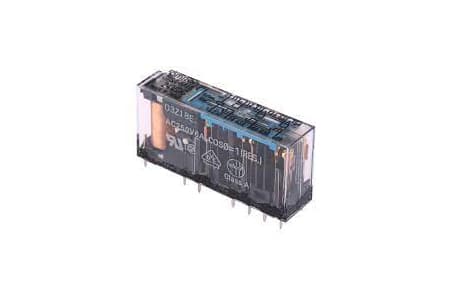

Omron Safety Relay: Forced Guided Relays & Contactor

IndMALL Automation offers reliable Omron Safety Relay for industrial applications. The Omron Safety Relay G7Z Series supports up to 40 A per pole. It’s perfect for industrial inverters, servo drivers, and motor switching. With 4-pole parallel connections, it handles up to 160 A. This relay operates with 30% less noise and is 50% smaller than standard contactors. The Omron Safety Relay G7SA ensures durability with 10,000,000 mechanical and 100,000 electrical operations. Operating conditions range from -40 to 85°C and support 5% to 85% humidity. Enhance your industrial safety with Omron Safety Relays from IndMALL Automation. Trust us for top-quality safety solutions.

Omron Safety Relay: G7Z Series

High Load Capacity: Supports 40 A per pole, 40 A at 480 VAC (80,000 ops), and 40 A at 440 VAC (80,000 ops).
Applications: Ideal for industrial inverters, servo drivers, motors, and equipment power switching.
Enhanced Capacity: Handles up to 160 A with 4-pole parallel connections.
Reduced Noise: 30% less operation noise (from 100 dB to 70 dB).
Compact Design: 50% smaller than standard electromagnetic contactors.

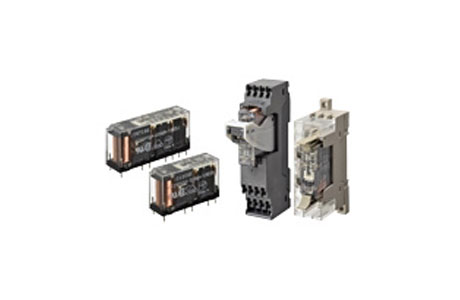

Omron Safety Relay G7SA

Performance: 100 mΩ contact resistance, 20 ms max operating time, 10 ms response time, 20 ms release time.
Voltage and Frequency: 75% max must operate voltage, 10% min must release voltage, 36,000 ops/hour mechanical, 1,800 ops/hour at rated load.
Durability: 10,000,000 mechanical operations, 100,000 electrical operations at rated load.
Electrical Characteristics: 1,000 MΩ insulation resistance, dielectric strength of 4,000 VAC (coil to contacts, different polarity contacts), and 1,500 VAC (same polarity contacts).
Operating Conditions: -40 to 85°C (12-48 VDC), -40 to 60°C (110 VDC), 5% to 85% humidity.

Omron Force Guided Relay: G7S-[]-E Series

Contact resistance of 100 mΩ max, operating and release times at 50 ms max each, must operate voltage 80% max, and must release voltage 10% min.
Mechanical frequency: 18,000 operations/h, rated load frequency: 1,800 operations/h, with 10,000,000 mechanical operations and 100,000 electrical operations at rated load.
Insulation resistance: 100 MΩ min, dielectric strength: 4,000 VAC (coil to contacts) and 2,500 VAC (other configurations).
Vibration resistance: 10 to 55 Hz at 0.75 mm amplitude (destruction), 0.375 mm (malfunction), shock resistance: 1,000 m/s² (destruction) and 100 m/s² (malfunction).
Inductive load switching: AC15 240V 5A (NO), DC13 24V 2A (NO), AC15 240V 3A (NC), DC13 24V 2A (NC).

Omron Safety Contactor: J7KC Series

Supports 15 A at 200-440 VAC (AC-1), 12 A at 200-440 VAC (AC-3), and 12 A at 24-220 VDC (DC-1).
NO contact handles AC15 240V 5A and DC13 24V 2A, while NC contact supports AC15 240V 3A and DC13 24V 2A.
Mechanical endurance of 10,000,000 operations and electrical endurance of 100,000 operations at rated load.
Vibration resistance ranges from 10-55 Hz at 0.75 mm (destruction) and 0.375 mm (malfunction); shock resistance is 1,000 m/s² (destruction) and 100 m/s² (malfunction).
Operates between -10 to +55°C, stores between -40 to +65°C, and withstands 45% to 85% humidity.

IndMALL Automation provides robust Omron Safety Relays for various industrial applications. Our Omron Safety Relay G7Z Series supports 40 A per pole, ideal for high-load tasks. It reduces operation noise by 30%, enhancing workplace safety. The G7SA model offers rapid operation with a 20 ms response time and high dielectric strength of 4,000 VAC. It ensures durability with 10,000,000 mechanical operations and 100,000 electrical operations at rated load.

Omron Safety Relays are designed to handle extreme conditions, operating from -40 to 85°C. They are compact, saving space in control panels while maintaining efficiency. These relays provide reliable switching for inverters, servo drivers, and motor applications. With IP20 protection, they ensure safety in diverse environments. The Omron Safety Relay J7KC Series supports multiple voltage ranges and offers high vibration and shock resistance.

Choose Omron Safety Relays from IndMALL Automation for top-tier industrial safety. Trust us for high-quality, durable safety solutions that meet stringent industry standards. Enhance your operational safety and efficiency with our advanced Omron Safety Relays.

Frequently Asked Questions

What is the Safety Relay?

A safety relay is a device that performs specific safety functions to protect both operators and machinery. It ensures that hazardous movements are stopped in a controlled and safe manner. For example, if a machine guard is opened, the safety relay will stop the machine to prevent injury.

Safety relays also monitor the position of movable guards and can interrupt dangerous movements if there is any intervention. They are designed to meet strict safety standards, ensuring reliable performance in critical situations. By using safety relays, you can ensure that your machinery operates safely, reducing the risk of accidents and enhancing overall workplace safety. These devices are essential in industrial settings where safety is a top priority.

How to Select a Safety Relay?

To select a safety relay, first define all safety requirements and functions for your application. Identify the specific safety functions needed, such as emergency stop or guard monitoring. Determine the necessary coil and contact conditions, ensuring the relay meets your operational demands.

Consider redundancy requirements to enhance reliability. A redundant safety relay provides a backup in case one component fails. Assess the environmental conditions where the relay will be used. Factors like temperature, humidity, and exposure to dust or chemicals can impact relay performance.

Choose a safety relay that meets relevant safety standards and certifications for your industry. Ensuring compatibility with your existing control systems is also crucial. By considering these factors, you can select a safety relay that effectively safeguards your machinery and personnel.

How many Channels are in a Safety Relay?

A safety relay typically has multiple channels to ensure redundancy and reliability. Most safety relays have two or three channels. Each channel is connected to a set of contacts, which can be either Normally Closed (NC) or Normally Open (NO).

For example, a three-channel safety relay might have:

Channel 1: Normally Closed (NC)
Channel 2: Normally Open (NO)
Channel 3: Normally Closed (NC)
These channels work together to monitor and control safety functions. The mechanical linkage ensures that all contacts operate simultaneously, providing a fail-safe mechanism. This setup enhances the safety relay’s ability to detect faults and ensure a controlled response, such as stopping a machine or shutting down a system in case of an emergency.

Choose IndMALL for the best Omron Safety Relay and exceptional customer support.
