Omron Safety Scanner: Laser Scanners OS32C
IndMALL Automation offers a range of Omron Safety Scanners. If you are looking for Omron Safety Scanners Dealer, Distributors, Suppliers in Chennai? Then you are in the right place. we offer competitive prices compared to other Omron dealers. Our collection includes the latest models, ideal for a variety of industrial applications.
Whether you’re in Bangalore, Hyderabad, Coimbatore, or anywhere in India, our range of Omron scanners ensures maximum safety with cutting-edge technology. These scanners are designed for flexibility and reliability, providing precise area monitoring and protection. Trust IndMALL Automation for top-quality Omron Safety Laser Scanners, tailored to your specific requirements.

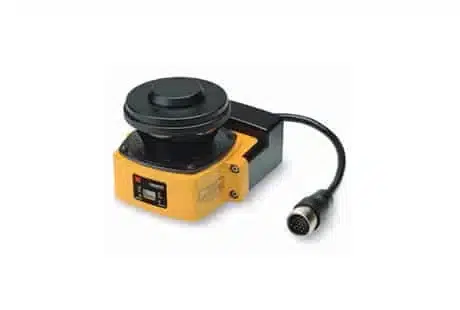

Omron Safety Scanner: OS32C Series
Features:
- Sensor Type: Type 3 Safety Laser Scanner.
- Detection Capability: Configurable; detects non-transparent objects with diameters of 30, 40, 50, 70mm.
- Monitoring Zone: Safety Zone up to 3.0 m and Warning Zone up to 15.0 m.
- Detection Angle: 270°; Angular Resolution: 0.4°.
- Response Time: From 80 ms to 680 ms; Power Supply: 24 VDC +25%/-30%.
- Outputs: Safety outputs (OSSD) and auxiliary outputs.
- Operation Modes: Auto Start, Start Interlock, Start/Restart Interlock.
- Connection Type: Power Cable with 18-pin mini-connector, Communication Cable with M12, 4-pin connector.
- Indicators: RUN, STOP, Interlock, Warning Output indicators, and status/diagnostic display.
- Enclosure Rating: IP65; Dimensions: 133.0 x 104.5 x 142.7 mm.
Frequently Asked Questions
What is a Safety Scanner?
A safety scanner is an advanced device used for area monitoring and protection. It uses laser technology to detect objects or people within a predefined area. This ensures safety by preventing accidents in industrial environments. It’s commonly used around machinery, robots, and other hazardous areas to maintain safe operations.
What is the Purpose of a Safety Laser Scanner?
A safety laser scanner’s primary purpose is to protect personnel and equipment in industrial settings. It continuously scans a predefined area with a laser beam to detect intrusions. When an object or person enters the monitored zone, the scanner triggers a safety response, such as halting machinery, to prevent accidents and ensure workplace safety.
What is the Difference Between a Laser Scanner and a Light Curtain?
A laser scanner uses a rotating laser to continuously monitor a defined area, detecting objects in 2D space. It’s flexible and can cover irregular shapes. A light curtain, on the other hand, consists of aligned photoelectric transmitters and receivers, forming a protective screen. It detects objects breaking the light beams, ideal for linear or flat areas.
Get the best prices for an Omron Safety Scanner.
