Omron Timers: Analog, Digital & Multifunction Timer in Chennai

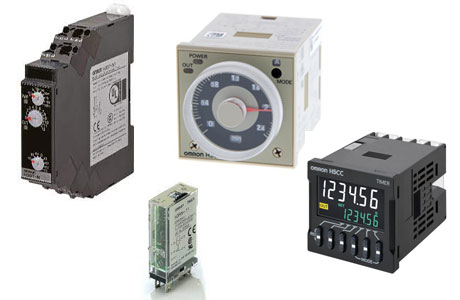

IndMALL offers a diverse range of Omron timers for every need. Our collection includes the precise Omron delay timer and the convenient Omron on delay timer. For those who prefer digital, we stock both Omron digital timers and individual Omron digital timer units.

The Omron 8-pin timer promises seamless integration, while the Omron 24-hour timer caters to day-long operations. Need flexibility? The Omron on off timer and Omron dual timer are perfect fits. We also offer the versatile Omron multifunction timer and the classic Omron analog timer. Find the perfect timer for your requirements at IndMALL, your trusted source in Chennai.

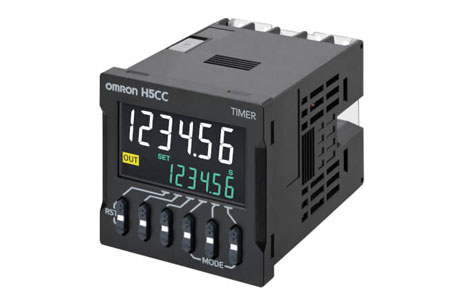

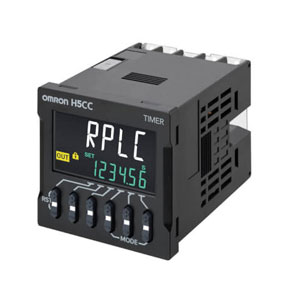

Omron Timers: H5CC Series

Voltage Options: 100-240 VAC, 12-48 VDC/24 VAC, 24-240 VDC/24-240 VAC.
Mounting: Flush, surface, DIN track options.
Connections: Screw terminals, 11-pin or 8-pin socket.
Display: 6-digit, 7-segment LCD; Time Ranges: 0.001 s to 999999 h.
Modes: Elapsed time, remaining time; Inputs: Signal, Reset, Gate.
Outputs: Multiple modes, contact and transistor options.
Temperature Range: -10 to 55°C; Protection: IP66 for panel surface.

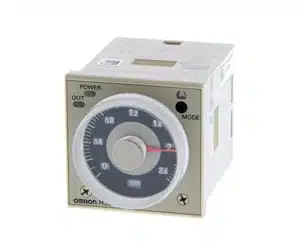

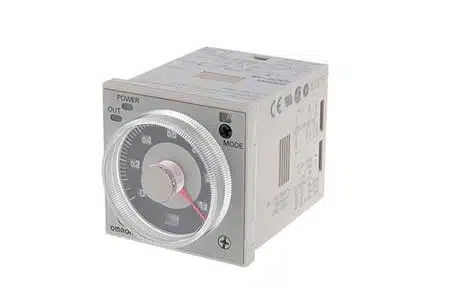

Omron H3CR-A Timers

Operating Modes: Multiple, including ON-delay, Flicker OFF/ON start, Signal ON/OFF-delay, Interval, One-shot.
Pin Types: 11-pin and 8-pin models.
Input Type: No-voltage and voltage input options.
Output Type: Relay output (DPDT) for most models, transistor output (NPN/PNP universal) for some.
Mounting Method: DIN track, surface, and flush mounting.
Rated Operating Voltage: Options include 100 to 240 VAC, 24 to 48 VAC, 12 to 48 VDC.

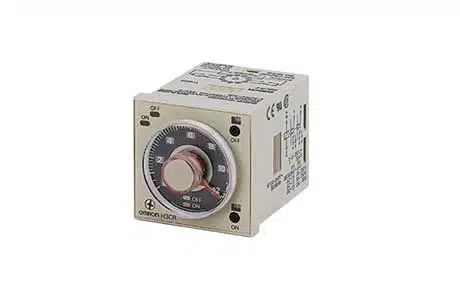

Omron Dual Timer: H3CR-F Series

Operating Modes: Flicker OFF start, Flicker ON start.
Pin Types: 11-pin and 8-pin models.
Mounting Method: DIN track, surface, and flush mounting.
Rated Operating Voltage: AC-15: 250 VAC, 3 A; AC-13: 250 VAC, 5 A; DC-13: 30 VDC, 1.5 A.
Rated Insulation Voltage: 250 V; Time Ranges: Multiple, from 0.05 s to 300 h.
Power Supply Voltage Options: 100 to 240 VAC 50/60 Hz/100 to 125 VDC, 24 to 48 VAC 50/60 Hz/12 to 48 VDC.
Control Outputs: Contact output: 5 A at 250 VAC/30 VDC, resistive load.

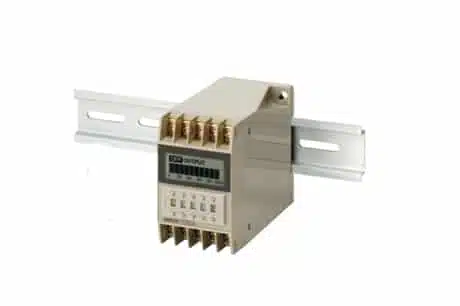

Omron Digital Timers: H3CA Series

Time Ranges: Adjustable from 0.1 s to 9,990 hrs with thumbwheel switch modules.
Rated Supply Voltage: 24 to 240 VAC (50/60 Hz), 12 to 240 VDC.
Operating Voltage Range: 85% to 110% of rated supply voltage.
Power Consumption: Varies by model, up to approx. 10 VA/1.5 W.
Control Outputs: 3 A at 250 VAC, resistive load; Accuracy of Operating Time: ±0.3% ±0.05 s.
Reset Time: Depending on the model, 0.1 s to 0.5 s max.
Insulation Resistance: 100 MΩ min. (at 500 VDC); Dielectric Strength: 2,000 VAC for 1 min.

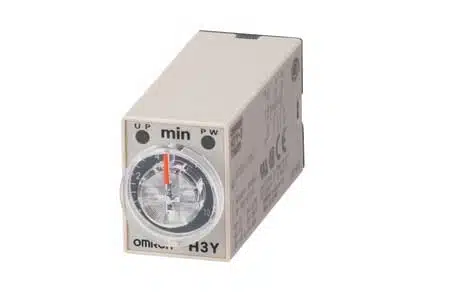

Omron Timer Relay H3Y

Time Ranges: Adjustable from 0.04 s to 60 min, with various settings.
Rated Supply Voltage: 100 to 230 VAC (50/60 Hz), 12 to 125 VDC.
Operating Voltage Range: 85% to 110% of rated supply voltage.
Power Consumption: Varies by voltage, up to 1.8 VA (AC) and 1.3 W (DC).
Control Outputs: 5 A at 250 VAC (H3Y-2), 3 A at 250 VAC (H3Y-4), resistive load.
Accuracy of Operating Time: ±1% FS max; Reset Time: 0.1 s max.
Insulation Resistance: 100 MΩ min. (at 500 VDC); Dielectric Strength: 2,000 VAC for 1 min.

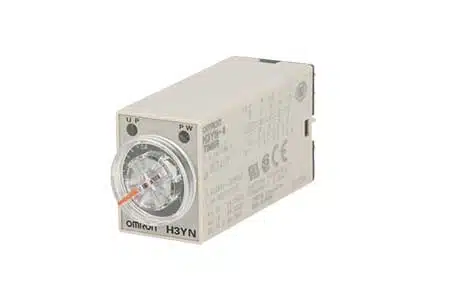

Omron Solid State Timer: H3YN

Time Ranges: selectable, 0.1 s to 10 min or 0.1 min to 10 h.
Rated Supply Voltage: 24, 100 to 120, 200 to 230 VAC (50/60 Hz); 12, 24, 48, 100 to 110, 125 VDC.
Operating Modes: ON-delay, interval, flicker OFF start, flicker ON start.
Power Consumption: Varies by voltage, up to 2.2 VA (AC) and 1.6 W (DC).
Control Outputs: DPDT: 5 A at 250 VAC; 4PDT: 3 A at 250 VAC.
Accuracy of Operating Time: ±1% FS max; Reset Time: 0.1 s max.
Insulation Resistance: 100 MΩ min. (at 500 VDC); Dielectric Strength: 2,000 VAC for 1 min.

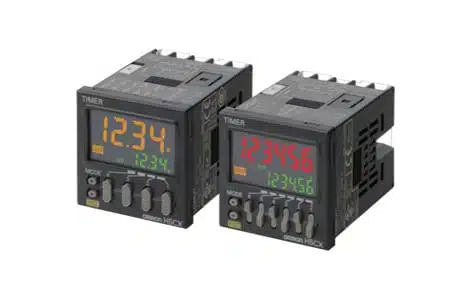

Omron Multifunction Timer: H5CX Series

Body Depth: Reduced for compact control panels.
Display: Large characters, red/green/orange options.
Operation: Simplified with Up/Down Keys.
Safety: Isolated power supply and input circuits.
Set Value Limit: Prevents operational errors.
Output Counter: Monitors output activation frequency.
Front Panel: Optional colors available.
Input: Universal NPN/PNP compatibility.

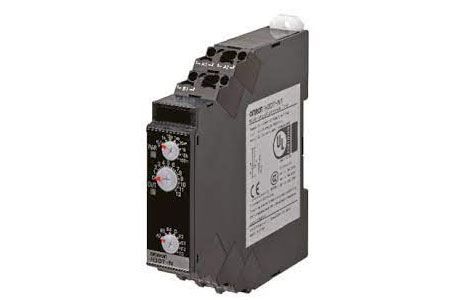

Omron On Delay Timer: H3DT-A Series

Operation: Single mode with power ON delay.
Low Power Consumption: Reduces DC power supply load in control panels.
Wiring: Push-In Plus terminal blocks for easy, tool-free wiring.
Reliability: No need for retightening, ensuring secure connections.
Ease of Use: Simple wire insertion, similar to an earphone jack.

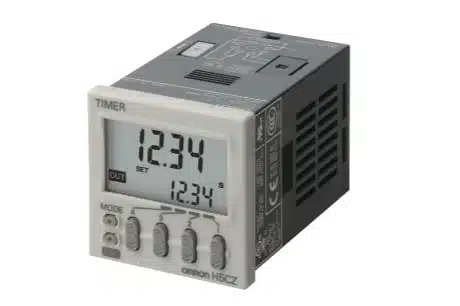

Omron Digital Timer: H5CZ Series

Readability: Character height of 10 mm for clear visibility.
Operation: Simplified with Up/Down Keys for each digit on 4-digit models.
Safety and Reliability: Isolated power supply and input circuits for enhanced safety.
Set Value Limit: Allows setting an upper limit to prevent operational errors.
Output Counter: Counts the number of times the output turns ON, useful for service life management.
Modes: 15 selectable modes, including a stopwatch mode.

Omron H5F Time Switch

Voltage: 100-240 VAC (50/60 Hz).
Power Consumption: Approx. 2.4 VA.
Control Output: SPST-NO, 15 A at 250 VAC, 10 A at 24 VDC.
Connections: Screw terminals (M3.5); Accuracy: ±0.01% ±0.05 s max.
Insulation Resistance: 100 MΩ min; Dielectric Strength: 2,000 VAC for 1 min.
Temperature Range: Operating -10°C to 55°C, Storage -25°C to 65°C.

Omron On Off Timer: H3DT-H Series

Voltage: 100-240 VAC (50/60 Hz).
Power Consumption: Approx. 2.4 VA.
Control Output: SPST-NO, 15 A at 250 VAC, 10 A at 24 VDC.
Connections: Screw terminals (M3.5); Accuracy: ±0.01% ±0.05 s max.
Insulation Resistance: 100 MΩ min; Dielectric Strength: 2,000 VAC for 1 min.
Temperature Range: Operating -10°C to 55°C, Storage -25°C to 65°C.

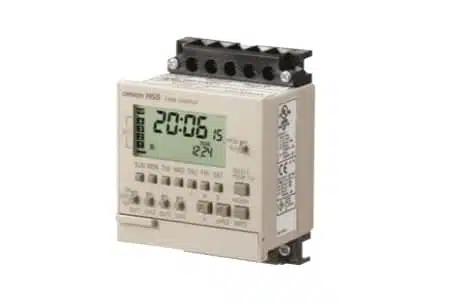

Omron Digital Timer Switch: H5S Series

Voltage: 100-240 VAC (50/60 Hz), 24 VDC.
Power Consumption: Approx. 2.9 VA (VAC), 0.8 W (VDC).
Outputs: SPST-NO × 2 or 4 circuits.
Load Capacity: 15 A at 250 VAC (resistive), 10 A at 250 VAC (inductive).
Temperature Range: Operating -10 to 55°C, Storage -25 to 65°C.
Accuracy: ±0.01% ±0.05 s max
Insulation Resistance: 100 MΩ min; Dielectric Strength: 2,950 VAC for 1 min.

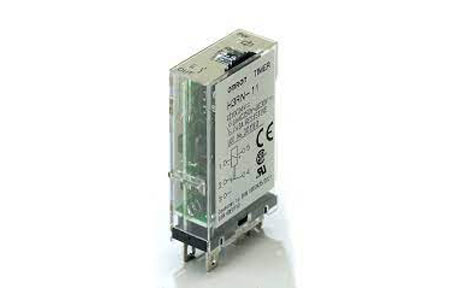

Omron Timer Relay: H3RN Series

Time Ranges: 0.1 s to 10 min/h.
Voltage: 24 VAC, 12/24 VDC.
Modes: ON-delay, interval, flicker start.
Power Consumption: Up to 0.8 VA (VAC), 0.5 W (VDC).
Output: 3 A at 250 VAC; Accuracy: ±1% FS max.
Reset Time: Up to 0.5 s; Temperature Range: -10°C to 55°C.
Insulation Resistance: 100 MΩ min; Dielectric Strength: 2,000 VAC.

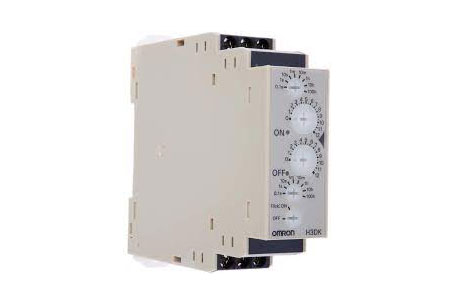

Omron Timer Switch: H3DK-F Series

Time Ranges: Adjustable from 0.1 s to 1,200 h across various settings.
Power Supply Voltage: Options include 24 to 240 VAC/DC, 50/60 Hz, and 12 VDC.
Power Consumption: Up to 4.5 VA (240 VAC) and 0.6 W (12 VDC).
Control Output: 5 A at 250 VAC with resistive load, 5 A at 30 VDC with resistive load.
Accuracy of Operating Time: ±1% of FS max.
Insulation Resistance: 100 MΩ min. at 500 VDC.
Dielectric Strength: 2,000 VAC for 1 min.

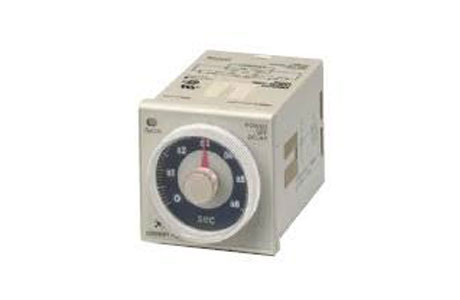

Omron Off Delay Timer: H3CR-H Series

Operating Methods: Various, including time-limit reset.
Pin Types: 8-pin, 11-pin; Output: Relay (DPDT, SPDT).
Mounting: DIN track, surface, flush.
Voltage: 100-240 VAC/VDC, 48 VDC, 100-125 VDC.
Time Ranges: 0.05 s to 12 s.
Power Consumption: Up to 0.35 VA.
Control Output: 5 A at 250 VAC/30 VDC.

At IndMALL Automation, we offer a comprehensive range of Omron Timers, essential for various industrial applications. Our collection includes the versatile Omron H3CR-A timer, known for its adjustable settings and reliability. These industrial timers, particularly the Omron timer H3CR and Omron timer relay models, are designed for precision and ease of integration into complex systems.

Our industrial digital timers, including the Omron H3CR-A, are ideal for precise time control in manufacturing and automation. These timers are not just tools but integral solutions for enhancing efficiency in industrial settings. With a focus on quality and performance, IndMALL Automation is committed to providing top-tier Omron timers, ensuring accuracy and productivity in your industrial operations.

Product List:

Model No	Size	Installation Type	Time Range	Output Type	Terminal
H3CR-A-301 100-240AC/100-125DC	1/16 DIN (48 x 48 mm)	Socket	0.1 s – 600 h	Relay	Plug-in
H3DT-N1 24-240VAC/DC	17.5 mm	DIN Rail	0.1 s – 1200 h	Relay	Push-in
H3CR-A-AC24-48-DC12-48	1/16 DIN (48 x 48 mm)	Socket	0.05 s – 300 h	Relay	Plug-in
H5CC-A	1/16 DIN (48 x 48 mm)	On-panel	–	Relay	Screw

Our product list at IndMALL Automation features a selection of Omron timers, each designed with specific characteristics to suit a variety of industrial applications:

The H3CR-A-301 100-240AC/100-125DC model is a 1/16 DIN (48 x 48 mm) timer, suitable for socket installation. It offers a time range of 0.1 seconds to 600 hours and features a relay output type with plug-in terminals.

The H3DT-N1 24-240VAC/DC model, with its compact 17.5 mm size, is designed for DIN rail installation. It provides a time range of 0.1 seconds to 1200 hours, also featuring a relay output type, but with push-in terminals for easy connection.

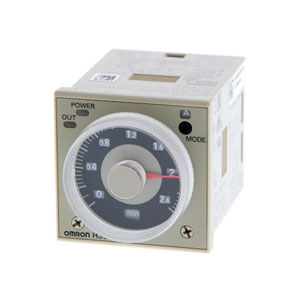

Another model, the H3CR-A-AC24-48-DC12-48, matches the 1/16 DIN (48 x 48 mm) size and is suitable for socket installation. It offers a time range from 0.05 seconds to 300 hours, with a relay output type and plug-in terminals.

H5CC-A model is a 1/16 DIN (48 x 48 mm) timer designed for on-panel installation. While the time range is unspecified, it features a relay output type with screw terminals.

Each of these models is tailored to provide efficient and reliable timing solutions in various industrial settings.

Frequently Asked Questions

What is Omron timer?

An Omron timer is a device produced by the Omron Corporation. It’s designed to measure and control time intervals for various applications. Used widely in industrial and automation settings, Omron timers ensure precision and reliability for tasks requiring timed operations or delays.

what is the function of timer in omron?

An Omron timer is an electronic tool. It manages and controls time intervals for tasks. This helps in automating processes in industries and homes.

How do you Set an Omron Timer?

To set an Omron timer, you usually follow these steps:

Turn the power on to the timer.
Use the mode or select button to choose the desired function.
Adjust the time settings using the up or down buttons.
Confirm or save the settings as directed.

However, specific steps can vary by model. Always check the user manual for the particular Omron timer you’re using.

How does a Omron H3CR timer work?

The Omron H3CR Timer is a versatile series of timers from the Omron Corporation, designed for industrial applications.

Mode Selection: The H3CR offers multiple modes, such as on-delay, off-delay, and interval. The user selects the desired mode based on the operation.

Time Setting: Using the front panel, users can set the time range (from seconds to hours) and adjust the desired timing within that range.

Signal Input: When the timer receives an input signal (like from a switch or another device), it starts its timing operation based on the selected mode.

Output: After the set time elapses, the H3CR activates or deactivates its output relay, controlling the connected device or process accordingly.

Reset: Many operations allow for manual or automatic reset, preparing the timer for its next cycle.

Always consult the specific H3CR manual for precise operation details and safety guidelines.
