Optex Photoelectric Sensor: Photoelectric Beam Detector
Optex Photoelectric Sensor offers advanced sensing solutions for diverse industrial needs. Our range includes the Z3, ZM, E, J, S, CR, and V Series, each designed for specific applications. optex photoelectric detector sensors feature Through-beam, Retro-reflective, Diffuse-reflective, and other technologies, ensuring precision in detecting objects or changes in the environment.
With varying sensing distances, robust designs, and environmental resistance, optex beam sensors are ideal for a wide range of applications. They incorporate features like Red and Infrared LED light sources, adjustable control outputs, and high durability. At IndMALL, we provide Optex Photo sensors that combine reliability and efficiency, tailored to meet your industrial requirements.

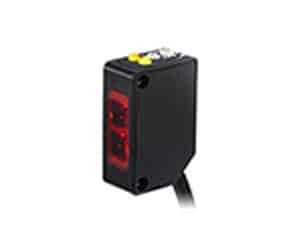

Optex Z3 Series
- Types: Through-beam, Retro-reflective, Diffuse-reflective.
- Sensing Distance: Up to 25 m.
- Light Source: IR LED / Red LED.
- Response Time: ≤ 500 µs.
- Control Output: NPN/PNP, Max 100 mA/30 VDC.
- Connection: Cable or Connector.
- Supply Voltage: 10 to 30 VDC.
- Protection: IP67.
- Operating Conditions: -25 to 55°C, 35 to 85% RH.
Optex ZM Series
- Types: Through-beam, Retro-reflective, Diffuse-reflective.
- Sensing Distance: Up to 30 m (Through-beam); 0.01-5.5 m (Retro-reflective); 0-800 mm (Diffuse-reflective).
- Light Source: 4 element red LED.
- Response Time: ≤ 500 µs.
- Control Output: NPN/PNP, Max. 100 mA/30 VDC.
- Protection: IP67, IP69K (Cable), IP67g (Connector).
- Environment: -25 to +55°C, 35-85% RH; Vibration and Shock Resistant.
- Connection: Cable (ø4, 2m) or Connector (M8, 4-pin).
Optex E Series
- Sensing Types: Through-beam, Diffuse-reflective, Limited diffuse-reflective.
Sensing Distance: 8 mm to 500 mm.
Output Mode: Light ON, Dark ON.
Light Source: Red LED.
Spot Size: ø10 mm at 10 mm to ø140 mm at 500 mm.
Smallest Detectable Object: ø0.8 mm to ø1.2 mm.
Response Time: 0.25 ms to 0.5 ms.
Power Supply: 12 to 24 VDC ±10%.
Degree of Protection: IP67.
Material: Polycarbonate (PC).
Weight: Approx. 2-3 g without cable.
Optex J Series
- Performance: High-speed response ≤ 0.5 ms.
Design: Water and vibration resistant, mounting hole pitch 10-25.4 mm.
Range: Sensing up to 10 m (Through-beam), 3 m (Retro-reflective), 800 mm (Diffuse-reflective).
Light Source: Infrared LED (Through-beam), Red LED (other types).
Output: NPN/PNP Open collector, Max. 100 mA/30 VDC.
Control Input: 2-turn potentiometer with indicator.
Durability: Shock resistant up to 100 G; -25 to +55°C, 35-85% RH.
Power: 10 to 30 VDC, including 10% ripple.
Protection: IP67/IP67g, IEC and JEM standards.
Optex S Series
- Performance: High-speed response time of 0.5 ms or less
- Range: Sensing distances up to 4 m (Through-beam), 1.5 m (Retro-reflective), 200 mm (Diffuse-reflective)
- Light Source: Red LED
- Output: NPN/PNP type Open collector, Max. 100 mA/30 VDC
- Control Input: 1-turn potentiometer for distance adjustment
- Power: 10 to 30 VDC, including 10% ripple (p-p)
- Degree of Protection: IEC standard, IP67
Optex CR Series
- Types: Through-beam, Retro-reflective, Diffuse-reflective, Limited diffuse-reflective.
Sensing Distance: Up to 25 m (Through-beam), 4 m (Retro-reflective), 1 m (Diffuse-reflective), 400 mm (Limited).
Light Source: Red LED / Infrared LED.
Spot Size: ø5 mm at 110 mm to ø1600 mm at 25 m.
Supply Voltage: 10 to 30 VDC, 10% ripple included.
Current Consumption: Emitter: ≤ 20 mA, Receiver: ≤ 25 mA.
Response Time: ≤ 500 µs.
Control Output: NPN/PNP Open collector, Max. 100 mA/30 VDC.
Output Mode: Light ON / Dark ON, selectable.
Connection: 4-wire 2m cable.
Protection: IP67.
Optex V2 Series
- Performance: Response time as fast as 0.5 ms
- Range: Sensing distances up to 70 m
- Light Source: Red LED
- Design: Robust with IP67 protection
- Output: Relay or NPN/PNP open collector, depending on model
- Control Input: 2-turn endless potentiometer with indicator
- Durability: Operational in -25 to +55°C, 35 to 85% humidity
- Power: Universal voltage type (24 to 240 VAC/DC); DC power type (10 to 30 VDC)

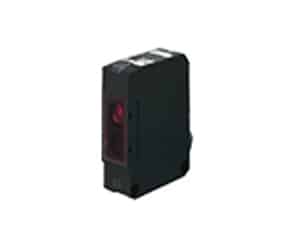

Optex V Series
- Performance: Response time up to 1.5 ms (DC power) and 20 ms (Universal voltage)
- Design: Compact, robust with easy-install terminal block
- Range: Sensing up to 40 m (Universal voltage through-beam)
- Output: NPN/PNP open collector (DC), Relay
- Durability: -25 to +55°C, 35-85% RH, IP67 rated
- Power: 10-30 VDC (DC), 12-240 VDC / 24-240 VAC
Product List:
Model No |
Image |
Sensing Method |
Sensing Distance |
Response Time |
Light Source |
Connection Method |
|---|---|---|---|---|---|---|

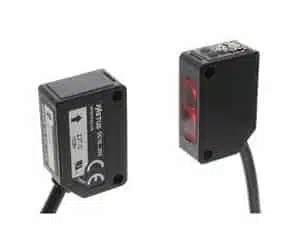

| Z3T-2500N |  |
Through-Beam | 82.02′ (25m) | 500µs | Red (632nm) | Cable |

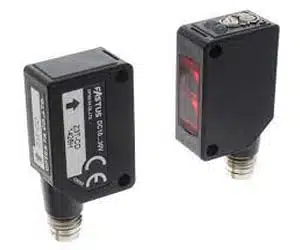

| Z3T-2500CN4 |  |
Through-Beam | 82.02′ (25m) | 500µs | Red (632nm) | Connector, M8 |

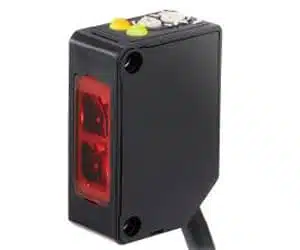

| Z3R-400N |  |
Retroreflective | 0.394″ ~ 157.48″ (10mm ~ 4m) | 500µs | Red (632nm) | Cable |

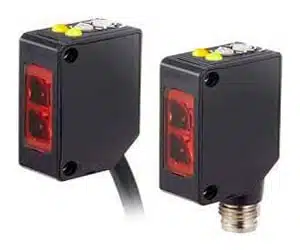

| Z3D-100N |  |
Reflective, Diffuse | 0″ ~ 39.37″ (0m ~ 1m) | 500µs | Red (632nm) | Cable |

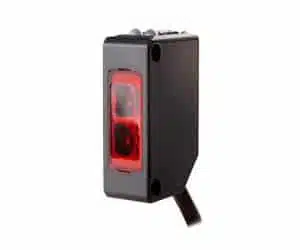

| Z3D-100P |  |
Reflective, Diffuse | 0″ ~ 39.37″ (0m ~ 1m) | 500µs | Red (632nm) | Cable |
Our Dealing Photoelectric Sensor Brands
Frequently Asked Questions
What is photoelectric type detector?
Is IR sensor a photoelectric sensor?
Yes, an IR sensor is a type of photoelectric sensor. It employs infrared light to detect objects or changes in its environment. These sensors monitor the infrared beam’s presence, interruption, or reflection to initiate a response. They are widely used in various applications, including motion detection and object recognition.
What is the size of photoelectric sensor?
The size of a photoelectric sensor varies based on its design and application. Commonly, these sensors range from compact models to larger ones. For instance, U-shaped sensors in the BUP series offer 30 mm and 50 mm sensing distances. Their size allows adaptability for a diverse array of applications, ensuring versatility in use.
