Panasonic Photoelectric Sensor: Diffuse & Micro Photo Sensor
Explore the range of Panasonic Photoelectric Sensors at IndMALL Automation. We offer a wide variety of Panasonic photo sensors, including the popular Panasonic diffuse photoelectric and micro photoelectric sensors.
We also have the dependable Panasonic through beam sensors. Known for accuracy, our lineup features series such as EX-Z, EX-10S, EX-20, EX-30, EQ-500, and CY-100. Trust IndMALL for the finest in Panasonic’s photo sensor technology.

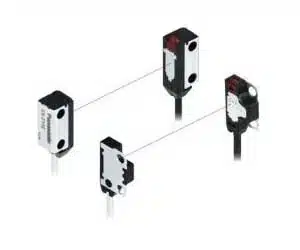

Panasonic Photoelectric Sensor EX-Z
- Thickness: 3mm, the world’s thinnest with a built-in amplifier.
- Sensing Range: Up to 50 mm.
- Minimum Sensing Object: ø0.3 mm opaque object.
- Supply Voltage: 12 to 24 V DC ±10%.
- Output: PNP/NPN open-collector transistor.
- Response Time: 0.5 ms or less; Cable: 2 m long, extendable up to 50 m.
- Indicators: Orange and Green LEDs for output and stability.

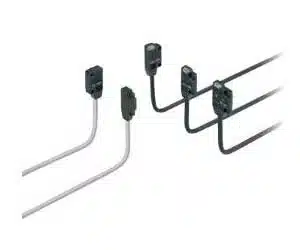

Panasonic Photoelectric Sensors EX-10S
- Dimensions: Ultra-slim at 14.5 x 3.5 x 10mm.
- Sensing Range: Long-range sensing up to 1m.
- Minimum Sensing Object: Detects objects as small as 0.5mm in diameter.
- Response Time: 0.5 ms or less.
- Supply Voltage: 12 to 24 V DC ±10%, Ripple P-P 10% or less.
- Current Consumption: Emitter and Receiver: 10 mA or less.
- Output: PNP/NPN open-collector transistor, max 50 mA.
- Cable Extension: Up to 50m with 0.3 mm² or more cable.

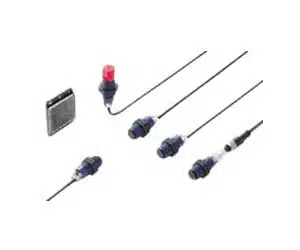

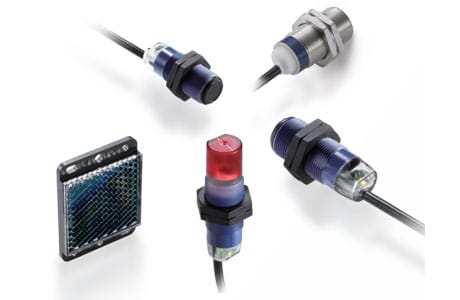

Panasonic Cylindrical Photoelectric Sensor: CY-100 Series
Panasonic Cylindrical Photoelectric Sensor CY-100 Series offers:
- Types: Thru-Beam, Retroreflective (with and without polarization filters), and Diffuse Reflective.
- Designs: Standard (Axial) and Side-View (Radial) types for flexible mounting.
- Connection: Options for cable type or M12 plug-in connector.
- Features: Diffuse Reflective types include sensitivity adjuster; and Thru-Beam types feature test input.

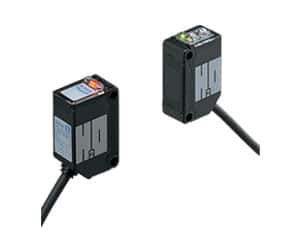

Panasonic Photo Sensor: EZ-10 Series
- Sensing Range: Up to 5 meters (16.404 ft) without container or pipe.
- Sensing Object: ø12 mm or larger liquid containing water, or opaque object.
- Supply Voltage: 12 to 24 V DC ±10%, Ripple P-P 10% or less.
- Current Consumption: Emitter and Receiver: 25 mA or less.
- Output: PNP/NPN open-collector transistor, max current: 100 mA.
- Response Time: 12 ms or less; Dimensions: W12 x H31 x D20 mm.

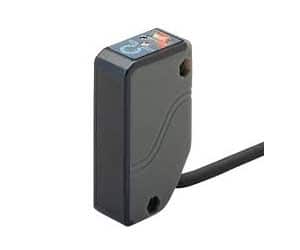

Panasonic Reflective Sensor: EQ-30 Series
- Sensing Range: 0.1 to 2m, adjustable.
- Detection Principle: Triangulation with 2m range.
- Output: PNP/NPN open-collector, max 100 mA.
- Response Time: 2 ms or less.
- Indicators: Red and Green LEDs; Supply Voltage: 10 to 30 V DC.
- Design: Compact, with background suppression.
- Connection: M12 connector or cable type.

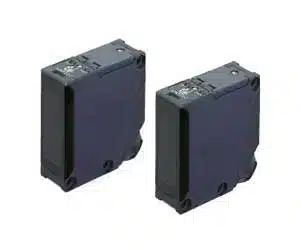

Panasonic Reflective Photo Sensor: EQ-500 Series
- Sensing Range: 0.2 to 2.5 meters, adjustable.
- Supply Voltage: 24-240 V AC or 12 to 240 V DC.
- Output: Relay contact 1a, up to 250 V AC 3 A / 30 V DC 3 A.
- Response Time: 20 ms or less.
- Indicators: Orange and Green LEDs.
- Material: ABS enclosure, Polycarbonate cover.
- Cable Length: Extendable up to 100 meters.

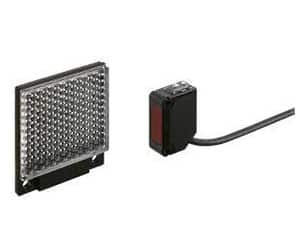

Panasonic Through Beam Sensor: CX-400 Series
- Types: Three thru-beam, five retro-reflective, and eight reflective types.
- Modes: Light ON/Dark ON switchable modes.
- Power Efficiency: Up to 60% less power consumption than previous models.
- Sensing Range: Up to 10 meters for certain models.
- Output: PNP or NPN open-collector transistor, max current 100 mA.
- Response Time: 1 ms or less.
- Cable Extension: Up to 100 meters with 0.3 mm² or more cable.

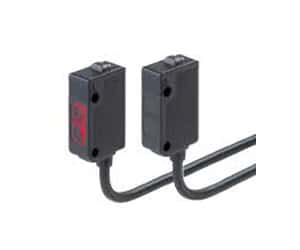

Panasonic Retro-Reflective Sensor: EX-40 Series
- Sensing Range: 5 to 38 mm with white non-glossy paper.
- Minimum Sensing Object: Dia. 0.2 mm copper wire.
- Repeatability: 0.1 mm or less; Supply Voltage: 12 to 24 V DC ±10%.
- Current Consumption: 35 mA or less; Response Time: 0.5 ms or less.
- Output: NPN open-collector transistor, max sink current 100 mA.
- Cable: 0.2 mm² 3-core, 2 m long, extendable up to 100 m.
- Indicators: Red LED for output, Green LED for stable condition.

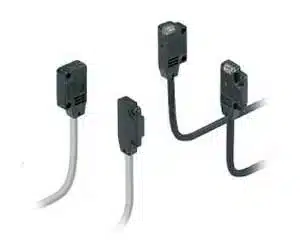

Panasonic Photo Sensors: EX-10 Series
- Dimensions: Ultra-miniaturized design, only 14.5 x 3.5 x 10mm.
- Range: Thru-beam version with a maximum range of 1000mm.
- Designs: Available in front sensing or side sensing light source.
- Response Time: Quick response with only 0.5ms.
- Power Consumption: Up to 35% less than previous models.
- Indicators: 2 LED indicators for operational status.
As a leading provider of industrial automation solutions in Coimbatore, Chennai, Hyderabad, Bangalore, Pondicherry, and PAN India, we are committed to offering high-quality products at competitive prices. Whether you’re looking for a specific Panasonic photo sensor or need help selecting the right product for your application, our team of experts is always available to assist you.
IndMALL Automation offers a select range of Panasonic photoelectric sensors, renowned for precision and reliability. Our collection includes advanced laser photoelectric sensors, ideal for various industrial applications. These Panasonic sensors are designed for high accuracy, ensuring efficient detection across diverse settings. Choose IndMALL Automation for top-quality Panasonic sensors, equipped with the latest in sensing technology.
Product List:
| Model No | Image | Output Operation | Sensing Range | Supply Voltage | Output | Operation Indicator |
|---|---|---|---|---|---|---|

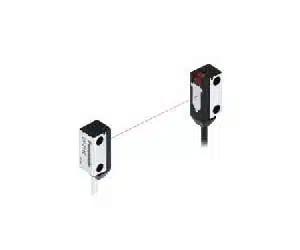

| EX-Z11A |  |
Light-ON | 50 mm 1.969 in | 12 to 24 V DC | NPN | Orange LED |

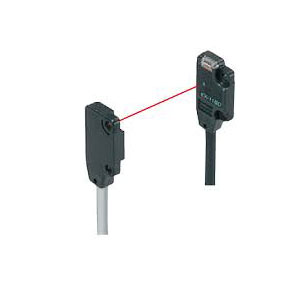

| EX-11A-C5 |
|
– | 150 mm 5.906 in | 12 to 24 V DC | NPN | Orange LED |

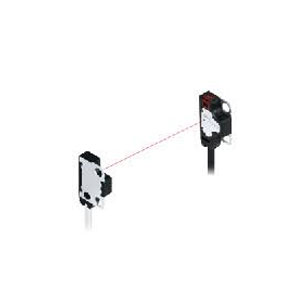

| EX-Z11FA |
|
Light ON | 50 mm 1.969 in | 12 to 24 V DC | NPN | Orange LED |

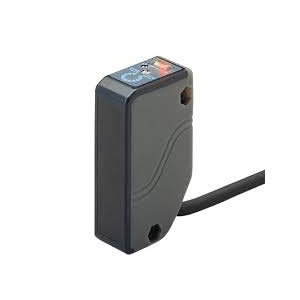

| EQ-34 |
|
Switchable either Detection-ON or Detection-OFF | 0.1 to 2 m 0.328 to 6.562 ft | 10 to 30 V DC | NPN | RED LED |
Frequently Asked Questions
What is a Panasonic Photoelectric Sensor?
A Panasonic photoelectric sensor is an electronic device used to detect the presence or absence of objects. It uses light-sensitive elements to emit and receive light, identifying changes in the light path.
These sensors are known for their precision, reliability, and versatility in various industrial applications. Panasonic offers a range of photoelectric sensors, including diffuse, through-beam, and retro-reflective types.
Is IR sensor a Photoelectric Sensor?
Yes, an IR sensor is a type of photoelectric sensor. It operates by emitting and detecting infrared light to sense objects. These sensors are commonly used in various applications for proximity detection and object recognition.
IR sensors are valued for their ability to detect objects without physical contact, offering reliable and non-intrusive sensing solutions.
What is the Voltage of Photoelectric Sensor?
Which type of Photoelectric Sensor has the Longest Range?
The type of photoelectric sensor with the longest range is typically the through-beam sensor. Through-beam sensors can detect objects over distances up to several meters, outperforming other types like diffuse and retro-reflective sensors.
Their design, where the emitter and receiver are positioned opposite each other, allows for this extended sensing range.
