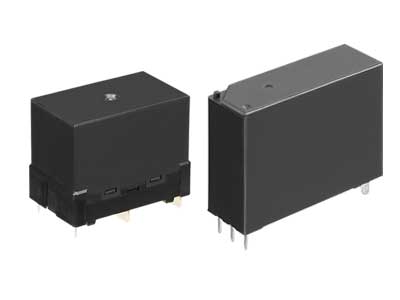

Panasonic Relay | Latching & PCB Power Relays
Panasonic Relays offer reliable switching for various applications. They ensure high performance and durability. Panasonic PCB Relays are designed for compact circuit boards, providing precise switching. Panasonic Signal Relays handle low-level signals accurately, ideal for communication devices. Panasonic Safety Relays ensure safe operations, meeting stringent safety standards.
IndMALL Automation provides a wide range of Panasonic Relays. Our products guarantee reliable performance and easy installation. Choose IndMALL Automation for quality Panasonic Power Relays.
Panasonic Relay: DW Series
High Capacity: Up to 16A at 277 VAC, with a 100A inrush capability.
- Compact Design: Fits high switching capacity in a small size.
- Energy Efficient: Latching relay ideal for energy-saving devices.
- High Reliability: Withstands stressful operating conditions, IEC60335-1 compliant.
- Robust Construction: Surge breakdown voltage of 12,000V, breakdown voltage of 5,000V.
- Versatile Use: Pin-in-paste construction allows reflow soldering.

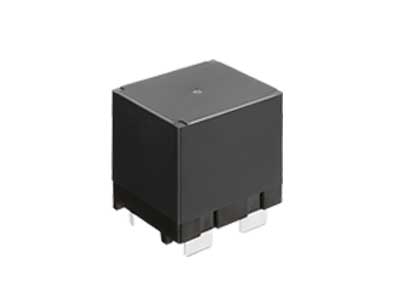

Panasonic PCB Relay: HE Series
High Capacity: Contact ratings of 35A, 48A, and 90A.
- Compact Design: Small case size for PCB mounting.
- Energy Efficient: Low coil holding voltage reduces power consumption.
- High Surge Breakdown Voltage: Up to 2.5kW.
- Large Contact Gap: 35A/48A – 2.5mm, 90A – 3.0mm.

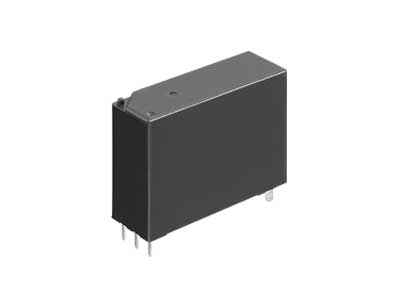

Panasonic Latching Relay: DJ-H SERIES
High Capacity: 50A at 277VAC, 20A at 347VAC for Canadian market.
- Manual Switch Lever: Available for easy testing and operation.
- Low Power Consumption: 1,000mW for single-coil, 2,000mW for double-coil latching.
- High Inrush Capability: Suitable for lighting control, shutters, and motor loads.
- Environmental Compliance: RoHS/REACH compliant, UL/C-UL approved.
- Robust Design: 4,000V isolation between contact and coil, 12kV surge breakdown voltage.
Panasonic Power Relay: HE-S Series
High Capacity: 35A at 277VAC for 50,000 cycles.
- Compact Size: 30 x 36 x 40 mm.
- Low Power Operation: 1,880 mW nominal, 170 mW coil holding power.
- Long Electrical Life: High-capacity resistive switching load.
- Mirror Contact Mechanism: Compliant with EN60947-4-1, 2 Form A and 1 Form B arrangement.
Panasonic HE-R Relay
High Capacity: 40A PCB relay for 3-phase systems.
- Compact Design: Saves space and reduces costs.
- Versatile: Ideal for inverters and wallbox designs.
- Feedback Contact: Optional NC contact handles low-level loads (10mA/5VDC).
- Robust Performance: Operates in temperatures from -40°C to +85°C.
Panasonic Power Relays offer reliable switching solutions for various applications. These relays ensure high performance and durability. Panasonic PCB Relays are designed for compact circuit boards. They provide efficient and precise switching. Panasonic Signal Relays handle low-level signals with high accuracy. These relays are ideal for communication devices and instruments.
Panasonic Safety Relays ensure safe and reliable operations in critical systems. They meet stringent safety standards. Panasonic Power Relays support high current loads. They are suitable for industrial and commercial applications. IndMALL Automation provides a wide range of Panasonic Relays. Our products guarantee reliable performance and long service life. Panasonic Relays are easy to install and maintain. They offer flexible configurations to meet various needs. Choose IndMALL Automation for quality Panasonic Power Relays.
Frequently Asked Questions
What is the function of 12V relay?
A 12V relay controls high current circuits using a low current signal. It is ideal for full voltage applications. Common uses include vehicle horns, headlights, auxiliary lamps, and fan motors. 12V relays ensure efficient control of high-power equipment. They are essential in modern vehicle electrical systems.
What is PhotoMOS?
A PhotoMOS is a semiconductor device featuring an LED input and a MOSFET output. It enhances device reliability and reduces size. PhotoMOS relays are used in various applications. They provide efficient and precise switching. These devices are essential for modern electronic systems.
How does a MOSFET relay work?
A MOSFET relay works by using an LED to control a MOSFET. The input driver circuit sends current through the LED, turning it on. The LED light travels through silicone resin. This light is converted to voltage by the PDA. The voltage activates the MOSFET, enabling current flow through the output circuit.
Choose IndMALL for the best Panasonic Relay and exceptional customer support.
