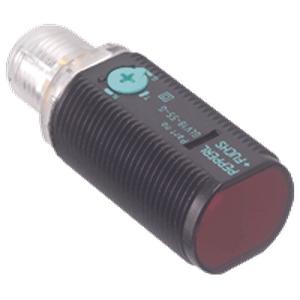

P&F Retroreflective Sensors GLV18-55/115/120
The technical specifications for the Pepperl Fuchs GLV18-55/115/120 are as follows:
- Type: Retro-reflective Photoelectric Sensor
- Sensing Distance: 4 meters
- Output: PNP
- Operating voltage: 10 to 30 VDC
- Light type: Visible Red Light
- Switching Frequency: 500Hz
- Electrical connection: 2-meter cable type
₹2,350.00
In stock
GLV18-55/115/120 Technical Specifications:
The Pepperl+Fuchs GLV18-55/115/120 Photoelectric Sensor is a retro-reflective type with an impressive 4-meter sensing distance. It utilizes a PNP output and operates on a voltage range of 10 to 30 VDC. This sensor also features a visible red light and a switching frequency of 500Hz. It comes equipped with a 2-meter cable-type electrical connection, providing easy installation and connectivity options.
| Effective detection range | 0 … 4 m | |
| Reflector distance | 0.05 … 4 m | |
| Threshold detection range | 5.5 m | |
| Reference target | reflector C110-2 | |
| Light source | LED | |
| Light type | modulated visible red light, 640 nm | |
| Polarization filter | yes | |
| Diameter of the light spot | approx. 200 mm at 5.5 m | |
| Angle of divergence | approx. 2 ° | |
| Optical face | frontal | |
| Ambient light limit | 30000 Lux | |
| Switching type | light/dark on | |
| Signal output | 2 PNP, complementary, short-circuit protected, open collectors | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA | |
| Voltage drop | ≤ 1.5 V DC | |
| Switching frequency | 500 Hz | |
| Response time | ≤ 1 ms | |
| Ambient temperature | -25 … 60 °C (-13 … 140 °F) | |
| Storage temperature | -40 … 70 °C (-40 … 158 °F) | |
| Degree of protection | IP67 | |
| Connection | 2 m fixed cable | |
| Mass | approx. 75 g | |
| Product standard | EN 60947-5-2 | |
| Cable | PVC | |
Product Documentation: GLV18-55/115/120
Here is the main technical specification of Pepperl Fuchs Photoelectric Sensor GLV18-55/115/120: Retro-reflective, Sensing: 4 meters, PNP, Cable type.
If you want to know all ranges of Pepperl Fuchs photo sensors you can check.
