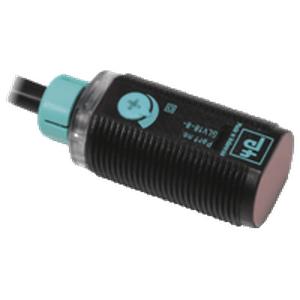

Pepperl Fuchs Diffuse Mode Sensors GLV18-8-450/115/120
The Technical specifications of GLV18-8-450/115/120:
- The sensor type is diffuse photoelectric.
- The sensing distance is adjustable and ranges from 50 to 450 mm.
- The output is 2 PNP, complementary, short-circuit protected, open collectors.
- The operating voltage range is from 10 to 30 VDC.
- The light source is modulated visible red light.
- The switching frequency is 500Hz.
- The electrical connection is made via a 2-meter fixed cable.
₹1,950.00
Out of stock
Pepperl Fuchs GLV18-8-450/115/120 Technical Specifications:
The P&F GLV18-8-450/115/120 is a diffuse photoelectric sensor with a variable sensing distance between 50 and 450 mm. It features 2 PNP open collectors with short-circuit protection and operates on a voltage range of 10 to 30 VDC. The light source is modulated visible red light with a switching frequency of 500Hz, and the device connects via a fixed 2-meter cable.
| Detection range | 50 … 450 mm adjustable | |
| Detection range max. | 0 … 450 mm | |
| Reference target | 100 mm x 100 mm Kodak white | |
| Light source | LED | |
| Light type | modulated visible red light, 640 nm | |
| Diameter of the light spot | approx. 30 mm at 400 mm | |
| Angle of divergence | approx. 4 ° | |
| Optical face | frontal | |
| Ambient light limit | 30000 Lux | |
| Hysteresis | < 15 % | |
| Operating voltage | 10 … 30 V DC | |
| No-load supply current | < 20 mA | |
| Switching type | light/dark on | |
| Signal output | 2 PNP, complementary, short-circuit protected, open collectors | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA | |
| Voltage drop | ≤ 1.5 V DC | |
| Switching frequency | 500 Hz | |
| Response time | ≤ 1 ms | |
| Ambient temperature | -25 … 60 °C (-13 … 140 °F) | |
| Storage temperature | -40 … 70 °C (-40 … 158 °F) | |
| Degree of protection | IP67 | |
| Connection | 2 m fixed cable | |
| Mass | approx. 75 g | |
| Product standard | EN 60947-5-2 | |
Product Documentation: GLV18-8-450/115/120
Here is the main technical specification of Pepperl Fuchs Photoelectric Sensor GLV18-8-450/115/120: diffuse photoelectric, 2 PNP, complementary, short-circuit protected, open collectors, cable type
If you want to know all ranges of Pepperl Fuchs photo sensors you can check.
