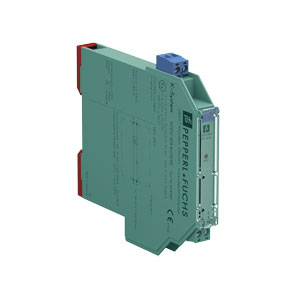

KCD0-SD3-Ex1-1245-SP: P&F 1-channel Isolated Barrier Solenoid Drivers
Technical Specifications of P&F 1-channel Isolated Barrier Solenoid Drivers KCD0-SD3-Ex1-1245-SP:
| Spec | Value |
|---|---|
| Signal type | Digital Output |
| Dimensions | 12.5 x 119 x 114 mm (0.5 x 4.7 x 4.5 inch) |
| Connection | screw terminals |
| Output current | 45 mA |
P&F 1-channel Isolated Barrier Solenoid Drivers KCD0-SD3-Ex1-1245-SP Technical Specifications:
| Specification | Value |
|---|---|
| Signal type | Digital Output |
| Safety Integrity Level (SIL) | SIL 2 |
| Systematic capability (SC) | SC 3 |
| Supply Connection | - |
| Rated voltage | loop powered |
| Rated current | - |
| Power dissipation | < 1.3 W |
| Power consumption | - |
| Connection side (Input) | control side |
| Connection (Input) | terminals 5+, 6- |
| Signal Level | 1-signal: 19 ... 30 V DC 0-signal: 0 ... 5 V DC |
| Inrush current(Input) | ≤ 200 mA after 100 µs |
| Connection side (Output) | field side |
| Connection (Output) | terminals 1+, 2- |
| Internal resistor | approx. 240 Ω |
| Current | typ. 45 mA |
| Voltage | ≥ 12 V |
| Output current | 45 mA |
| Switching frequency | max. 10 Hz |
| Display elements | LED |
| Control elements | - |
| Labeling | space for labeling at the front |
| Dimensions | 12.5 x 119 x 114 mm (0.5 x 4.7 x 4.5 inch) |
| Connection | screw terminals |
| Mounting | on 35 mm DIN mounting rail |
| Ambient temperature | -20 ... 70 °C (-4 ... 158 °F) |
| Degree of protection | IP20 |
| Mass | approx. 150 g |
Ask for the Pricing of P&F 1-channel Isolated Barrier Solenoid Driver KCD0-SD3-Ex1-1245-SP. This device features digital output with SIL 2 and SC 3 ratings, and it is loop-powered with a power consumption of less than 1.3 W. The control side connects via terminals 5+ and 6-, with a 1-signal voltage of 19-30 V DC and a 0-signal voltage of 0-5 V DC, supporting a current of up to 200 mA after 100 µs. The field side connects via terminals 1+ and 2-, with a resistance of approximately 240 Ω and a typical current of 45 mA at ≥ 12 V. It operates up to 10 Hz and includes an LED indicator. The device offers space for labeling at the front and mounts on a 35 mm DIN rail. Dimensions are 12.5 x 119 x 114 mm, it operates in temperatures from -20 to 70 °C, is IP20 rated, and weighs approximately 150 g. Unlock Exclusive Pricing with a Quote for your requirement of P&F 1-channel Isolated Barrier Solenoid Drivers. Trust us for competitive rates and dedicated support beyond other dealers.
