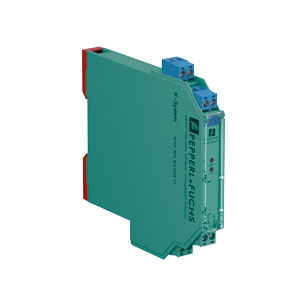

KCD0-SD3-Ex2-1545-Y1: P&F Digital Output, SIL 3 Solenoid Driver
Technical Specifications of P&F Digital Output, SIL 3 Solenoid Driver KCD0-SD3-Ex2-1545-Y1:
| Spec | Value |
|---|---|
| Signal type | Digital Output |
| Dimensions | 12.5 x 119 x 114 mm (0.5 x 4.7 x 4.5 inch) |
| Connection | screw terminals |
| Output current | 45 mA |
P&F Digital Output, SIL 3 Solenoid Driver KCD0-SD3-Ex2-1545-Y1 Technical Specifications:
| Specification | Value |
|---|---|
| Signal type | Digital Output |
| Safety Integrity Level (SIL) | - |
| Systematic capability (SC) | - |
| Supply Connection | - |
| Rated voltage | loop powered |
| Rated current | - |
| Power dissipation | < 2 W |
| Power consumption | - |
| Connection side (Input) | control side |
| Connection (Input) | terminals 5+, 6-; 7+, 8- limited electrical values : max. 30 V , max. 5 A |
| Signal Level | 1-signal: 18 ... 30 V DC 0-signal: 0 ... 5 V DC |
| Inrush current(Input) | ≤ 200 mA after 100 µs |
| Connection side (Output) | field side |
| Connection (Output) | terminals 1+, 2-; 3+, 4- |
| Internal resistor | approx. 167 Ω |
| Current | typ. 45 mA |
| Voltage | ≥ 15 V |
| Output current | 45 mA |
| Switching frequency | max. 10 Hz |
| Display elements | LED |
| Control elements | - |
| Labeling | space for labeling at the front |
| Dimensions | 12.5 x 119 x 114 mm (0.5 x 4.7 x 4.5 inch) |
| Connection | screw terminals |
| Mounting | on 35 mm DIN mounting rail |
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Degree of protection | IP20 |
| Mass | approx. 95 g |
Mail Us for P&F Digital Output, SIL 3 Solenoid Driver KCD0-SD3-Ex2-1545-Y1 at the lowest pricing. Technical Specs Summary of KCD0-SD3-Ex2-1545-Y1, are digital output and operates in a loop-powered configuration, consuming less than 2 W. The control side connects via terminals 5+, 6-; 7+, 8-, with limited electrical values of max. 30 V and max. 5 A, providing a 1-signal voltage of 18-30 V DC and a 0-signal voltage of 0-5 V DC. The device supports currents up to 200 mA after 100 µs. The field side connects via terminals 1+, 2-; 3+, 4-, with a resistance of approximately 167 Ω and a typical current of 45 mA at ≥ 15 V. It operates with a maximum switching frequency of 10 Hz. The unit includes an LED indicator and provides space for labeling at the front. Dimensions are 12.5 x 119 x 114 mm, and it mounts on a 35 mm DIN rail. It operates in temperatures ranging from -40 to 70 °C, with an IP20 rating, and weighs approximately 95 g. Navigate Your Needs with a Quote for your requirement of P&F Digital Output, SIL 3 Solenoid Driver. We excel in offering more cost-effective and supportive solutions than other Competitors.
