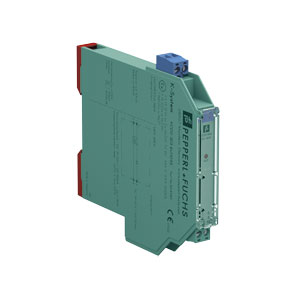

KCD2-SLD-Ex1-1065: P&F 65 mA Current Output Solenoid Drivers
Technical Specifications of P&F 65 mA Current Output Solenoid Drivers KCD2-SLD-Ex1-1065:
| Spec | Value |
|---|---|
| Signal type | Digital Output |
| Dimensions | 12.5 x 119 x 114 mm (0.5 x 4.7 x 4.5 inch) |
| Connection | screw terminals |
| Output current | 65 mA |
P&F 65 mA Current Output Solenoid Drivers KCD2-SLD-Ex1-1065 Technical Specifications:
| Specification | Value |
|---|---|
| Signal type | Digital Output |
| Safety Integrity Level (SIL) | SIL 3 |
| Systematic capability (SC) | SC 3 |
| Supply Connection | terminals 5+, 6- loop powered Power Rail or terminals 9+, 10- bus powered |
| Rated voltage | 19 ... 30 V DC loop powered |
| Rated current | 80 mA at 24 V |
| Power dissipation | 1.3 W at 24 V |
| Power consumption | - |
| Connection side (Input) | control side |
| Connection (Input) | terminals 5+, 6- |
| Signal Level | loop powered 1-signal: 19 ... 30 V DC 0-signal: 0 ... 5 V DC bus powered 1-signal: 15 ... 30 V DC (current limited to 5 mA) 0-signal: 0 ... 5 V DC |
| Inrush current(Input) | < 200 mA , 10 ms loop powered |
| Connection side (Output) | field side |
| Connection (Output) | terminals 1+, 2- |
| Internal resistor | 80 Ω |
| Current | typ. 65 mA |
| Voltage | typ. 10 V |
| Output current | 65 mA |
| Switching frequency | - |
| Display elements | LEDs |
| Control elements | DIP switch |
| Labeling | space for labeling at the front |
| Dimensions | 12.5 x 119 x 114 mm (0.5 x 4.7 x 4.5 inch) |
| Connection | screw terminals |
| Mounting | on 35 mm DIN mounting rail |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Degree of protection | IP20 |
| Mass | approx. 150 g |
Talk to Our Engineer for the P&F 65 mA Current Output Solenoid Driver KCD2-SLD-Ex1-1065. This solenoid driver features digital output with SIL 3 and SC 3 ratings. It supports both loop-powered (terminals 5+, 6-) and bus-powered (terminals 9+, 10-) configurations. The control side provides a 1-signal voltage of 19-30 V DC (loop powered) or 15-30 V DC (bus powered), and a 0-signal voltage of 0-5 V DC, with currents up to 200 mA and a 10 ms response time. The field side connects via terminals 1+ and 2-, with a resistance of approximately 80 Ω and a typical current of 65 mA at 10 V. The unit includes LED indicators and a DIP switch for settings, with space for labeling at the front. Dimensions are 12.5 x 119 x 114 mm, and it mounts on a 35 mm DIN rail. It operates in temperatures ranging from -20 to 60 °C, with an IP20 rating, and weighs approximately 150 g. Take the First Step with a Quote for your requirement of P&F 65 mA Current Output Solenoid Drivers.
