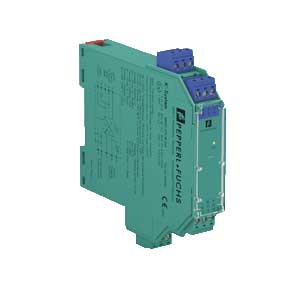

KFD2-STC5-Ex2: P&F Analog Output Transmitter Power Supplies
Technical Specifications of P&F Analog Output Transmitter Power Supplies KFD2-STC5-Ex2:
| Spec | Value |
|---|---|
| Signa Type | Analog input |
| Rated Voltage | 18 ... 30 V DC |
| Dimensions | 20 x 124 x 115 mm (0.8 x 4.9 x 4.5 inch) |
| Connection | screw terminals |
P&F Analog Output Transmitter Power Supplies KFD2-STC5-Ex2 Technical Specifications:
| Specification | Value |
|---|---|
| Signal type | Analog input |
| Safety Integrity Level (SIL) | SIL 2 |
| Systematic capability (SC) | SC 3 |
| Supply Connection | Power Rail or terminals 14+, 15- |
| Rated voltage | 18 ... 30 V DC |
| Ripple | within the supply tolerance |
| Rated current | - |
| Power dissipation | ≤ 1.4 W at maximum load |
| Power consumption | ≤ 2.6 W at maximum load |
| Connection side (Input) | field side |
| Connection (Input) | terminals 1+, 2-, 3; 4+, 5-, 6 |
| Input signal | 4 ... 20 mA |
| Open circuit voltage/short-circuit current (Input) | terminals 1+, 3; 4+, 6: 23 V / 25 mA |
| Input resistance | max. 265 Ω terminals 2-, 3; 5-, 6 , max. 330 Ω terminals 1+, 3; 4+, 6 |
| Available voltage | ≥ 16 V at 20 mA ; ≥ 20 V at 4 mA , terminals 1+, 3; 4+, 6 |
| Connection side (Output) | control side |
| Connection (Output) | terminals 7+, 8-, 9-; 10+, 11-, 12- (sink), terminals 7-, 8+, 9+; 10-, 11+, 12+ (source) |
| Load | 0 ... 600 Ω |
| Output signal | 4 ... 20 mA (overload > 25 mA) |
| Frequency range | field side into the control side: band width with 1 Vpp signal 0 ... 7.5 kHz (-3 dB) safe area to hazardous area: band width with 1 VSS signal 0.3 ... 7.5 kHz (-3 dB) |
| Settling time | 200 µs |
| Display elements | LED |
| Labeling | space for labeling at the front |
| Dimensions | 20 x 124 x 115 mm (0.8 x 4.9 x 4.5 inch) |
| Connection | screw terminals |
| Mounting | on 35 mm DIN mounting rail |
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) |
| Degree of protection | IP20 |
| Mass | approx. 200 g |
Ask for the Pricing of P&F Analog Output Transmitter Power Supplies KFD2-STC5-Ex2 at unbeatable prices. Detailed Specifications of KFD2-STC5-Ex2, features Analog input with 4 ... 20 mA range, SIL 2 and SC 3 ratings. Operating on 18 ... 30 V DC it consumes ≤ 1.4 W at maximum load. The field side connects via input connection, terminals 1+, 2-, 3; 4+, 5-, 6, supporting up to 0 ... 600 Ω. The control side includes terminals 7+, 8-, 9-; 10+, 11-, 12- (sink), terminals 7-, 8+, 9+; 10-, 11+, 12+ (source). It features a 200 µs settling time, screw terminals, and LED indicators. The unit measures 20 x 124 x 115 mm (0.8 x 4.9 x 4.5 inch), mounts on a 35mm DIN rail, and operates between -20 ... 60 °C (-4 ... 140 °F). With a an IP20 rating and approximately approx. 200 g weight, it ensures reliable performance. It's Time to get a Quote for your requirement of P&F Analog Output Transmitter Power Supplies. Choose us for unparalleled pricing and support over other Dealers & Distributors.
