P&F Diffuse Mode Sensors
ML100-8-1000-RT/95/103

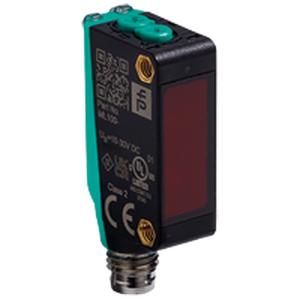

Challaturu provides the Pepperl Fuchs Photoelectric Switch ML100-8-1000-RT/95/103 Photoelectric Switch, which is an ideal option if you require a plastic-housed Diffuse mode sensor with an adjustable detection range of 1000 mm, red light, light/dark on functionality, and an M8 Connector.
ML100-8-1000-RT/95/103 Technical Specifications:
| Type | Diffuse mode sensor |
| Detection range | 0 … 1000 mm |
| Light type | modulated visible red light |
| Light source | LED |
| Operating voltage | 10 … 30 V DC |
| Signal output | 1 PNP output, short-circuit protected, reverse polarity protected, open collector |
| Switching type | The switching type of the sensor is adjustable. The default setting is: light-on |
| Response time | 0.5 ms |
| Switching frequency | 1000 Hz |
| Ambient temperature | -30 … 60 °C (-22 … 140 °F) |
| Degree of protection | IP67 |
| Connection | plug M8 x 1 , 4-pin |
| Operating voltage | 10 … 30 V DC |
Product Documentation: ML100-8-1000-RT/95/103
Related Products: ML100-8-1000-RT/95/103
OBT300-R100-2EP-IO-V31-L
Type: Triangulation PhotoSensor, Detection range: 7 … 300 mm, Light source: Laser diode, modulated visible red light, Operating voltage: 10 … 30 V DC, Switching type: Light-on/dark-on electrically switchable, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 1650 Hz, Response time: 300 µs, Housing (WxHxD): 11 mm x 44.5 mm x 21.5 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: M8 x 1 connector, 4-pin, Housing material: PC (Polycarbonate).
ML100-8-H-350-RT/103/115
Type: Background suppression PhotoSensor, Detection range: 5 … 350 mm, Light source: LED, modulated visible red light, Operating voltage: 10 … 30 V DC, Switching type: Adjustable, default setting: light-on, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate), Cable Length: 2 m.
OBT500-18GM60-E5
Type: Diffuse Type PhotoSensor, Detection range: 0 … 500 mm, Light source: IRED (Infrared), 880 nm, Operating voltage: 10 … 30 V DC, Switching type: Light/dark-on, electrically switchable, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 500 Hz, Response time: 1 ms, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: Brass, nickel-plated, Cable length: 2 m.
OBT200-18GM60-E5-V1
Type: Diffuse mode Photosensor, Detection range: 0 … 200 mm, Light source: IRED (Infrared Emitting Diode), 880 nm, Operating voltage: 10 … 30 V DC, class 2, Switching type: Light/dark-on, electrically switchable, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching voltage: Max. 30 V DC, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): Not specified, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Brass, nickel-plated.
OBS4000-18GM60-E5-V1
Type: Reflective Photo Sensor, Detection range: 0 … 4 m, Light source: LED (modulated visible red light, 660 nm), Operating voltage: 10 … 30 V DC (class 2), Switching type: Light/dark on electrically switchable, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 500 Hz, Response time: 1 ms, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Brass, nickel-plated.
ML100-55/102/115
Type:Retroreflective sensor, Detection range: 0 … 5 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default setting: light-on), Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate), Cable Length: 2 m.
OBR2500-12GM40-E5-V1
Type:Retroreflective Photosensor, Detection range: 0 … 2500 mm, Light source: LED, red, 640 nm, Operating voltage: 10 … 30 V DC, class 2, Switching type: Light/dark on, electrically switchable, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: ≤ 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): M12 threaded housing design, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Brass, nickel-plated.
ML100-8-H-100-RT/103/115
Type:Background suppression sensor, Detection range: 5 … 100 mm, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default setting: light-on), Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate), Cable Length: 2 m.
RL29-8-2000/59/73c/136
Type:Diffuse mode sensor, Detection range: 0 … 2000 mm, Light source: LED (640 nm), Operating voltage: 10 … 30 V DC, class 2, Switching type: Dark-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, Switching frequency: 125 Hz, Response time: 4 ms, Housing (WxHxD): 25.8 mm x 88 mm x 54.3 mm, Degree of protection: IP65, Connection: Plastic connector M12 x 1, 4-pin, Housing material: Plastic ABS.
ML100-55-G-103-115
Type:Retroreflective sensor, Detection range: 0 … 5 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default setting: light-on), Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate), Cable length: 2 m.
M100/MV100-RT/76a/95/103
Type:Thru-beam sensor, Detection range: 0 … 10 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Light/dark on (adjustable), Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: M8 plug, 4-pin, Housing material: PC (Polycarbonate).
RL28-8-H-2000-IR/105/110
Type:Background suppression sensor, Detection range: 20 … 2000 mm, Light source: IRED (Infrared), Operating voltage: 10 … 30 V DC, Switching type: Light/dark on switchable, Signal output: 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected, Switching frequency: 250 Hz, Response time: 2 ms, Housing (WxHxD): 25.8 mm x 88 mm x 54.3 mm, Degree of protection: IP67, Connection: 5-pin, M12 x 1 connector, Housing material: Plastic ABS.
OBS4000-18GM60-E5-V1
Type:Retroreflective sensor, Detection range: 0 … 4 m, Light source: LED (modulated visible red light, 660 nm), Operating voltage: 10 … 30 V DC (Class 2), Switching type: Light/dark on electrically switchable, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): Not specified, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Brass, nickel-plated.
OBT50-R2-E2
Type:Triangulation sensor, Detection range: 3 … 50 mm, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, class 2, Switching type: NO contact / light on, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: Approx. 800 Hz, Response time: 600 µs, ,Housing (WxHxD): 7.5 mm x 24 mm x 11.2 mm ,Degree of protection: IP67 Connection: 2 m fixed cable, Housing material: PC/ABS and TPU, Cable Length: 2 m.
GLV18-55/73/120
Type:Retroreflective sensor, Detection range: 0 … 4 m, Light source: LED (modulated visible red light, 640 nm), ,Operating voltage: 10 … 30 V DC, Switching type: Light/dark on, Signal output: 2 PNP, complementary, short-circuit protected, open collectors, Switching frequency: 500 Hz, Response time: ≤ 1 ms, Housing (WxHxD): N/A (not provided in the information), Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: PC (Polycarbonate).
OBT300-R103-2EP-IO-0-3M-V1
Type:Triangulation sensor, Detection range: 5 … 300 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: C/Q – Pin4: NPN normally open / light-on, PNP normally closed / dark-on, IO-Link / Q – Pin2: NPN normally closed / dark-on, PNP normally open / light-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 15 mm x 36.5 mm x 26.7 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: 300 mm fixed cable with M12 x 1, 4-pin connector, Housing material: PC (Polycarbonate), Cable Length: 0.3 m.
GLV18-8-450/73/120
Type:Diffuse mode sensor, Detection range: 50 … 450 mm adjustable, Light source: LED (modulated visible red light, 640 nm), Operating voltage: 10 … 30 V DC, Switching type: Light/dark on, Signal output: 2 PNP outputs, complementary, short-circuit protected, open collectors, Switching frequency: 500 Hz, Response time: ≤ 1 ms, Housing (WxHxD): M18 threaded housing design, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: PC (Polycarbonate).
OBT650-R200-2EP-IO-V1
Type:Triangulation sensor, Detection range: 10 … 650 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: C/Q – Pin4: NPN normally open / light-on, PNP normally closed / dark-on, IO-Link / Q – Pin2: NPN normally closed / dark-on, PNP normally open / light-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 15 mm x 50.6 mm x 41.7 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: 4-pin, M12 x 1 connector, 90° rotatable, Housing material: PC (Polycarbonate).
OBG5000-R100-2EP-IO
Type:Retroreflective sensor, Detection range: 0 … 3.5 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: The switching type of the sensor is adjustable. The default setting is:C/Q – BK: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 500 Hz, Housing (WxHxD): 11 mm x 37.1 mm x 21.5 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate), Cable Length: 2 m.
ML100-55-G/102/115
Type:Retroreflective sensor, Detection range: 0 … 2.5 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default setting: light-on), Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate), Cable Length: 2 m.
The Pepperl Fuchs ML100-8-1000-RT/95/103 Photoelectric Sensor is a Diffuse mode sensor designed with a plastic housing and an adjustable detection range of 0 to 1000 mm. It utilizes modulated visible red light emitted from an LED light source. The operating voltage range is 10 to 30 V DC, and it features a 1 PNP output with short-circuit protection, reverse polarity protection, and an open collector.
The switching type is adjustable, with a default setting of light-on. It has a fast response time of 0.5 ms and a high switching frequency of 1000 Hz. The device can operate in ambient temperatures ranging from -30 to 60 °C (-22 to 140 °F) and has an IP67 degree of protection. It can be connected using an M8 x 1, 4-pin plug. Additionally, this device can be classified as a Through Beam Photoelectric Sensor.
You can check P&F Diffuse mode sensor with connector type.
