Pepperl Fuchs Photo Sensors

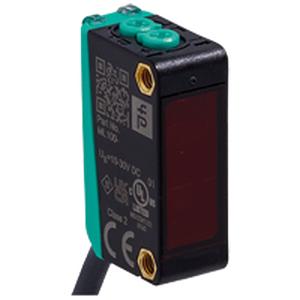

ML100-8-H-100-RT/103/115
if you’re in need of a P&F photo sensor with a PNP output and a detection range of 100mm, Cable type? Challaturu provides the Pepperl Fuchs ML100-8-H-100-RT/103/115 sensor to meet your industrial needs
ML100-8-H-100-RT/103/115 Technical Specifications:
| Detection range | 5 … 100 mm | |
| Detection range min. | 5 … 25 mm | |
| Detection range max. | 5 … 100 mm | |
| Adjustment range | 25 … 100 mm | |
| Reference target | standard white, 100 mm x 100 mm | |
| Light source | LED | |
| Operation indicator | LED green: power on | |
| Light type | modulated visible red light | |
| Response time | 1 ms | |
| Operating voltage | 10 … 30 V DC | |
| Switching frequency | 1000 Hz | |
| Switching type | The switching type of the sensor is adjustable. The default setting is: light-on | |
| Signal output | 1 PNP output, short-circuit protected, reverse polarity protected, open collector | |
| Ambient temperature | -30 … 60 °C (-22 … 140 °F) | |
| Degree of protection | IP67 | |
| Connection | 2m Fixed Cable | |
Product Documentation: ML100-8-H-100-RT/103/115
Related Products: ML100-8-H-100-RT/103/115
OBT30-R2F-E2
Type: Triangulation Sensor, Detection range: 1 … 30 mm, Light source: LED (modulated visible red light, 630 nm), Operating voltage: 10 … 30 V DC, Switching type: NO contact / light-on, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: Approx. 1 kHz, Response time: 500 µs, Housing (WxHxD): 12 mm x 25.5 mm x 4.1 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate) and Stainless steel, Cable Length: 2 m.
OBT500-18GM60-E5-V1
Type: Diffuse mode Photosensor, Detection range: 0 … 500 mm, Light source: IRED (Infrared Emitting Diode), 880 nm, Operating voltage: 10 … 30 V DC, class 2, Switching type: Light/dark-on, electrically switchable, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching voltage: Max. 30 V DC, Switching current: Max. 100 mA, Voltage drop: ≤ 2.5 V, Switching frequency: 500 Hz, Response time: 1 ms, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Brass, nickel-plated.
OBT200-18GM60-E5-V1
Type: Diffuse mode Photosensor, Detection range: 0 … 200 mm, Light source: IRED (Infrared Emitting Diode), 880 nm, Operating voltage: 10 … 30 V DC, class 2, Switching type: Light/dark-on, electrically switchable, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching voltage: Max. 30 V DC, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): Not specified, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Brass, nickel-plated.
OBT350-R100-2EP-IO-V31
Type: Triangulation sensor, Detection range: 5 … 350 mm, Light source: LED, modulated visible red light, Operating voltage: 10 … 30 V DC, Switching type: Adjustable switching type, default setting: light-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 11 mm x 44.5 mm x 21.5 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: M8 x 1 connector, 4-pin, Housing material: PC (Polycarbonate).
GLV18-8-450/115/120
Type: Diffuse photoelectric sensor, Detection range: 50 … 450 mm adjustable, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: Light/dark-on, Signal output: 2 PNP, complementary, short-circuit protected, open collectors, Switching frequency: 500 Hz, Response time: ≤ 1 ms, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC, Cable Length: 2 m.
OBD300-12GM40-E5-V1
Type:Diffuse mode Photosensor, Detection range: 0 … 300 mm, Light source: LED, red, 640 nm, Operating voltage: 10 … 30 V DC, class 2, Switching type: Light/dark on, electrically switchable, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: ≤ 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): M12 threaded housing design, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Brass, nickel-plated.
RLK31-8-1200-RT/31/115
Type:Diffuse mode Photosensor, Detection range: 0 … 1200 mm adjustable, Light source: LED, modulated visible red light, 630 nm, Operating voltage: 24 … 240 V AC, 12 … 240 V DC, Switching type: Light-on, Signal output: Relay, 1 alternator, Switching frequency: 20 Hz, Response time: ≤ 25 ms, Housing (WxHxD): 18 mm x 62 mm x 35 mm, Degree of protection: IP67, Connection: 2 m fixed cable, 5-wire, Housing material: Polycarbonate, Cable Length: 2 m.
RL31-54/73c/136
Type:Retroreflective Sensor, Detection range: 0 … 9000 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: Dark-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, Switching frequency: ≤ 500 Hz, Response time: ≤ 1 ms, Housing (WxHxD): 18 mm x 62 mm x 35 mm, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Plastic.
RLK29-55/59/116
Type:Retroreflective Sensor, Detection range: 0 … 12 m, Light source: LED, Operating voltage: 24 … 230 V AC/DC, Switching type: Dark-on, Signal output: Relay, 1 alternator, Switching frequency: 7 Hz, Response time: 50 ms, Housing (WxHxD): Not specified, Degree of protection: IP67, Connection: Terminal compartment, Housing material: Plastic ABS, flame resistant.
RL28-8-H-2000-IR/47/105
Type:Background suppression sensor, Detection range: 20 … 2000 mm, Light source: IRED (Infrared), Operating voltage: 10 … 30 V DC, Switching type: Light/dark on switchable, Signal output: 2 PNP, complementary, short-circuit protected, reverse polarity protected, open collectors, Switching frequency: 250 Hz, Response time: 2 ms, Housing (WxHxD): 25.8 mm x 88 mm x 54.3 mm, Degree of protection: IP67, Connection: 5-pin, M12 x 1 connector, Housing material: Plastic ABS.
RL31-8-1200-RT/73c/136
Type:Diffuse mode Photosensor, Detection range: 0 … 1200 mm adjustable, Light source: LED, modulated visible red light, 630 nm, Operating voltage: 10 … 30 V DC, Switching type: Light-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, Switching frequency: ≤ 500 Hz, Response time: ≤ 1 ms, Housing (WxHxD): 18 mm x 62 mm x 35 mm, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Polycarbonate.
RLK28-8-H-2000-IR-Z/31/116
Type:Background suppression sensor, Detection range: 20 … 2000 mm, Light source: IRED (Infrared), Operating voltage: 12 … 240 V AC/DC, Switching type: Light/dark on, switchable, Signal output: Relay, 1 alternator, Switching frequency: 25 Hz, Response time: 20 ms, Housing (WxHxD): 25.8 mm x 88 mm x 65.5 mm, Degree of protection: IP67, Connection: Terminal compartment with 8 spring-loaded terminals, Housing material: Plastic ABS.
RL28-8-H-2000-IR/47/105
Type:Background suppression sensor, Detection range: 20 … 2000 mm, Light source: IRED (Infrared), Operating voltage: 10 … 30 V DC, Switching type: Light/dark on switchable, Signal output: 2 PNP, complementary, short-circuit protected, reverse polarity protected, open collectors, Switching frequency: 250 Hz, Response time: 2 ms, Housing (WxHxD): 25.8 mm x 88 mm x 54.3 mm, Degree of protection: IP67, Connection: 5-pin, M12 x 1 connector, Housing material: Plastic ABS.
ML100-55/95/102
Type:Retroreflective sensor, Detection range: 0 … 5 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default setting: light-on), Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: M8 plug, 4-pin, Housing material: PC (Polycarbonate).
ML100-55/102/115
Type:Retroreflective sensor, Detection range: 0 … 5 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default setting: light-on), Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate), Cable Length: 2 m.
OBT300-R200-2EP-IO-V1
Type:Triangulation sensor, Detection range: 30 … 300 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: C/Q – Pin4: NPN normally open / light-on, PNP normally closed / dark-on, IO-Link / Q – Pin2: NPN normally closed / dark-on, PNP normally open / light-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 15 mm x 50.6 mm x 41.7 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: 4-pin, M12 x 1 connector, 90° rotatable, Housing material: PC (Polycarbonate).
OBT300-R103-2EP-IO-0-3M-V1
Type:Triangulation sensor, Detection range: 5 … 300 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: C/Q – Pin4: NPN normally open / light-on, PNP normally closed / dark-on, IO-Link / Q – Pin2: NPN normally closed / dark-on, PNP normally open / light-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 15 mm x 36.5 mm x 26.7 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: 300 mm fixed cable with M12 x 1, 4-pin connector, Housing material: PC (Polycarbonate), Cable Length: 0.3 m.
OBG5000-R102-2EP-IO-V31
Type:Retroreflective sensor , Detection range: 0 … 3.5 m, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: Adjustable (C/Q – Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link / Q – Pin2: NPN normally closed / light-on, PNP normally open / dark-on), Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 13.9 mm x 41.4 mm x 18.3 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: M8 x 1 connector, 4-pin, Housing material: PC (Polycarbonate).
OBR7500-R100-2EP-IO-V31
Type:Retroreflective sensor, Detection range: 0 … 7.5 m, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: Adjustable (C/Q – Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link / Q – Pin2: NPN normally closed / light-on, PNP normally open / dark-on), Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 44.5 mm x 21.5 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: M8 x 1 connector, 4-pin, Housing material: PC (Polycarbonate).
OBR12M-R100-2EP-IO-V31-L
Type:Laser retroreflective sensor, Detection range: 0 … 12 m, Light source: Laser diode, Operating voltage: 10 … 30 V DC, Switching type: Adjustable (C/Q – Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link / Q – Pin2: NPN normally closed / light-on, PNP normally open / dark-on), Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 2000 Hz, Response time: 250 µs, Housing (WxHxD): 11 mm x 44.5 mm x 21.5 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: M8 x 1 connector, 4-pin, Housing material: PC (Polycarbonate).
The Pepperl Fuchs ML100-8-H-100-RT/103/115 sensor has a detection range of 5 to 350 mm, with a minimum range of 5 to 30 mm and an adjustment range of 30 to 350 mm. It uses a standard white, 100 mm x 100 mm reference target and features an LED light source with modulated visible red light.
The sensor has a response time of 1 ms and can operate on an input voltage of 10 to 30 V DC. The switching type is adjustable and the default setting is light-on. It has 1 PNP output that is short-circuit protected, reverse polarity protected, and open collector.
The Photoelectric switch sensor operates at a switching frequency of 1000 Hz and can withstand an ambient temperature range of -30 to 60 °C (-22 to 140 °F). It has a degree of protection of IP67 and is connected via a 2m fixed cable.
You can check P&F Background suppression sensor with cable type.
