P&F Diffuse Mode Sensors
ML17-8-450-115-136

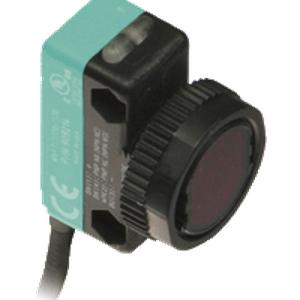

Challaturu provides the Pepperl Fuchs Photoelectric Switch ML17-8-450-115-136 Photoelectric Switch, which is an ideal option if you require a plastic-housed Diffuse mode sensor with an adjustable detection range of 1000 mm, red light, light/dark on functionality, and an M8 Connector.
ML17-8-450-115-136 Technical Specifications:
| Type | Diffuse mode sensor |
| Adjustment Range | 60 … 450 mm |
| Detection range | 10 … 450 mm |
| Light type | modulated infrared light, 950 nm |
| Light source | IRED |
| Switching voltage | max. 30 V DC |
| Signal output | 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected |
| Switching type | light/dark on |
| Response time | ≤ 1 ms |
| Switching frequency | 500 Hz |
| Ambient temperature | -20 … 55 °C (-4 … 131 °F) |
| Degree of protection | IP67 |
| Connection | 2 m PVC cable |
| Operating voltage | 10 … 30 V DC, class 2 |
Product Documentation: ML17-8-450-115-136
Related Products: ML17-8-450-115-136
OBT200-18GM60-E5
Type: Diffuse-type Sensor, Detection range: 0 … 200 mm, Light source: IRED (Infrared), 880 nm, Operating voltage: 10 … 30 V DC, Switching type: Light/dark-on, electrically switchable, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 500 Hz, Response time: 1 ms, Housing dimensions (WxHxD): Not specified, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: Brass, nickel-plated, Cable length: 2 m.
OBT500-18GM60-E5-V1
Type: Diffuse mode Photosensor, Detection range: 0 … 500 mm, Light source: IRED (Infrared Emitting Diode), 880 nm, Operating voltage: 10 … 30 V DC, class 2, Switching type: Light/dark-on, electrically switchable, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching voltage: Max. 30 V DC, Switching current: Max. 100 mA, Voltage drop: ≤ 2.5 V, Switching frequency: 500 Hz, Response time: 1 ms, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Brass, nickel-plated.
OBT200-18GM60-E5-V1
Type: Diffuse mode Photosensor, Detection range: 0 … 200 mm, Light source: IRED (Infrared Emitting Diode), 880 nm, Operating voltage: 10 … 30 V DC, class 2, Switching type: Light/dark-on, electrically switchable, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching voltage: Max. 30 V DC, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): Not specified, Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: Brass, nickel-plated.
OBP120-R100-2EP-IO-V31-L
Type: Trigger Marks Sensor PhotoSensor, Detection range: 25 … 120 mm, Light source: Laser diode, modulated visible red light, Operating voltage: 10 … 30 V DC, Switching type: Adjustable switching type, default setting: light-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 3300 Hz, Response time: 125 µs, Housing (WxHxD): 11 mm x 44.5 mm x 21.5 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: M8 x 1 connector, 4-pin, Housing material: PC (Polycarbonate).
OBT500-18GM60-E5
Type: Diffuse Type PhotoSensor, Detection range: 0 … 500 mm, Light source: IRED (Infrared), 880 nm, Operating voltage: 10 … 30 V DC, Switching type: Light/dark-on, electrically switchable, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 500 Hz, Response time: 1 ms, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: Brass, nickel-plated, Cable length: 2 m.
ML100-55-G/102/115
Type:Retroreflective sensor, Detection range: 0 … 2.5 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default setting: light-on), Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate), Cable Length: 2 m.
ML100-55/102/115
Type:Retroreflective sensor, Detection range: 0 … 5 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default setting: light-on), Signal output: 1 NPN output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate), Cable Length: 2 m.
ML100-8-H-100-RT/103/115
Type:Background suppression sensor, Detection range: 5 … 100 mm, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default setting: light-on), Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: 2 m fixed cable, Housing material: PC (Polycarbonate), Cable Length: 2 m.
GLV18-55/73/120
Type:Retroreflective sensor, Detection range: 0 … 4 m, Light source: LED (modulated visible red light, 640 nm), ,Operating voltage: 10 … 30 V DC, Switching type: Light/dark on, Signal output: 2 PNP, complementary, short-circuit protected, open collectors, Switching frequency: 500 Hz, Response time: ≤ 1 ms, Housing (WxHxD): N/A (not provided in the information), Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: PC (Polycarbonate).
GD18/GV18/73/120
Type:Thru-beam sensor, Detection range: 0 … 20 m, Light source: LED (modulated visible red light, 640 nm), Operating voltage: 10 … 30 V DC, Switching type: Light/dark on, Signal output: 2 PNP, complementary, short-circuit protected, open collectors, Switching frequency: 500 Hz, Response time: ≤ 1 ms, Housing (WxHxD): N/A (not provided in the information), Degree of protection: IP67, Connection: 4-pin, M12 x 1 connector, Housing material: PC (Polycarbonate).
M100/MV100-RT/76a/95/103
Type:Thru-beam sensor, Detection range: 0 … 10 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Light/dark on (adjustable), Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: M8 plug, 4-pin, Housing material: PC (Polycarbonate).
ML100-55/95/103
Type:Retroreflective sensor, Detection range: 0 … 5 m, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Adjustable (default setting: light-on), Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: Connector M8 x 1, 4-pin, Housing material: PC (Polycarbonate).
OBT50-R2-E2
Type:Triangulation sensor, Detection range: 3 … 50 mm, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, class 2, Switching type: NO contact / light on, Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: Approx. 800 Hz, Response time: 600 µs, ,Housing (WxHxD): 7.5 mm x 24 mm x 11.2 mm ,Degree of protection: IP67 Connection: 2 m fixed cable, Housing material: PC/ABS and TPU, Cable Length: 2 m.
OBD1000-R100-2EP-IO-V31
Type:Diffuse mode sensor, Detection range: 2 … 1000 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: Adjustable (C/Q – Pin4: NPN normally open / light-on, PNP normally closed / dark-on, IO-Link / Q – Pin2: NPN normally closed / dark-on, PNP normally open / light-on), Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 44.5 mm x 21.5 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: M8 x 1 connector, 4-pin, Housing material: PC (Polycarbonate).
OBT40-R102-2P1-IO-V31
Type:Triangulation sensor, Detection range: 10 … 40 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: C/Q – Pin4: NPN normally closed / dark-on, PNP normally open / light-on, IO-Link / Q – Pin2: NPN normally open / light-on, PNP normally closed / dark-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 13.9 mm x 31.9 mm x 18.3 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: M8 x 1 connector, 4-pin, Housing material: PC (Polycarbonate).
OBG5000-R102-2EP-IO-V31
Type:Retroreflective sensor , Detection range: 0 … 3.5 m, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: Adjustable (C/Q – Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link / Q – Pin2: NPN normally closed / light-on, PNP normally open / dark-on), Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 13.9 mm x 41.4 mm x 18.3 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: M8 x 1 connector, 4-pin, Housing material: PC (Polycarbonate).
OBR15M-R200-2EP-IO-V1
Type:Retroreflective sensor, Detection range: 0 … 15 m, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: C/Q – Pin4: NPN normally open / dark-on, PNP normally closed / light-on, IO-Link / Q – Pin2: NPN normally closed / light-on, PNP normally open / dark-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 15 mm x 50.6 mm x 41.7 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: 4-pin, M12 x 1 connector, 90° rotatable, Housing material: PC (Polycarbonate).
OBT650-R200-2EP-IO-V1
Type:Triangulation sensor, Detection range: 10 … 650 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: C/Q – Pin4: NPN normally open / light-on, PNP normally closed / dark-on, IO-Link / Q – Pin2: NPN normally closed / dark-on, PNP normally open / light-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 15 mm x 50.6 mm x 41.7 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: 4-pin, M12 x 1 connector, 90° rotatable, Housing material: PC (Polycarbonate).
OBT300-R200-2EP-IO-V1
Type:Triangulation sensor, Detection range: 30 … 300 mm, Light source: LED, Operating voltage: 10 … 30 V DC, Switching type: C/Q – Pin4: NPN normally open / light-on, PNP normally closed / dark-on, IO-Link / Q – Pin2: NPN normally closed / dark-on, PNP normally open / light-on, Signal output: 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected, overvoltage protected, Switching frequency: 500 Hz, Response time: 1 ms, Housing (WxHxD): 15 mm x 50.6 mm x 41.7 mm, Degree of protection: IP67 / IP69 / IP69K, Connection: 4-pin, M12 x 1 connector, 90° rotatable, Housing material: PC (Polycarbonate).
ML100-8-1000-RT/95/103
Type:Diffuse mode sensor, Detection range: 0 … 1000 mm, Light source: LED (modulated visible red light), Operating voltage: 10 … 30 V DC, Switching type: Light/dark on (adjustable), Signal output: 1 PNP output, short-circuit protected, reverse polarity protected, open collector, Switching frequency: 1000 Hz, Response time: 0.5 ms, Housing (WxHxD): 11 mm x 31 mm x 20 mm, Degree of protection: IP67, Connection: M8 plug, 4-pin, Housing material: PC (Polycarbonate).
The Pepperl+Fuchs Photo Sensor ML17-8-450-115-136 is a diffuse mode sensor that offers an adjustment range of 60 to 450 mm and a detection range of 10 to 450 mm. The sensor uses modulated infrared light with a wavelength of 950 nm, which is produced by an IRED light source.
The sensor’s switching voltage is limited to a maximum of 30 V DC, and it offers two push-pull (4 in 1) outputs that are short-circuit protected, reverse polarity protected, and overvoltage protected. The switching type of the sensor is light/dark on, and its response time is less than or equal to 1 ms.
The sensor has a switching frequency of 500 Hz, and it can operate in an ambient temperature range of -20 to 55 °C (-4 to 131 °F). The degree of protection offered by the sensor is IP67, and it comes with a 2 m PVC cable. The sensor operates on a voltage range of 10 to 30 V DC, which is classified as class 2.
You can check P&F Diffuse mode sensor with cable type.
