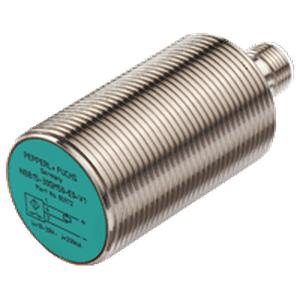

P&F Inductive Proximity Sensors NBB15-30GM50-E2-V1
The Technical Specifications of NBB15-30GM50-E2-V1
Sensor Head: M30
Switching function: Normally open (NO)
Output type: PNP
Rated operating distance: 15 mm
Installation: flush
Output type: 3-wire
Operating voltage: 10 … 30 V
Switching frequency: 0 … 200 Hz
Connection type: Connector plug M12
NBB15-30GM50-E2-V1 Technical Specifications:
Are you looking for M30 Inductive Proximity Sensor? IndMALL Automation offers all range of Pepperl Fuchs Proximity Sensors, As you required an M30 Sensor you can use NBB15 30GM50 E2 V1 with the technical specifications of Sensor head dia M30, Sensor sensing distance 15mm. Sensor output PNP, Switching function Normally Open (NO), Electrical Connection M12 connector Type, Sensor Length 50mm. Get a special discount.
| Switching function | Normally open (NO) | |
| Output type | PNP | |
| Rated operating distance | 15 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 12.15 mm ( -25 … 70 °C (-13 … 158 °F) ) 0 … 11.4 mm ( -40 … -25 °C (-40 … -13 °F) ) |
|
| Reduction factor rAl | 0.3 | |
| Reduction factor rCu | 0.3 | |
| Reduction factor r304 | 0.75 | |
| Output type | 3-wire | |
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 200 Hz | |
| Hysteresis | typ. 5% | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | ≤ 3 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 µA at 25 °C | |
| No-load supply current | ≤ 15 mA | |
| Switching state indicator | Multihole-LED, yellow | |
| Ambient temperature | -40 … 70 °C (-40 … 158 °F) | |
| Connection type | Connector plug M12 x 1 , 4-pin | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Degree of protection | IP67 | |
| MTTFd | 1058 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
Product Documentation: NBB15-30GM50-E2-V1
Here is the main technical specification of Pepperl Fuchs Inductive Proximity Sensor NBB15-30GM50-E2-V1: M30 Dia, Flush, PNP, 15mm Sensing, Normally Open, Connector type.
